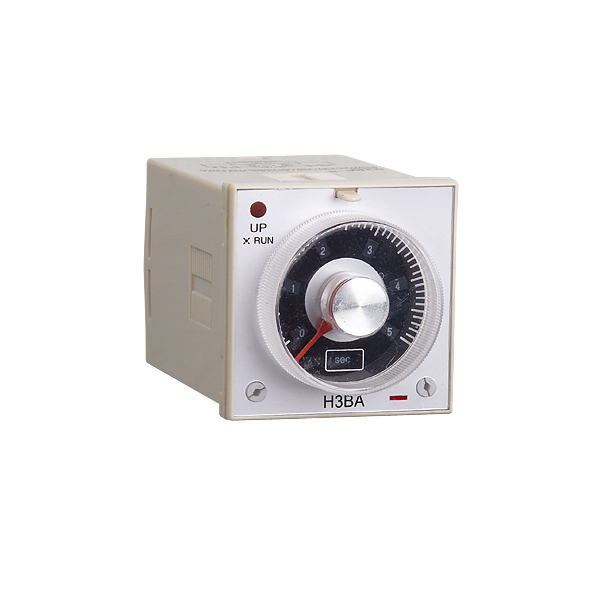

H3BA-11
CE
Winston/OEM
Made in China
Export standard carton box
PCS
10
3-15days,depend on order quantity
1
T/T
| Classification | Timer | Multi Range Timer | Multi Range Timer | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Specification Model | ST2P | ST3PA | H3BA-8/H3BA-11 | ||||||
| Dimension | 50H × 40W × 57.5D | 55H × 40.5W × 57.5D | 48H × 48W × 93.5D | ||||||
| Mounting & Socket | Surface(-N) | PF083A(E) | PF-083A(E) | PF113A(E) | PF083A PS-08 | ||||
| Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | US-11 | US-08 P3G-08 | |||||
| Full Timing Range | SEC: 1,3,6,10,12, 30,60 MIN: 3,6,10,12,30, 60 HR: 3,6,10,12,30 | A: 0.05-0.5s/5s/30s/3min B: 0.1-10s/60s/6mim C: 0.5-5s/50s/5min/30min D: 1-10s/100s/100min/60min E: 5-60s/10s/60min/6h F: 0.25-2min/20min/2h/12h G: 0.5-4min/40min/4h/24h | 0.1SEC~100HRS | ||||||
| Rated Voltage (V) | AC: 12,24,110,220(50/ 60Hz) DC: 12~24 | AC: 24,48,110,220 (50/60Hz) DC: 24,48 | 24 to 240 DC/AC AC: 24,48,110,220 DC: 12,24,48 | ||||||
| Indicator Operating | ON-UP Operating | ON-UP Operating | Time Operating Flicker | ||||||
| O/P Contact | Model | ST2P-E | ST3PA | ST3PC | H3BA | H3BA-8 | H3BA-8H | ||
| Time Limit 1C | 5A | 5A | 5A | ||||||
| Time Limit 2C | 5A | 5A | 5A | 5A | |||||
| Instantaneous 1C | 5A | 5A | 5A | ||||||
| Life | Mechanical | 5 × 107 Times | 5 × 107 Times | 107 Times | |||||
| Electrical | 105 Times | 105 Times | 105 Times | ||||||
| Accuracy | Repeat Error | ±2% max | ±2% max | ±2% max | |||||
| Setting Error | ±5% max | ±5% max | ±5% max | ||||||
| Voltage Error | ±5% max | ±5% max | ±5% max | ||||||
| Temp Error | ±2% max | ±2% max | ±2% max | ||||||
| Reset Time | 0.5 sec max | 0.5 sec max | 0.5 sec max | ||||||
| Consumed Power | 3VA | 3VA | 100~240VAC:10VA 12VDC,24~240VDC:1.5W | ||||||
| Ambient temperature | -10oC~+55oC | -10oC~+55oC | -10oC~+55oC | ||||||
| Ambient Huminity | 35~85% RH | 35~85% RH | 35~85% RH | ||||||
| Weight | 100g | 100g | 100g | ||||||
