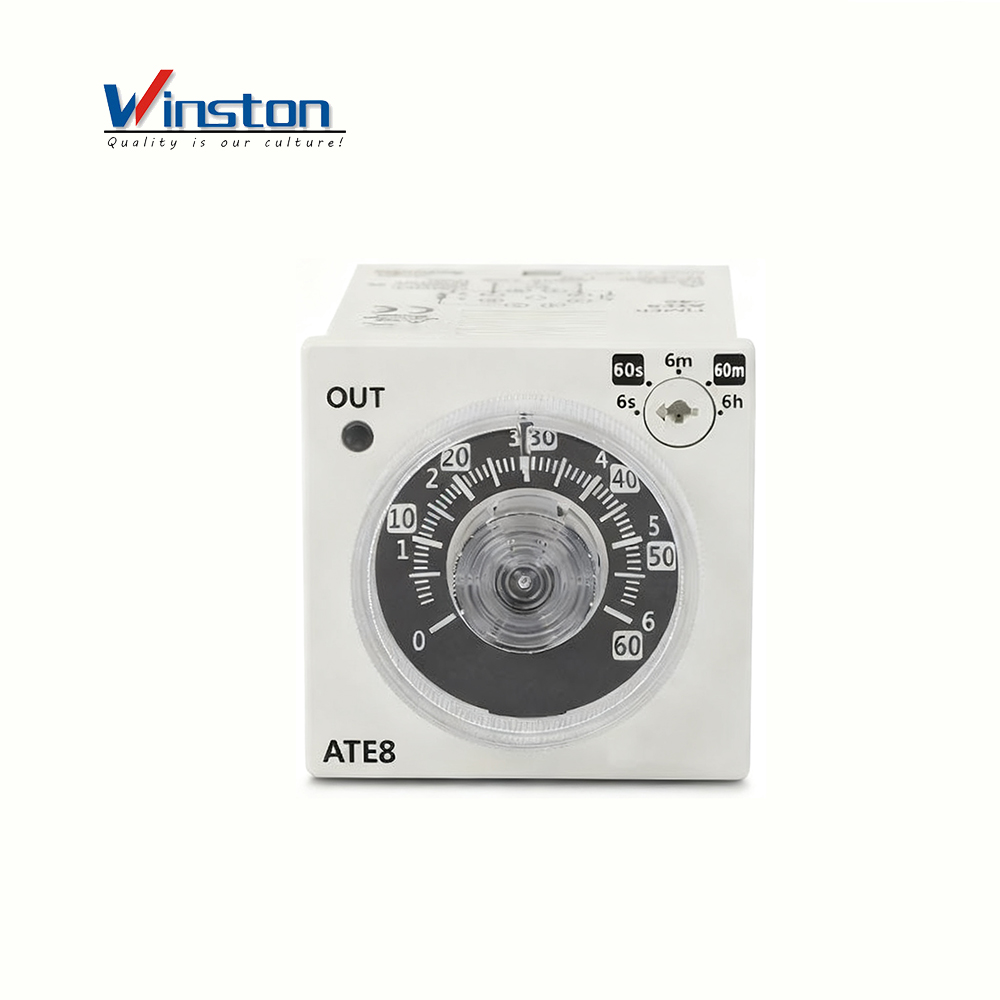

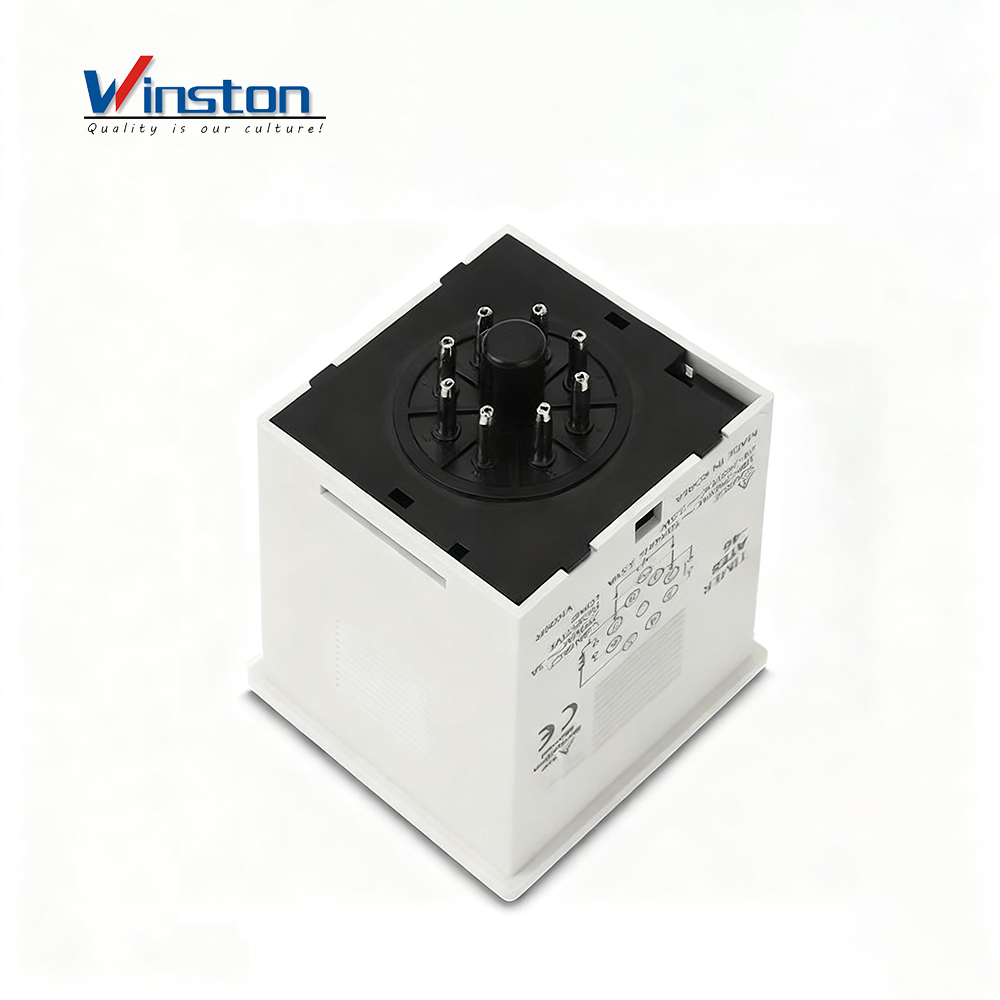

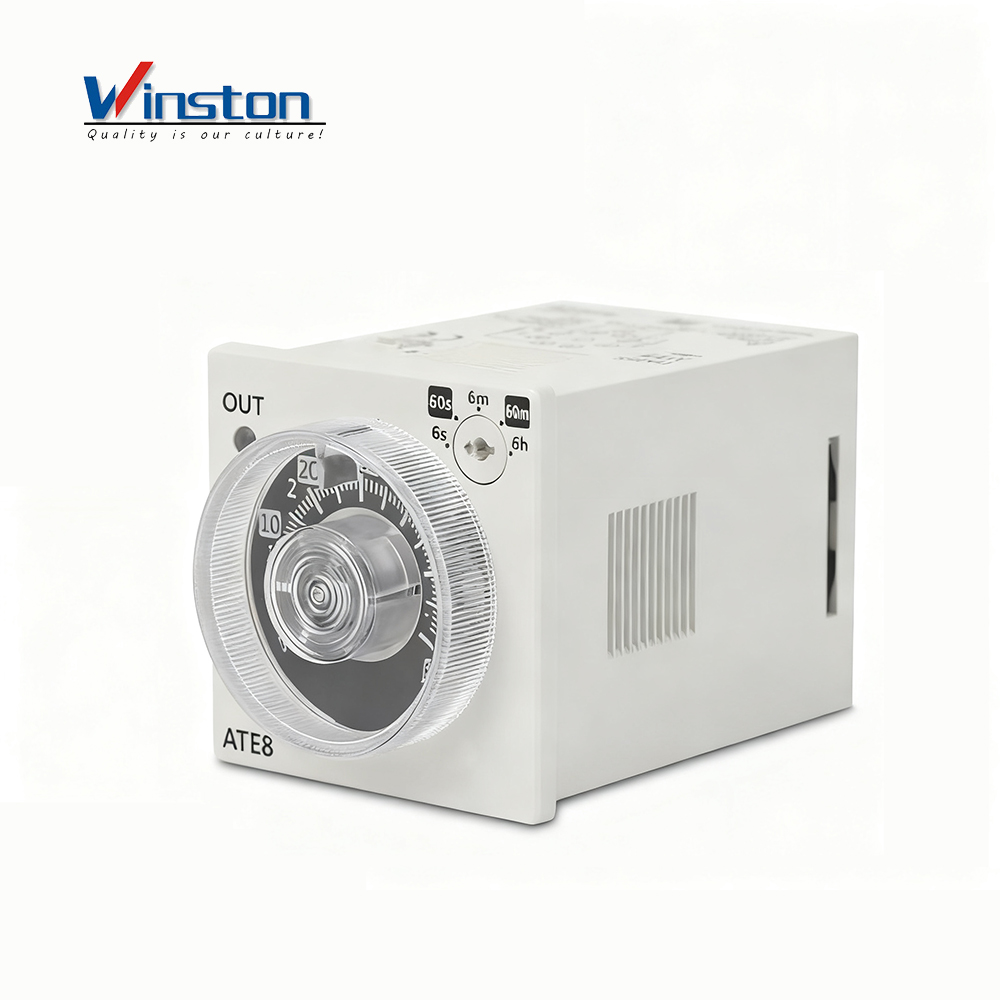

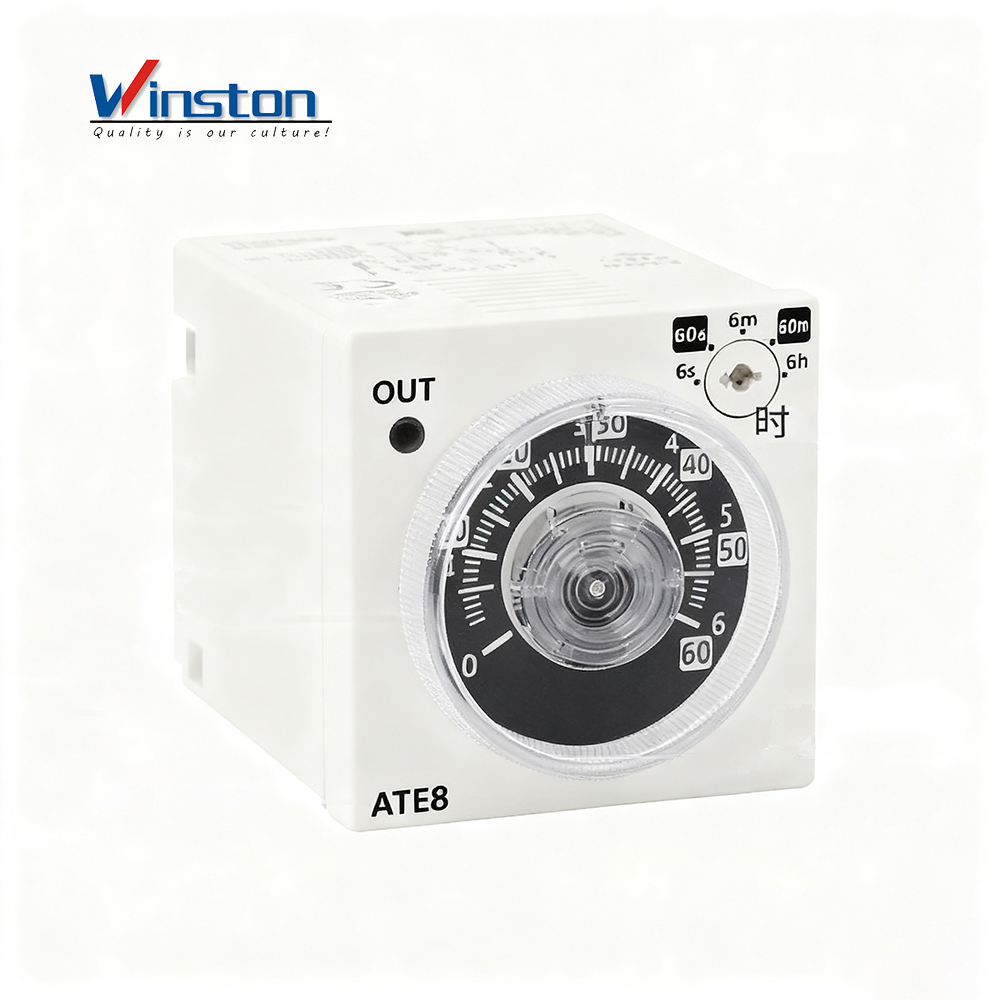

ATE8
Winston
Products Description
Welcome to explore the ATE8 Series Analog Timer, a high-performance power-on delay time relay engineered for precise time control in industrial automation systems. With its compact design, intuitive operation, and robust performance, it stands as an ideal choice for diverse timing applications.
Features
* Compact Standard Design: DIN W48 × H48 mm form factor, compatible with standard industrial control panels.
* Intuitive Time Setting: Analog dial with clear time scales (ranges like 1s–1h, 3s–3h, 6s–6h, 12s–24h) for quick, precise adjustments.
* Wide Voltage Compatibility: Supports 100–240 VAC (50/60 Hz) and 24–240 VDC, suitable for global industrial environments.
* Cost-Effective Reliability: Built with premium components for long service life and stable performance in harsh conditions.
* Diverse Configurations: Multiple models with varying time ranges and output types to match specific application needs.

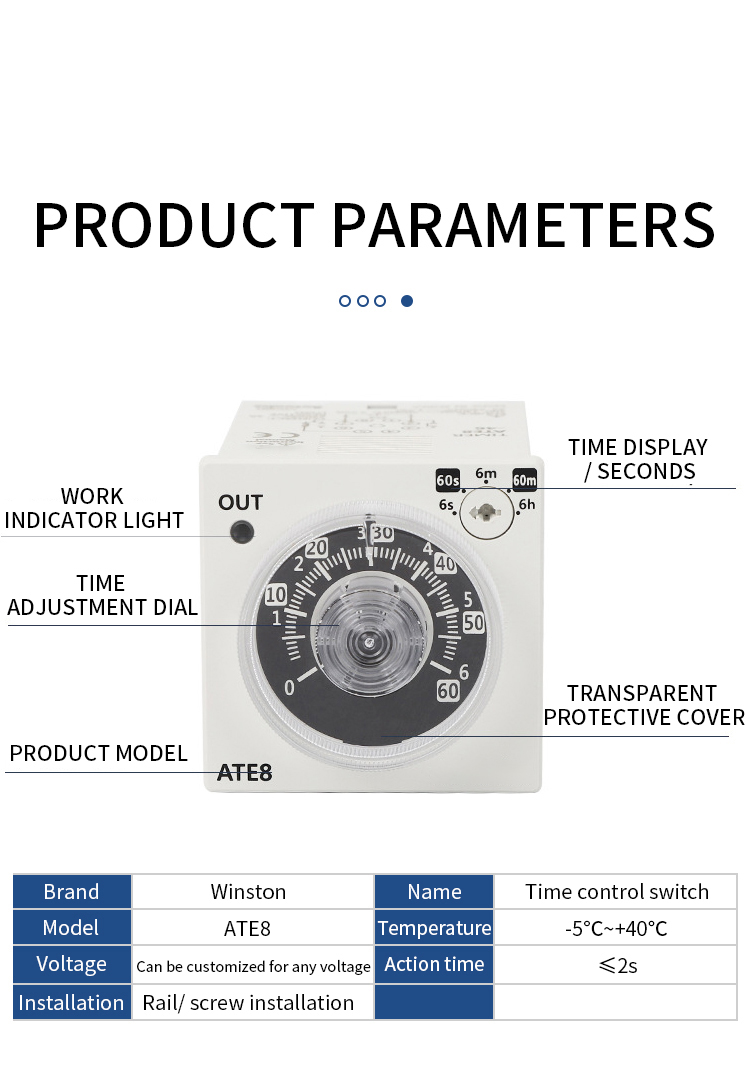

Technical parameter
| Model | ATE8-4* | ATE8-4*D | ATE8-4*E |
| Function | Power ON Delay | ||
| Return time | ≤ 200 ms | ||
| Time operation | Power ON Start | ||
| Control output | Relay | ||
| Contact type | Time limit SPDT (1c)+Instantaneous SPST(1a) | Time limit DPDT (2c) | Time limit SPDT (1c)+ Instantaneous SPDT(1c) |
| Contact capacity | 250VAC~ 3A,30 VDC= 3 A resistive load | ||
| Error | Repeat: ≤±0.3% ± 10 ms SET:≤士10% 士50 ms Voltage: ≤ ± 0.5% ± 10 ms Temp.:≤士2%± 10ms | ||
| Unit weight (packaged) | =75g(≈ 1222g) | ||
| Power supply | 100-240VAC~50/60Hz,24-240VDC= | ||
| Permissible voltage range | 90 to 110 % of rated woltage | ||
| Power consumption | AC:≤ 3.5WA DC:≤2W | ||
| Insulation resistive | ≥100Mo (500 Dc= megger) | ||
| Dielectric strength | Between the charping part and the case:3,000 VAC~ at50/60 Hzforl min | ||
| Noise immunity | + 2kV square-wave noise by noise simulator (pulse width l μs) | ||
| Vibration | 0.75 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 1 hour | ||
| Vibration (malfunction) | 0.5 mm double amplitude at frequency of 10 to 55 Hz in each X, Y, Z direction for 10 min | ||
| Shock | 300 m/s'(≈ 30 G) in each X,Y, Z direction for3 times | ||
| Shock (malfunction) | 100 m/s°(≈ 10 G) In each X, Y,Z direction for 3 times | ||
| Relay life cycle | Mechanical: ≥ 5,000,000 operations Electrical: ≥ 100,000 operations (250 WAC~ 3 A resistive load) | ||
| Ambient temperature | -10 to 55 °C, storage: -25 to 65 °C (no freezing or condensation) | ||
| Ambient humidity | 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation) | ||
| Protection rating | IP40 (front part, lEC standard) | ||

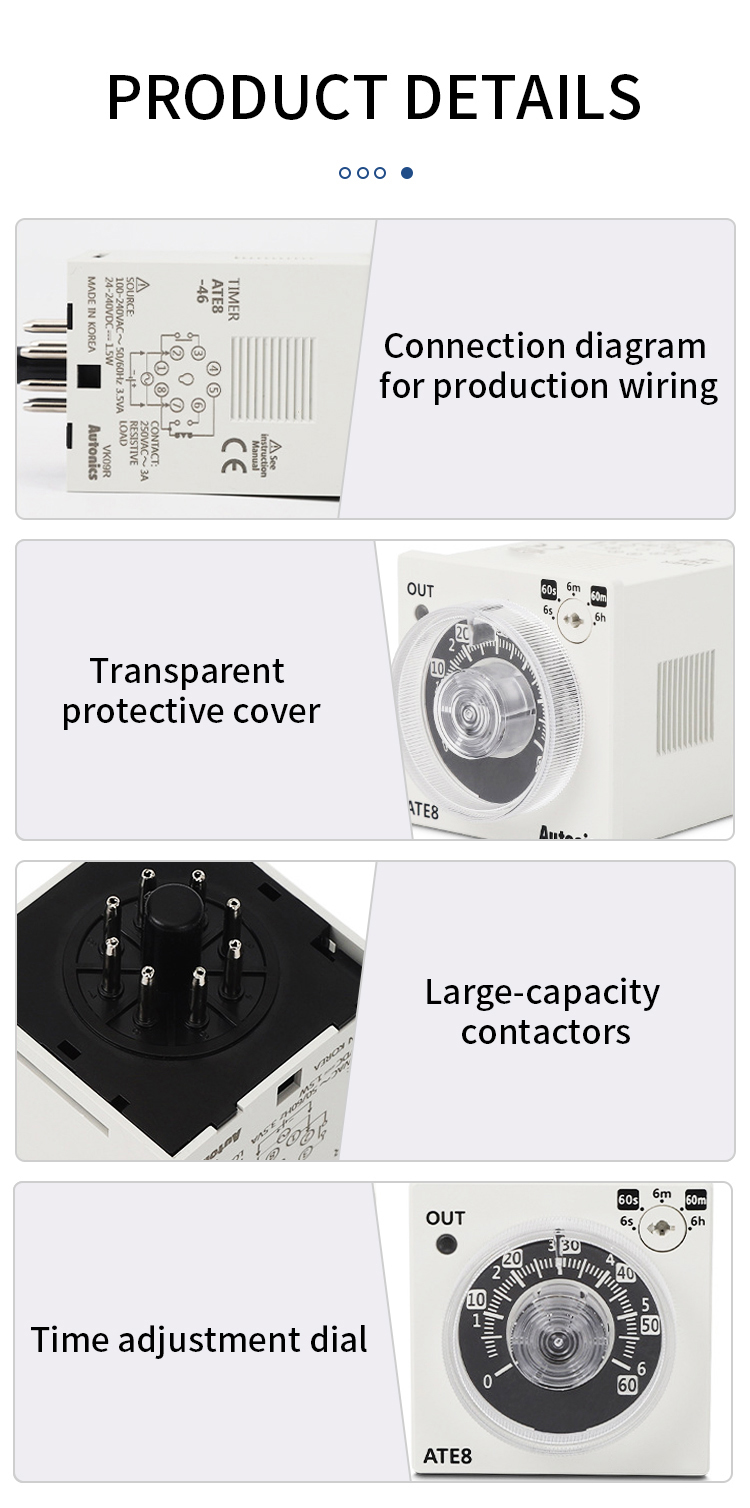

Main features
Application

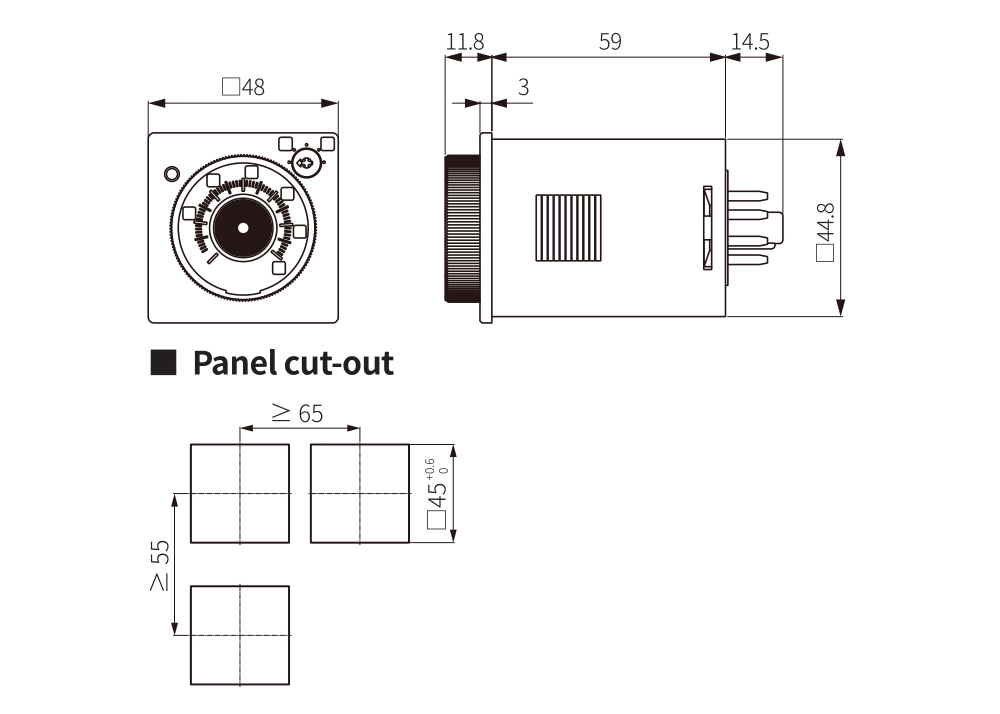

Dimension
