G16 industrial photoelectric sensor circuit

Availability:
Quantity:
  • G16

  • Winston

G16 industrial photoelectric sensor circuit

Principle of photoelectric switch

The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object,the beam receiver where by makes a judgment and reacts.

photoelectric switch

Application

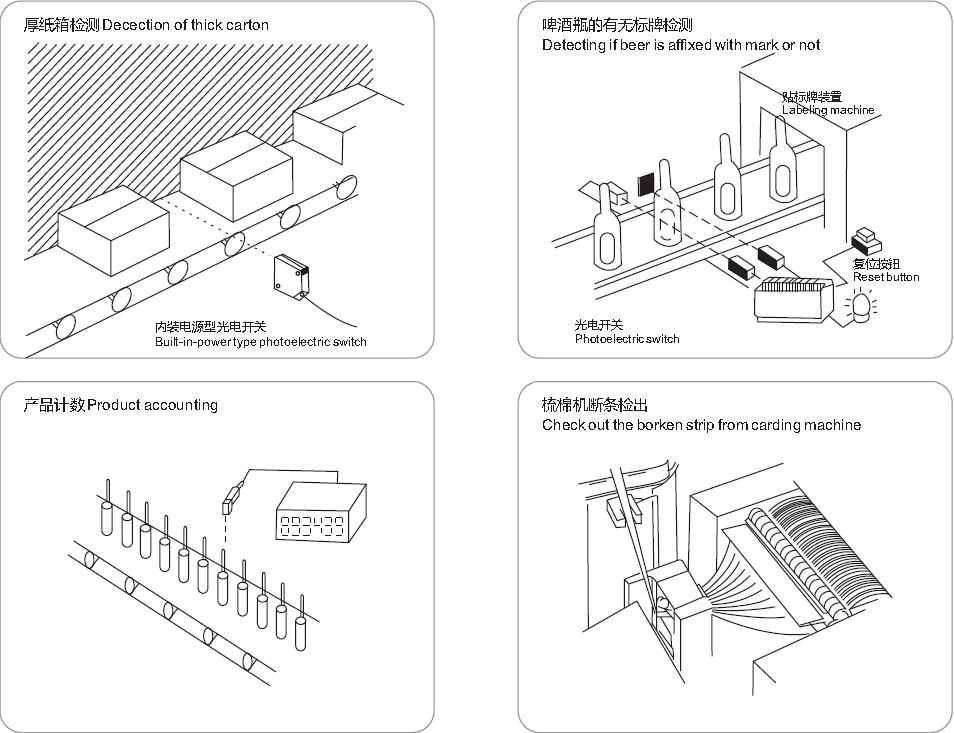

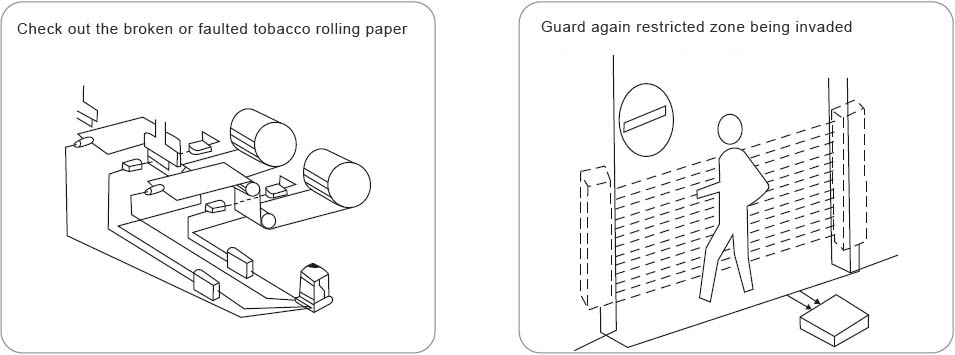

photoelectric applicaiton(2photoelectric applicaiton

 Model explanation of Photoelectric Sensor







 1. G: Photoelectric sensor
 2. Sub code No.(18, 50, 76.....)
 3. Operating voltage(2: 90-250VAC ;3: 10-30VDC; 4: 12-240VDC/24-240VAC; 5: Special voltage)
 4. Detection method( A: Diffuse type; B: Mirror reflex type; C: Through beam type)
 5. Detection distance (05: 5cm ; 10: 10cm; 30: 30cm; 101: 10m)
 6. Output method(N: NPN transistor output; P: PNP transistor output; J: Relay output; L: AC two-line output; S: NPN+PNP)
 7. Output status(A: NO; B: NC; C: NO+NC)
 8. Auxi function code(T1: Front delay; T2: Rear delay; Y: Oil proof; T: With connector; I: Special requirement)


 Technical Parameters:



       OVERALL DIMENSIONS
       Diffuse type        Detection distance        10cm
       10-30VDC        NPN        NO        G16-3A10NA
       NC        G16-3A10NB
       NO+NC        G16-3A10NC
       PNP        NO        G16-3A10PA
       90-250VAC        NC        G16-3A10PB
       NO+NC        G16-3A10PC
       SCR Contro Hable silicon        NO
       NC
       Relay output
       Retroreflective type        Detection distance        1m
       10-30VDC        NPN        NO        G16-3B1NA
       NC        G16-3B1NB
       NO+NC        G16-3B1NC
       PNP        NO        G16-3B1PA
       90-250VAC        NC        G16-3B1PB
       NO+NC        G16-3B1PC
       SCR Contro Hable silicon        NO
       NC
       Relay output
       Through beam        Detection distance        5m
       10-30VDC        NPN        NO        G16-3C5NA
       NC        G16-3C5NB
       NO+NC        G16-3C5NC
       PNP        NO        G16-3C5PA
       90-250VAC        NC        G16-3C5PB
       NO+NC        G16-3C5PC
       SCR Contro Hable silicon        NO
       NC
       Relay output
       DC/SCR Control output        DC:200mA
       DC/AC Consumption current        DC<15mA,AC<10mA
       DC/AC Response time        AC/Dc<2ms
       Directional angle        3-10
       Detected object        transparent or opaque body
       Working environment temperature        25℃~+55℃
       Intensity of illumination of working environment        Sunlight under 1000LX incandescent lamp under 3000LX
       Shell material
       Protection grade        IP54
