G12
Winston
| Diffuse type | Detection distance | 7cm | ||
| 10-30VDC | NPN | NO | G12-3A07NA | |
| NC | G12-3A07NB | |||
| NO+NC | G12-3A07NC | |||
| PNP | NO | G12-3A07PA | ||
| 90-250VAC | NC | G12-3A07PB | ||
| NO+NC | G12-3A07PC | |||
| SCR Contro Hable silicon | NO | |||
| NC | ||||
| Relay output | ||||

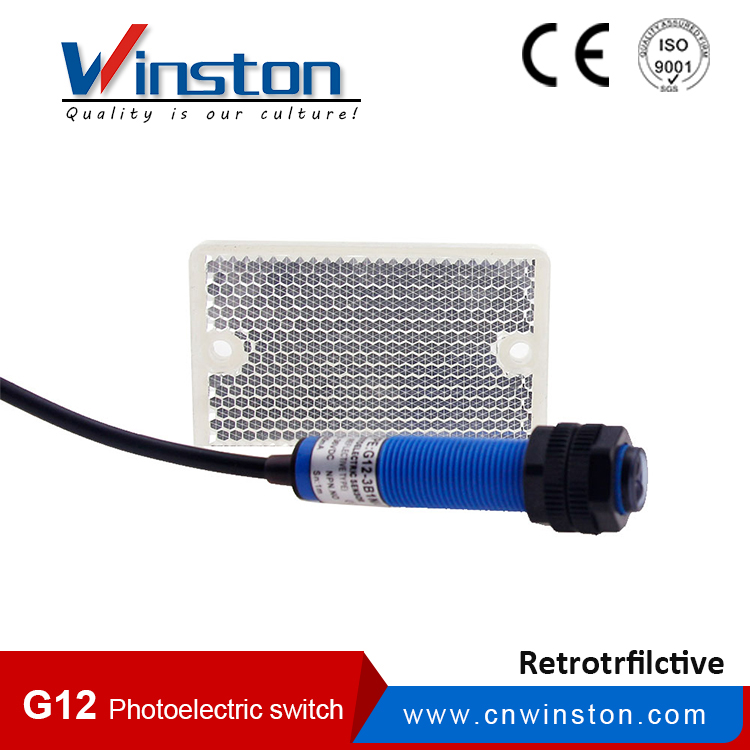

| Retroreflective type | Detection distance | 1m | ||
| 10-30VDC | NPN | NO | G12-3B1NA | |
| NC | G12-3B1NB | |||
| NO+NC | G12-3B1NC | |||
| PNP | NO | G12-3B1PA | ||
| 90-250VAC | NC | G12-3B1PB | ||
| NO+NC | G12-3B1PC | |||
| SCR Contro Hable silicon | NO | |||
| NC | ||||
| Relay output | ||||

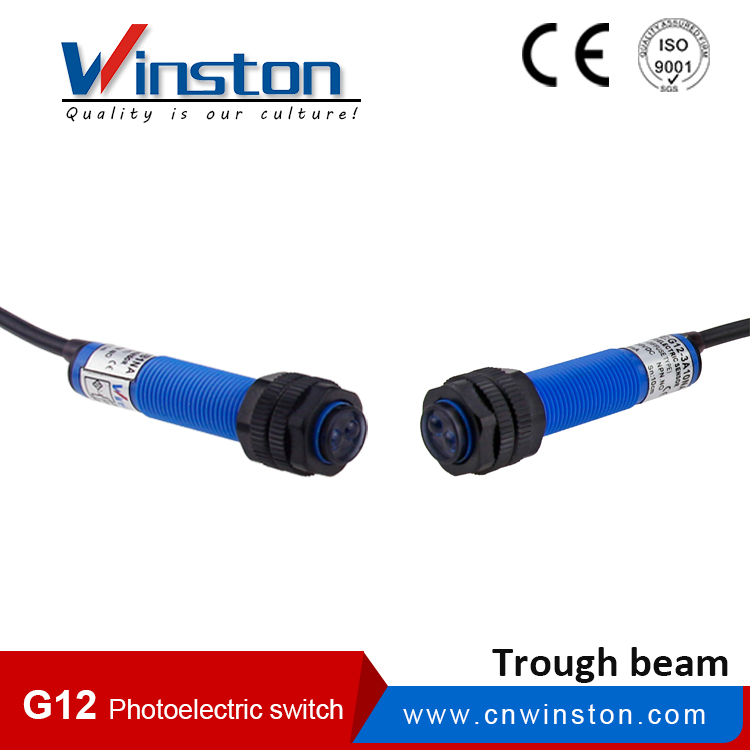

| Through beam | Detection distance | 3m | ||
| 10-30VDC | NPN | NO | G12-3C3NA | |
| NC | G12-3C3NB | |||
| NO+NC | G12-3C3NC | |||
| PNP | NO | G12-3C3PA | ||
| 90-250VAC | NC | G12-3C3PB | ||
| NO+NC | G12-3C3PC | |||
| SCR Contro Hable silicon | NO | |||
| NC | ||||
| Relay output | ||||
| DC/SCR Control output | DC:200mA | |||
| DC/AC Consumption current | DC<15mA | |||
| DC/AC Response time | Dc<2ms | |||
| Directional angle | 3 . -10 . | |||
| Detected object | transparent or opaque body | |||
| Working environment temperature | 25~+55ºC | |||
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX | |||
| Shell material | Metal | |||
| Protection grade | IP54 | |||
| Diffuse type | Detection distance | 7cm | ||
| 10-30VDC | NPN | NO | G12-3A07NA | |
| NC | G12-3A07NB | |||
| NO+NC | G12-3A07NC | |||
| PNP | NO | G12-3A07PA | ||
| 90-250VAC | NC | G12-3A07PB | ||
| NO+NC | G12-3A07PC | |||
| SCR Contro Hable silicon | NO | |||
| NC | ||||
| Relay output | ||||
| Retroreflective type | Detection distance | 1m | ||
| 10-30VDC | NPN | NO | G12-3B1NA | |
| NC | G12-3B1NB | |||
| NO+NC | G12-3B1NC | |||
| PNP | NO | G12-3B1PA | ||
| 90-250VAC | NC | G12-3B1PB | ||
| NO+NC | G12-3B1PC | |||
| SCR Contro Hable silicon | NO | |||
| NC | ||||
| Relay output | ||||
| Through beam | Detection distance | 3m | ||
| 10-30VDC | NPN | NO | G12-3C3NA | |
| NC | G12-3C3NB | |||
| NO+NC | G12-3C3NC | |||
| PNP | NO | G12-3C3PA | ||
| 90-250VAC | NC | G12-3C3PB | ||
| NO+NC | G12-3C3PC | |||
| SCR Contro Hable silicon | NO | |||
| NC | ||||
| Relay output | ||||
| DC/SCR Control output | DC:200mA | |||
| DC/AC Consumption current | DC<15mA | |||
| DC/AC Response time | Dc<2ms | |||
| Directional angle | 3 . -10 . | |||
| Detected object | transparent or opaque body | |||
| Working environment temperature | 25~+55ºC | |||
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX | |||
| Shell material | Metal | |||
| Protection grade | IP54 | |||
