DW17 series low voltage universal circuit breakers are suitable for the distribution circuits with AC 50/60Hz, voltage 380V & 660V, current up to 5000A, used as distributing electric energy and protecting circuit and electrical equipment against the overload, voltage drops and short circuit. It also can be used as unfrequent changeover of circuit under normal conditions. The circuit breaker less than 1250A can be used as protecting motor against overload short circuit in circuit with AC 50/60Hz voltage 380V & used as unfrequent starting motor under normal conditions.

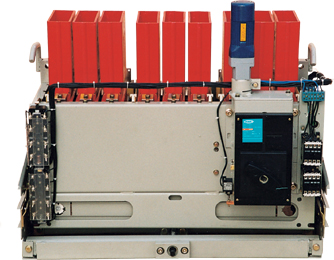

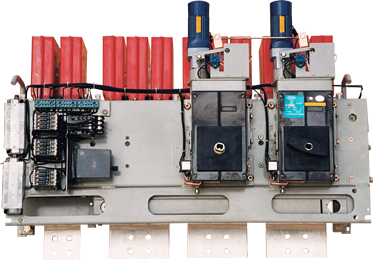

DW17 Universal Circuit Breaker
Application:
DW17 series low voltage universal circuit breakers are suitable for the distribution circuits with AC 50/60Hz, voltage 380V & 660V, current up to 5000A, used as distributing electric energy and protecting circuit and electrical equipment against the overload, voltage drops and short circuit. It also can be used as unfrequent changeover of circuit under normal conditions. The circuit breaker less than 1250A can be used as protecting motor against overload short circuit in circuit with AC 50/60Hz voltage 380V & used as unfrequent starting motor under normal conditions.
Specification:
Model
Rated Current (A)
Rated Breaking Ability
Rated Making Ability (kA)
Rated Short Time Tolerance Current(kA)
Short Time Tolerance Current (kA)
All Breaking Time (ms)
Mechanical Life (times)
Electrical Life (times)
(KA/cos?)
T=L R=15ms
380V~
660V~
220V~
440V~
380V~
660V~
DW17-630
630
50/0.25
40
30
105
30
50
30
20000 10000
1000
DW17-800
800
DW17-1000
1000
50
DW17-1250
1250
DW17-1600
1600
DW17-1605
1900
DW17-2000
2000
80/0.2
60
180
80
80
30
10000
500
DW17-2500
2500
DW17-2505
2900
DW17-3200
3200
DW17-3205
3900
DW17-4000
4000
100/0.2
80/0.2
80
220
180
100
100
40
3000
150
DW17-4005
5000
Note: Pls make sure fixed type or drawer type for circuit breaker when order is to be placed. Available mode of operation: right hand direct operation, face hand direct operation, face hand rapid operation, motor rapid operation or motor prestored energy operation with exoevgy.
