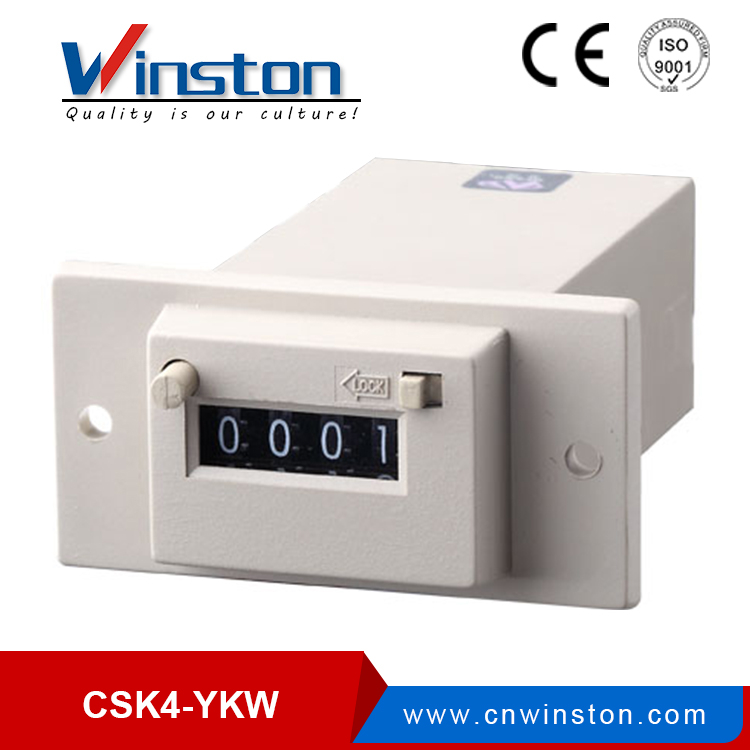

CSK Series electromagnetic counter are used in Recording the total times of electronic pulse signal, and it’s widely applied in the counting area of petrol, industry, textile, mechanism, national defense, agriculture , food, printing, and etc. the features are new construction ,high precision, long life, stable performance ,widely use, and easy operation.
| Model | CSK5-YKW |
| Counting range | 0-9999 |
| Voltage type | DC 24V 12V, AC 220V 110V |
| Counting speed | AC10 times/s, DC 20 times/s |
| Working temperature | -20ºC~50ºC Relative temperature: ≤85% |
| Power | DC 1.5W, AC 2.5VA |
| Installtion | Panel type |
| Voltage fluctuation range | ±10% |
| Indication error | <1*0.00001 |
CSK Series electromagnetic counter are used in Recording the total times of electronic pulse signal, and it’s widely applied in the counting area of petrol, industry, textile, mechanism, national defense, agriculture , food, printing, and etc. the features are new construction ,high precision, long life, stable performance ,widely use, and easy operation.
| Model | CSK5-YKW |
| Counting range | 0-9999 |
| Voltage type | DC 24V 12V, AC 220V 110V |
| Counting speed | AC10 times/s, DC 20 times/s |
| Working temperature | -20ºC~50ºC Relative temperature: ≤85% |
| Power | DC 1.5W, AC 2.5VA |
| Installtion | Panel type |
| Voltage fluctuation range | ±10% |
| Indication error | <1*0.00001 |
