MCF-6X Mechanical Electromagnetic Counter

Availability:
Quantity:
  • MCF-6X

  • Winston

MCF-6X Mechanical Electromagnetic Counter

Material:

Cover:ABS
Gear:Polyoxymethylene
Digial: Polycarbonate
Bracket:Fingerprint resistant material


Product description

MCF electromagnetic counter product spreads all over the country and supporting exports around the world, is widely applied to record the accumulation, the number of electrical signal statistical counting machine, machine tool schedule flow, printing, food, clothing, machinery and other electrical pulse counting integrating from all walks of life.


Technial data

Timing Range 0-999999
Counting Speed DC:20times/sec,AC:10times/sec
Supply Voltage

DC6V, 12V, 18V, 24V, 36V, 48V, 110V, 220V

AC24V, 36V, 48V, 110V, 220V

Power DC:1.5W, AC:2.5W
Lead Length Client Standard
Environment Temperature -20°C-50°C
Relative Humidity 85%


Dimension



       Model        MCF-6X
       Counter range        0-999999
       Voltage        AC220V,AC110V,DC24V,DC12V,Custom
       Voltage fluctuation range        ±10%
       Counter speed        DC 20times/s;AC 10times/S
       Indication error        <1*0.00001
       Use environment        -20°C~50°C Relative humidity≤85%
       Power        DC1.5W;AC2.5W
       Installation method        Clip type installation
       Return to zero mode        Pushbutton return to zero

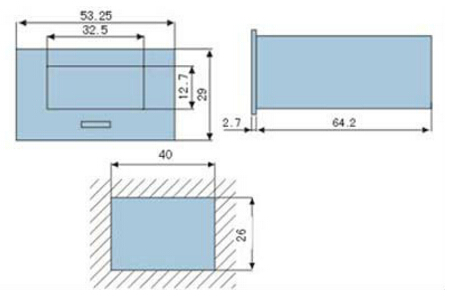

Outline dimension
MCF-6X 1
