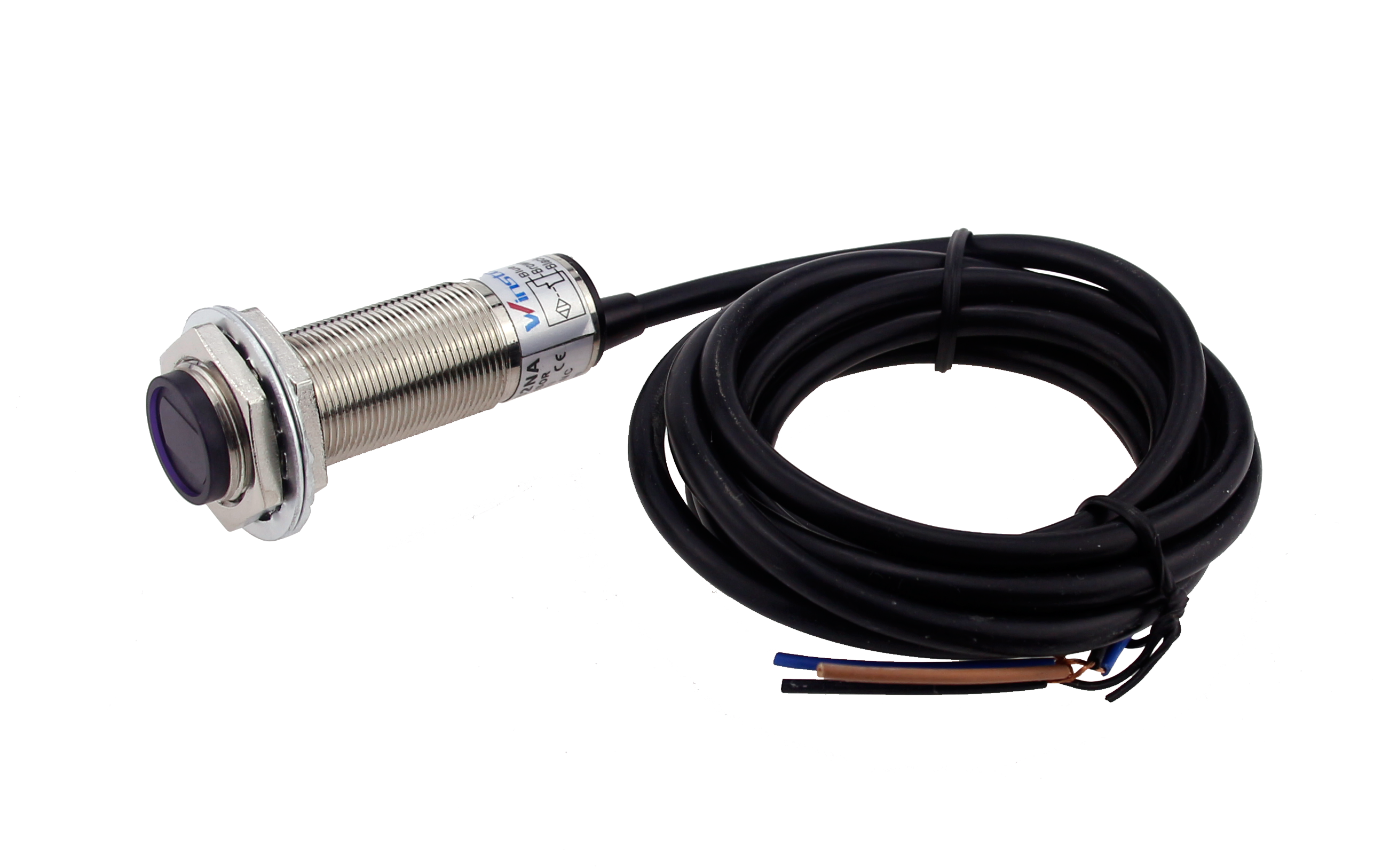

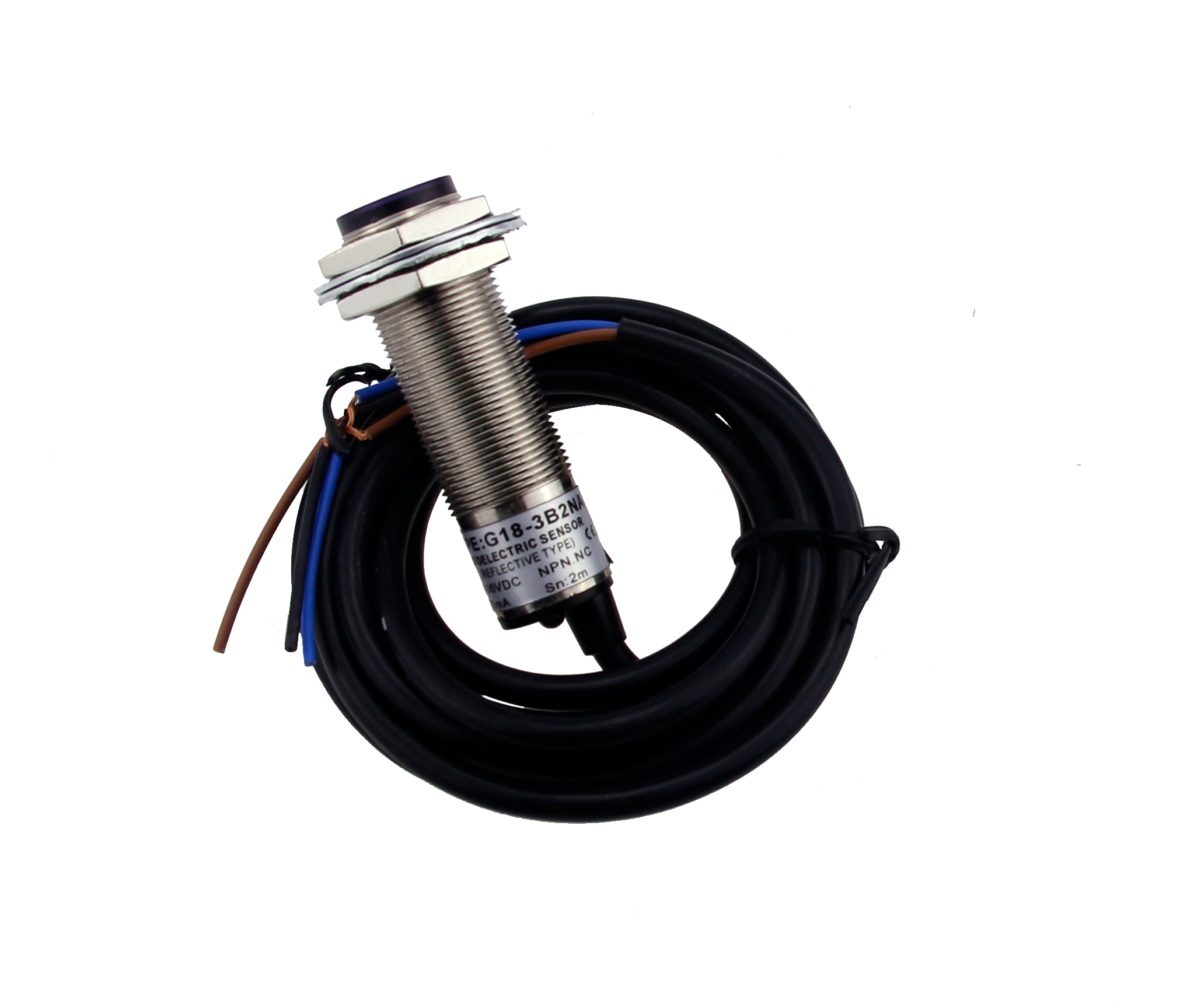

AC DC G18 Photoelectric Sensor With Reflector Plate

Availability:
Quantity:
Inquire Add to Basket

  • G18

  • Winston

Model NO. Detection distance Working voltage Output Detection way
Form State
G18 -3A 10NA 10-30CM DC10-30V
NPN		 NO
Diffuse type
G18 -3A 10NB NC
G18 -3A 10NC NO+NC
G18 -3A 10PA
PNP		 NO
G18 -3A 10PB AC90-250V NO
G18 -3A 10PC NO+NC
G18 -2A 10LA
SCR Control lable silicon		 NO
G18 -2A 10LB NC
G18-3B2NA 2m
DC10-30V
NPN		 NO
Retroreflective
G18-3B2NB NC
G18-3B2NC NO+NC
G18-3B2PA
PNP		 NO
G18-3B2PB
AC90-250V		 NC
G18-3B2PC NO+NC
G18-2B2LA
SCR Control lable silicon		 NO
G18-2B 2LB NC
G18 -3C 5NA 5m DC10-30V
 		 NPN
 		 NO Through beam
G18 -3C 5NB NC
G18 -3C 5NC NO+NC
G18 -3C 5PA PNP
 		 NO
G18 -3C 5PB AC90-250V NC
G18 -3C 5PC NO+NC
G18 -2C 5LA SCR Control lable silicon NO
G18 -2C 5LB NC

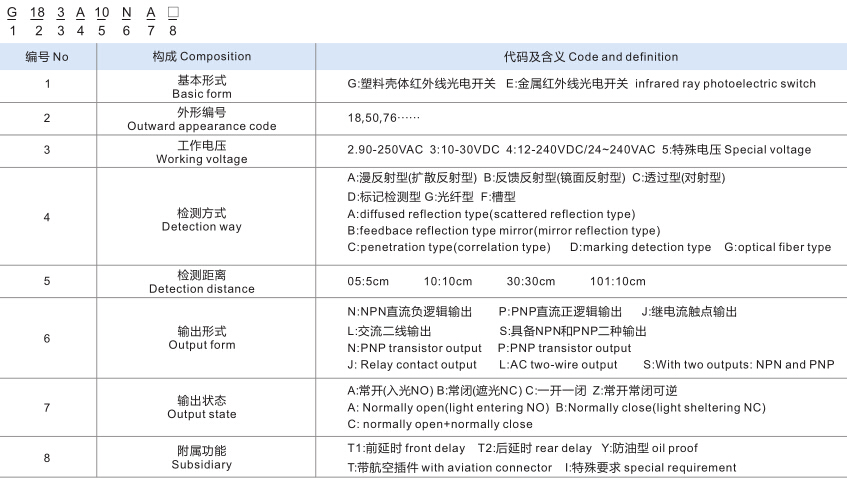

 Model explanation
photoelectric model

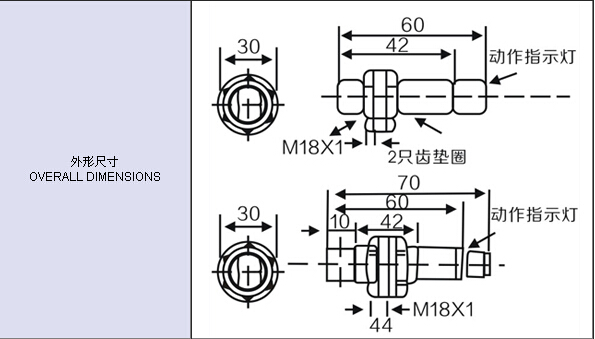

G180-1
