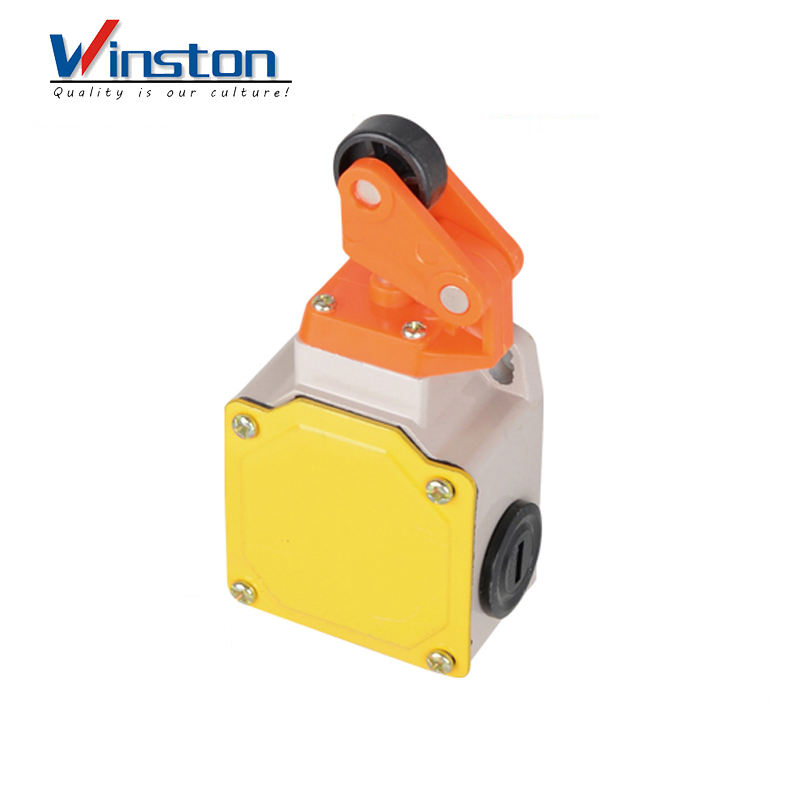

3SE3-100/1E
Winston
Characteristics/Application
The product is to service at such control circuit as AC50-60Hz, voltage of 380VAC or 220VDC and curront of 10A to automatically control machino tool, limit movement and action of drive mechanism and control programThe nominal service conditions include an ambient temperature of-25C+40C, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.
Code name for protection enclosure mode
| Type G | single rocker, single rotary wheel, automatic reset arbirtrary angle of installation of rocker |
| Type U | single rocker with length adjustable. one wheel automatic reset |
Characteristics/Application
The product is to service at such control circuit as AC50-60Hz, voltage of 380VAC or 220VDC and curront of 10A to automatically control machino tool, limit movement and action of drive mechanism and control programThe nominal service conditions include an ambient temperature of-25C+40C, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.
Code name for protection enclosure mode
| Type G | single rocker, single rotary wheel, automatic reset arbirtrary angle of installation of rocker |
| Type U | single rocker with length adjustable. one wheel automatic reset |
