OPR-SS3
Winston
■ Compact Design
■ Multiple Protection Functions
■ Wide Current Adjustment Range(10:1)
■ Ammeter Function
■ Trip Indication LED
■ High Accuracy
■ Manual Instantaneous Reset
■ Electrical Remote Reset
■ Test Function
■ Ambient Insensitive
■ Low Power Consumption
■ Fail-safe Operation(No Volt Release)

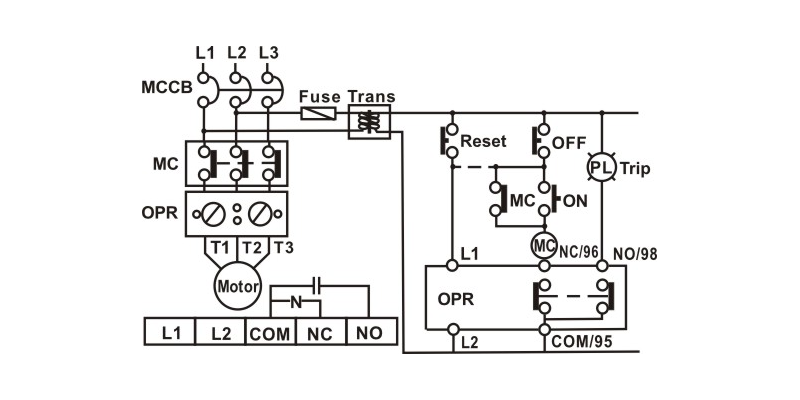

1. over current
2. phase loss
3. locked rotor
Protective Item | Operating(Trip) Time |
Over-current | O-TIME |
Phase Loss | 0.2S |
Locked Rotor | O-TIME + D-TIME |
Current Setting | Type | Range | |
05 | 0.5 ~ 6A | ||
60 | 5 ~ 60A | ||
120 | 20 ~ 120A | ||
over 120A~ | with External CT(Option) | ||
Time Setting | Start | D-TIME | 0.2 ~ 30sec |
Trip | O-TIME | 0.2 ~ 10sec | |
Control Voltage | 220 | 90 ~260VAC | |
440 | 180~ 480VAC | ||
Output Relay | Mode | 1-SPDT(1C) | |
Rating | 3A / 250VAC Resistive | ||
Status | Norm Energized / Norm not Energized | ||
Time-Current Characteristic | Definite | ||
Operating(Trip) Indication | 2-LED | ||
Mounting | 35mm DIN-Rail / Panel |
