Winston LRS- 35W small volume single output 5V 12V 24V power supply

Quantity:
  • LRS-35W
  • Winston





 Model

LRS-35-5 LRS-35-12 LRS-35-15 LRS-35-24 LRS-35-36 LRS-35-48
Dc output voltage 5V 12V 15V 24V 36V 48V
Rated output current 7A 3A 2.4A 1.5A 1A 0.8A
Output current rage 0-7A 0-3A 0-2.4A 0-1.5A 0-1A 0-0.8A
Rated  Power 35W 36W 36W 36W 36W 38.4W
Wave and noise 80mVp-p 120mVp-p 120mVp-p 150mVp-p 200mVp-p 200mVp-p
Voltage ADJ. range 4.5-5.5V 10.2-13.8V 13.5-18V 21.6-28.8V 32.4-39.6V 43.2-52.8V
Voltage tolerance ±2% ±1% ±1% ±1% ±1% ±1%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load Regulation ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency 82% 86% 86% 88% 88% 89%
AC input voltage range AC85~264V 47~63Hz;120~373VDC
Input current 0.7A/115V   0.42A/230V
AC Inrush current Cold-start  45A/230V
Overload proctection 110%~150% Potection type: Hiccp mode,recobers automatically after condition is recoverd
Over-voltage protection 5.75-6.9V 13.8-16.2V 18.75-21.75V 28.8-33.6V 41.4-48.6V 55.2-64.8V
Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time  1000ms,30ms/230VAC 2000ms,30ms/115VAC at full lod
 Hold up time  30ms/230VAC ,12ms/115VAC at full lod
Withstand voltage  I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC
Isolation resistance  I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Safety standards Meet ULGB4943 UL60950 EN60950
EMC standards Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Working temperature 70°C
Overall dimension 99*82*30mm
Weight

0.23Kgs

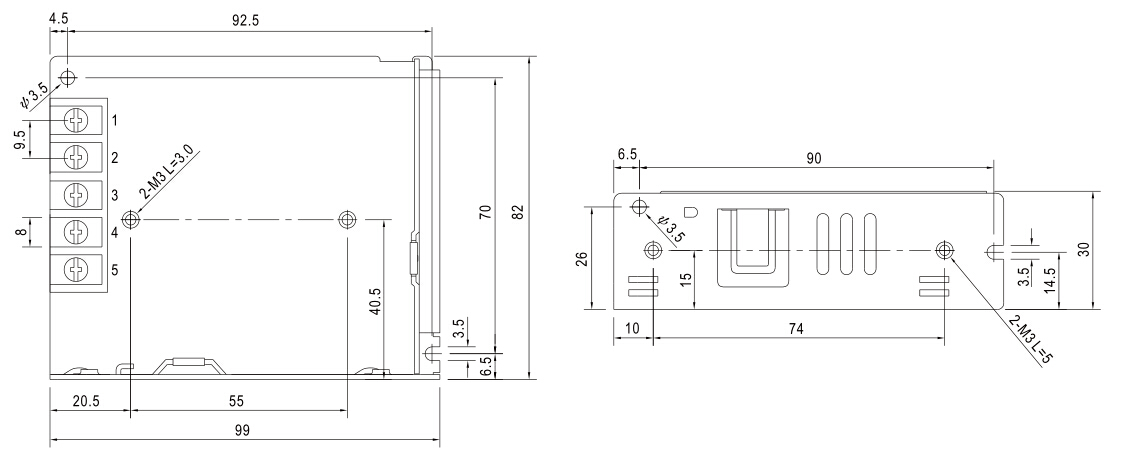

Dimension:


Product Description






Professional manufacturer, quality is our culture!
READ MORE>>
