W2401-100
Winston
Main features
· 100A Contact switching capability
· One set of normally open contacts
· Coil power consumption is:22~40W Min~Max
· Application Scope:Oil pump startup, Battery truck, Electric forklift,
Electric winch, Electric vehicle, Excavator, Automobile air conditioner
and lawm mowerpower on-off control of DC power supply systems.
· Product features:Small volume, high breaking capacity, sealing protection,
and various installation methods,which can adapt to harsh service environment
· Product certification: CE
Application

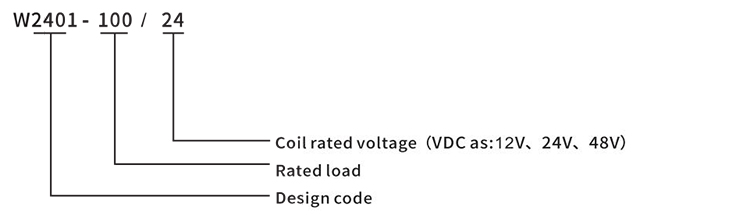

Interpretation of product model
Example:W2401-100A/24;Indicates:a group of DC contactors with normally open contacts, current 100A and coil voltage 24V
Performance parameter
Model | W2401-100/□ |
Contact form | One set of normally open |
Contact load | 100A |
Insulation resistance | Min. 100MΩ at 500VDC |
Dielectric Strength | 1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
Instantaneous maximum current | 300A ,≤1S |
Pull in time(ms) | ≤30 |
Release time(ms) | ≤50 |
Pull-in voltage (DC V) | ≤75% US |
Release voltage (DC V) | 5~40% US |
Operating ambient temperature | -25℃~+55℃ |
Mechanical life | ≥300,000 second |
Degree of protection | IP67 |
Working system | Short term working system |
Vibration | (10~200)Hz acceleration ≤3.5g |
To attack | (60) Times / minute acceleration 6g |
Coil parameters
Model | Coil voltage (V) | Pull-in voltage(V) | Release voltage(V) | Starting current(A) |
W2401-100/□ | 12 | 10~70% | 5~40% | ≤2.5 |
24 | ≤1 | |||
48 | ≤0.6 |

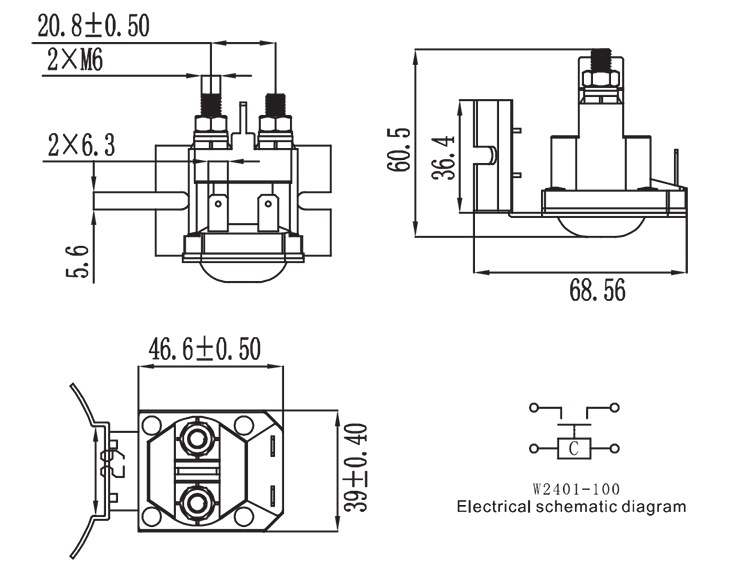

Outline installation dimensions and circuit schematic diagram
Matters needing attention
1.When installing the contactor, the tightening torque of the main circuit wiring screw nut is 8~10N.m;
Control circuit wiring screw nut tightening torque 1~1.5N.m.
2.The driving circuit power of the product coil must be greater than or equal to the product coil power,
Otherwise the cutting capacity of the product will be reduced.
3.The voltage continuously applied to the coil shall not exceed the maximum allowable voltage.
Packaging & Shipping
