SC-180
Winston
• 2 Years warranty
Model | SC-180-12 | SC-180-24 | ||
DC voltage | CH1:12V | CH2:13.8V | CH1:24V | CH2:27.6V |
Output Accuracy | ±2% | ----- | ±2% | ----- |
Rated current | 13.5A | 1.5A | 6.5A | 1.0A |
Current range | 0~15A | ----- | 0~7.5A | ----- |
Rated power | 182.7W | 183.6W | ||
Ripple & noise | 120mvp-p | ----- | 180mvp-p | ----- |
DC voltage ADJ.range | CH1:10.3~13.8V | CH1:21.3~27.5V | ||
Efficiency | 85% | 87% | ||
Input voltage range | 90~132VAC/180~264VAC(selected by switch)/255~370VDC | |||
Frequency | 47~63HZ | |||
Input AC current | 3.5A/115VAC,1.8A/230VAC | |||
Inrush current | Cold-start current 30A/115VAC,50A/230VAC | |||
Leakage current | < 2.5mA/240VAC | |||
Over load protection | Rated output power 110%~150% start over load protection | |||
Protection type:AC charging mode,hiccup mode,auto-revovery after fault condition is removed | ||||
Low-voltage battery protection | 9.5~10.3V | 19~20.6V | ||
Protection mode: Cut off output | ||||
UPS Function Description | Long-term online floating charge of the battery, high charging efficiency, and the battery fullness can reach more than 90%; | |||
Full stop, prevent battery overcharge, effectively extend battery life; | ||||
Automatic mains/battery switching, no switching time, no need to watch | ||||
With the cold start function, the UPS can be started directly with the battery to meet the emergency requirements of users when there is no mains supply | ||||
Working temp,humidity | -20℃~+60℃,20%~90%RH | |||
Storage temp,humidity | -20℃~+85℃,10%~95%RH Non-condensing | |||
Withstand voltage | I/P-O/P:1.5KVAC; I/P-FG:1.5KVAC; O/P-FG:0.5KVAC | |||
Isolation resistance | I/P-O/P:I/P-FG:O/P-FG:100M ohms/500VDC | |||
Demension | 199*98*38mm (L*W*H) | |||
Weight/packing | 0.7kg/30pcs/21kg |

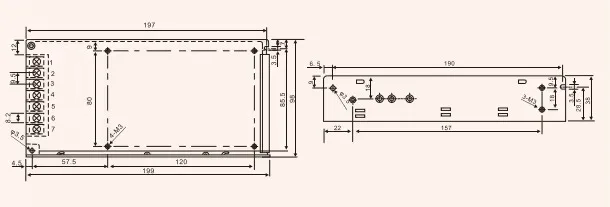

Dimension
