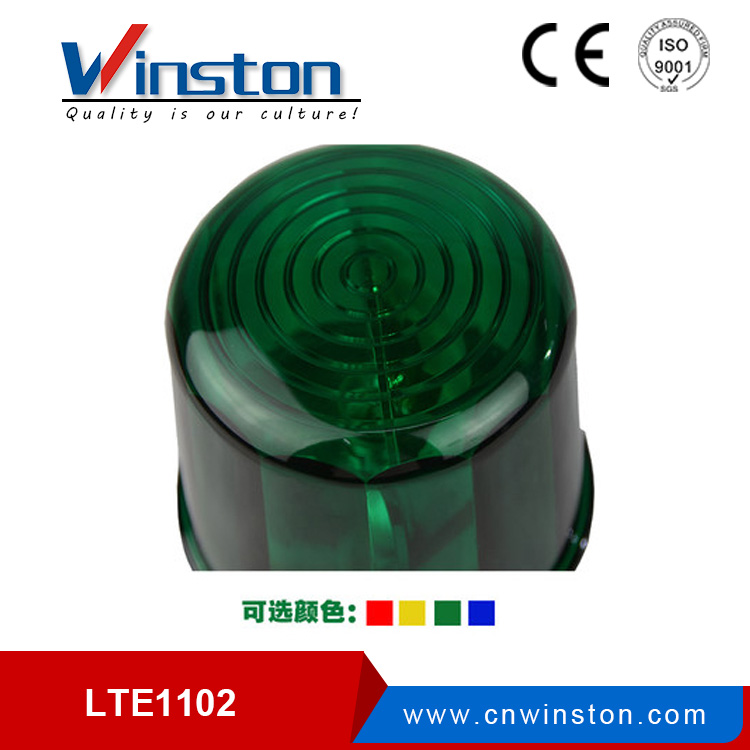

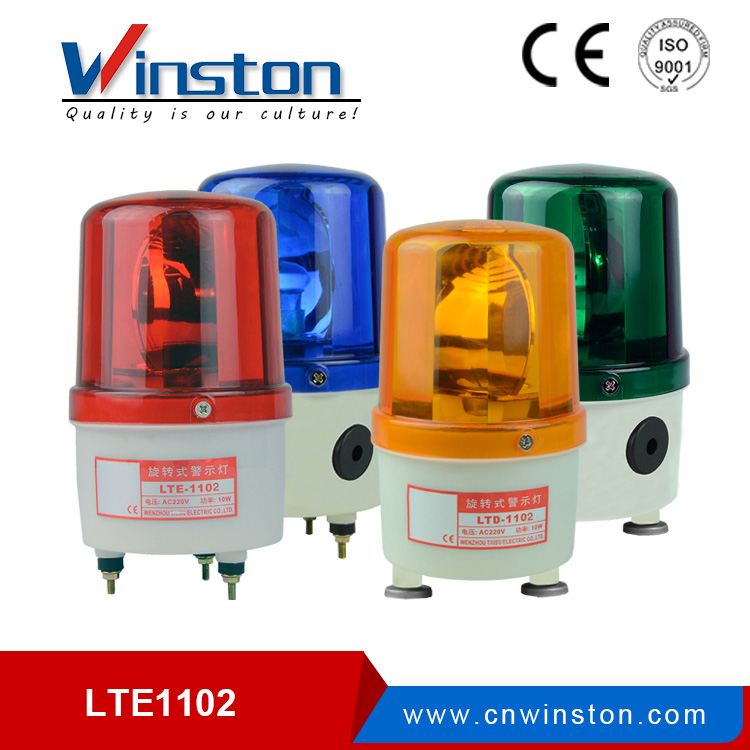

LTD-1102 DC 12V 24V AC 110V 220V Bulb revolving warning light

LTE-1102J Rotary warning light red alarm lights for machines
Mounting type:Screw fixing and Magnet
90-130RPM
Material:AS,ABS,PC
IP55

Quantity:
  • LTD-1102J
  • Winston
  • 8531809000

LTD-1102J Bulb Revolving Warning Light  red alarm lights for machines




Description
Using high quality resin. With high strength, can adapt to bad environment. Science of parabolic reflecting the light spread
very far. Use rubber gasket, conforms to the IP55 protection grade, rainproof, dustproof.


Technical parameters

Legend
Model LTE1102 LTE1102J LTD1102 LTD1102J
Lighting
Bulb Revolving

Bulb Revolving

Bulb Revolving

Bulb Revolving
Power 10W 10W 10W 10W
Mounting Screw Fixing Screw Fixing With Buzzer Magetic Fixing Magetic Fixing With Buzzer
Sound - 90dB - 90dB
Play Sound - 1  - 1
Voltage DC12V
 DC24V
 AC110V
 AC220V
DC12V
 DC24V
 AC110V
 AC220V
DC12V
 DC24V
 AC110V
 AC220V
DC12V
 DC24V
 AC110V
 AC220V
Color



       Model        Voltage        Power        Color        dB(A)1m        Packing size        PCS/CTN        G.W.
       LTE1102        DC12V        10W        Red        -        56*33.5*39cm        30PCS        12KG
       LTE1102J        DC24V        Yellow        90dB        14KG
       LTD1102        AC110V        Green        -        12KG
       LTD1102J        AC220V        Blue        90dB        14KG


Overall dimensions

QQ图片20140325165254
                                    LTE TYPE                                                                                                                         LTD TYPE

Type

QQ图片20140325164901
    LTE Screw fixing                               LTD Magnetic                                J with siren sound


1102J1102-WARNING-LIGHTLTE1102Jlte1102-rotator-warning-lightlte1102-warning-light
