Instructions G30 light Photoelectric Switch wiring

Quantity:
  • G30
  • Winston

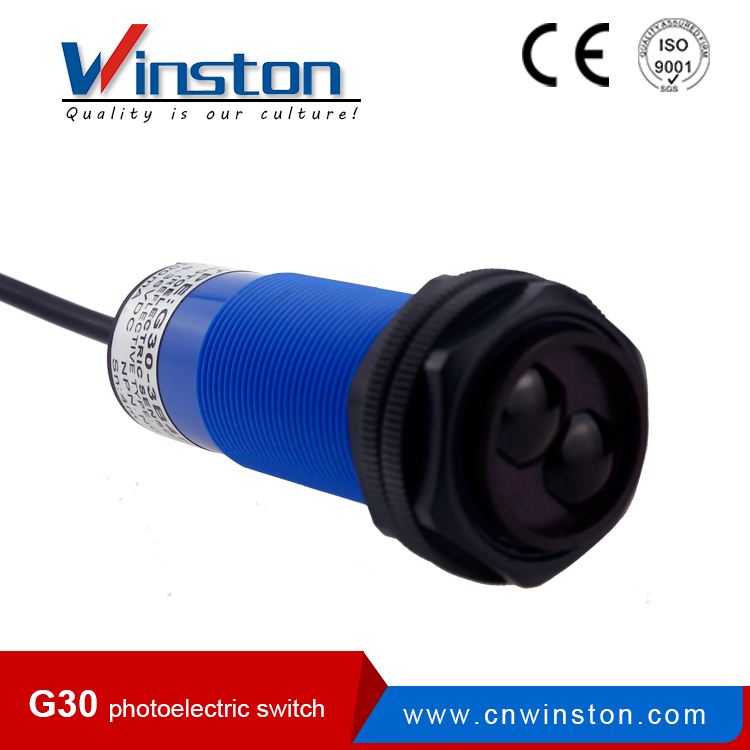

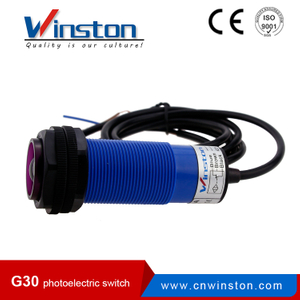

This is winston photoelectric sensor g30, it can detect everything except air. First according to the model type turn to NPN then open. I will use paper to show the distance to all of you. This pay attention to the yellow light, the longest distance can reach to 50cm.


Model NO. Detection distance Working voltage Output Detection way
Form State
G18 -3A 10NA 10-30CM DC10-30V
NPN
NO
Diffuse type
G18 -3A 10NB NC
G18 -3A 10NC NO+NC
G18 -3A 10PA
PNP
NO
G18 -3A 10PB AC90-250V NO
G18 -3A 10PC NO+NC
G18 -2A 10LA
SCR Control lable silicon
NO
G18 -2A 10LB NC
G18-3B2NA 2m
DC10-30V

NPN
NO
Retroreflective
G18-3B2NB NC
G18-3B2NC NO+NC
G18-3B2PA
PNP
NO
G18-3B2PB
AC90-250V
NC
G18-3B2PC NO+NC
G18-2B2LA
SCR Control lable silicon
NO
G18-2B 2LB NC
G18 -3C 5NA 5m DC10-30V

NPN

NO Through beam
G18 -3C 5NB NC
G18 -3C 5NC NO+NC
G18 -3C 5PA PNP

NO
G18 -3C 5PB AC90-250V NC
G18 -3C 5PC NO+NC
G18 -2C 5LA SCR Control lable silicon NO
G18 -2C 5LB NC



 Model explanation
photoelectric model

G180-1
