High quality flexible parts expansion sleeve

Availability:
Quantity:
Inquire Add to Basket

  • Z2

  • Winston

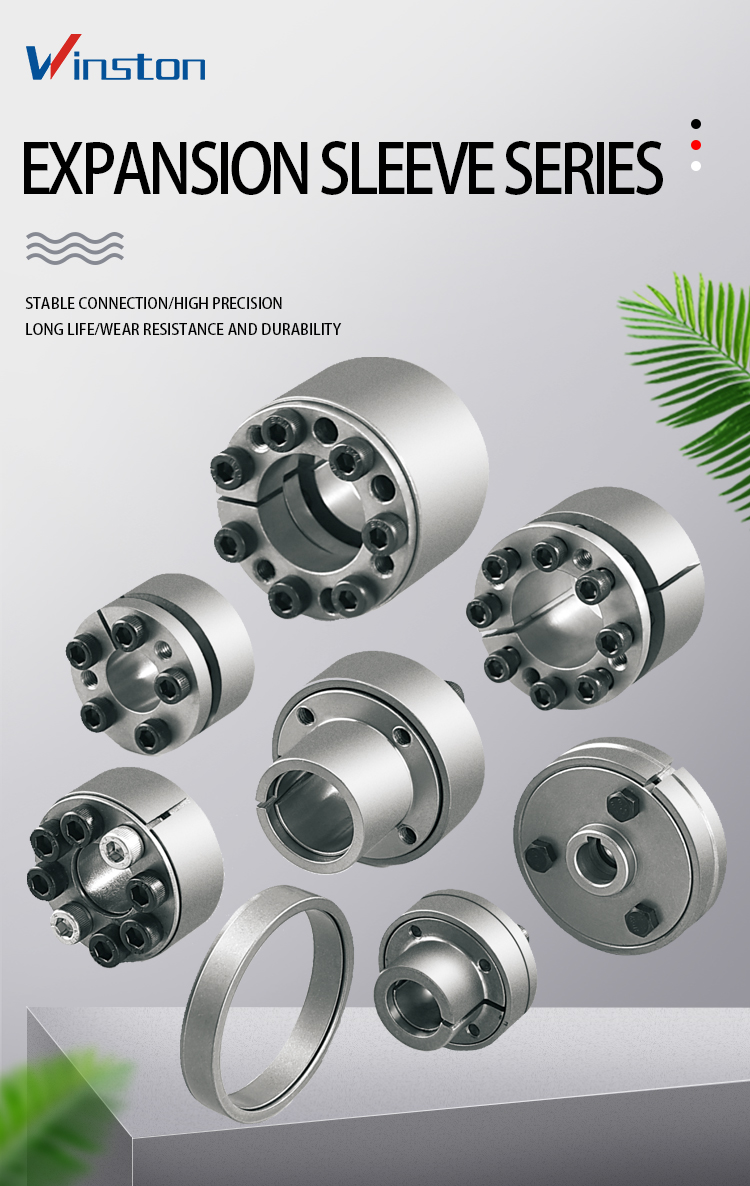

High quality flexible parts expansion sleeve


Products Description

1. Expansion sleeve is a keyless connection device, its principle and use is through the action of

    high strength tensile bolt,between the inner ring and shaft, between the outer ring and the hub
    of a huge holding force, in order to achieve the keyless connection between the parts and the
    shaft. When under load, by the expansion sleeve and parts, shaft combined pressure and
    associated friction to transfer torque, axial force or both of the composite load.

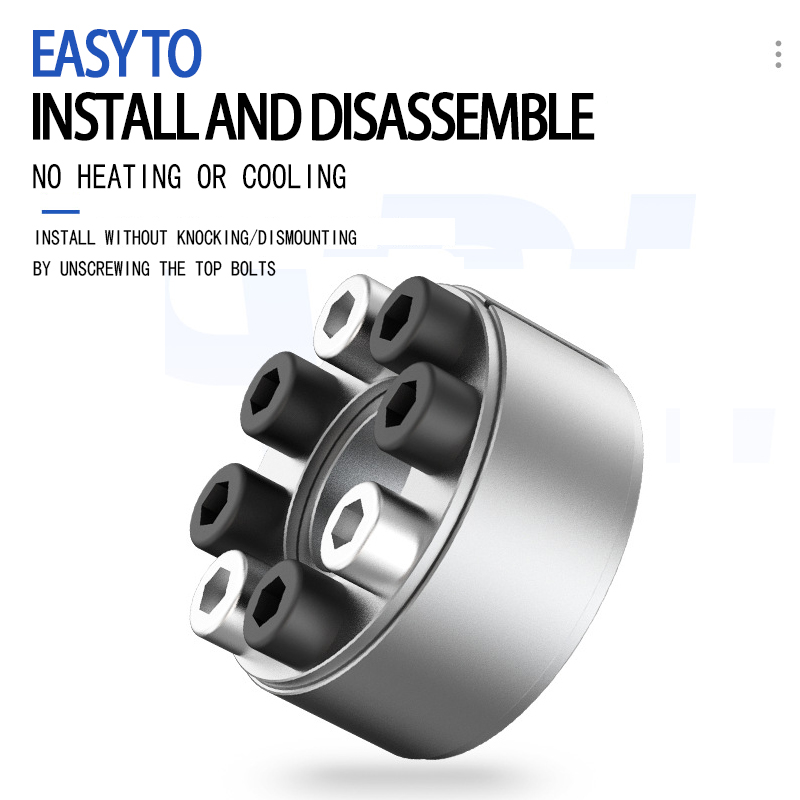

2. Expansion sleeve connection mainly has the following advantages: high accuracy; Easy to
    install/adjust/disassemble; High strength,stable and reliable connection; Protects equipment
    from damage during overloading, especially for transferring heavy loads

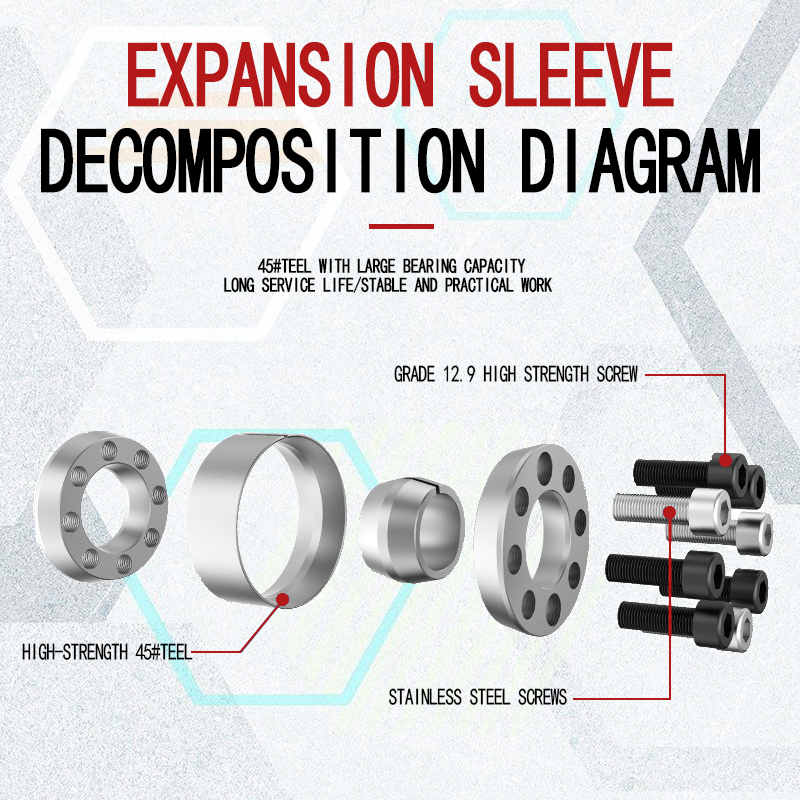

3. Z2 expansion sleeve is composed of an open double cone inner ring, an open double cone outer
    ring and two double cone compression ring.
4. With hexagonal bolt lime tight, lime tight elastic ring has no axial movement relative to the hub,
    compared with Z1 type, the same compression force can produce greater radial pressure, transfer
    greater load.
5. In order to facilitate disassembly, there is a screw hole for disassembly on a pressing ring, and
    there are 2~4 places along the circumference.
6. Widely used in packaging, printing, textile, machine tools and other machinery.

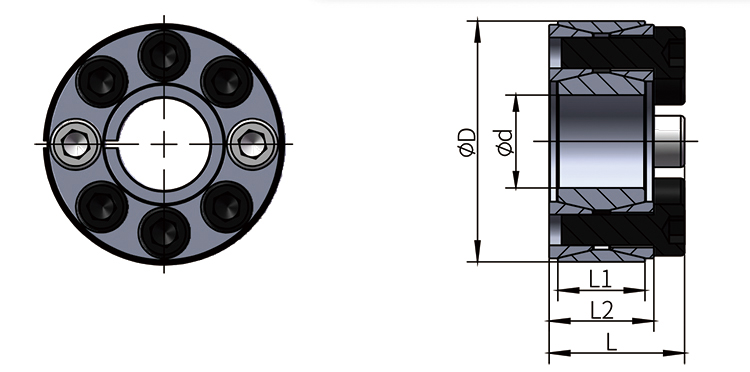

Dimension

尺寸


Technical Parameters

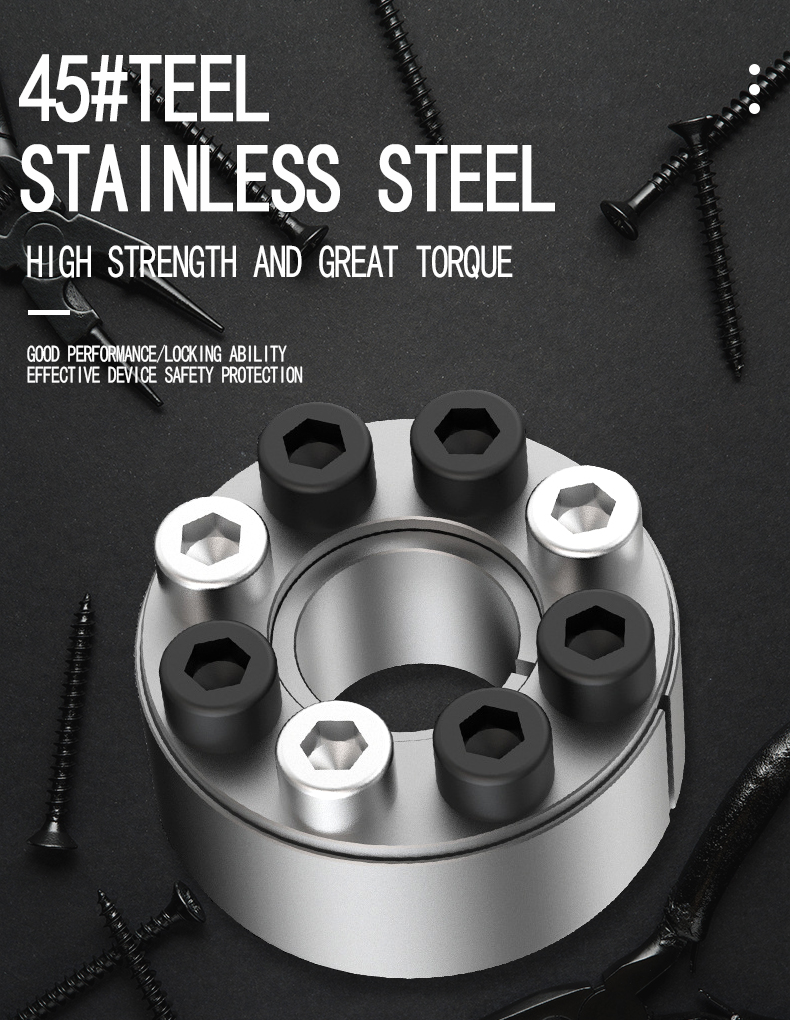

Product material
45 #teel/stainless steel
Surface treatment
Natural color

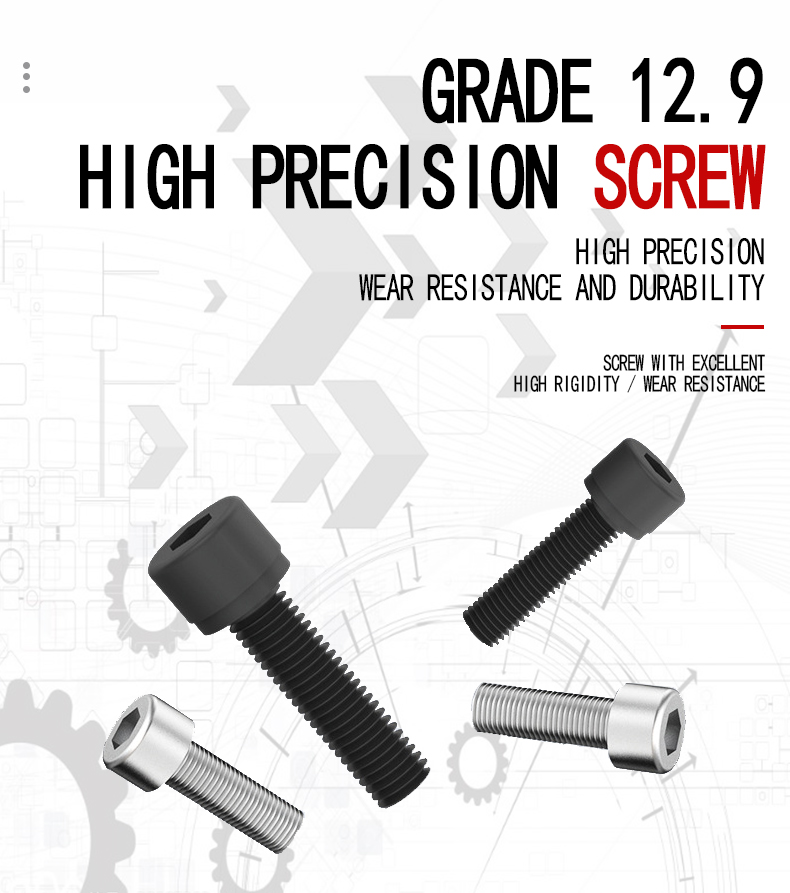

Configuration screw
Grade 12.9 screw / stainless steel screw

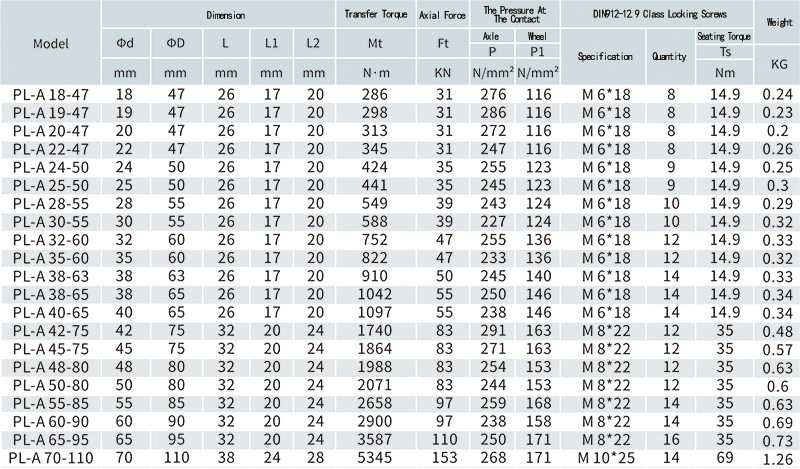

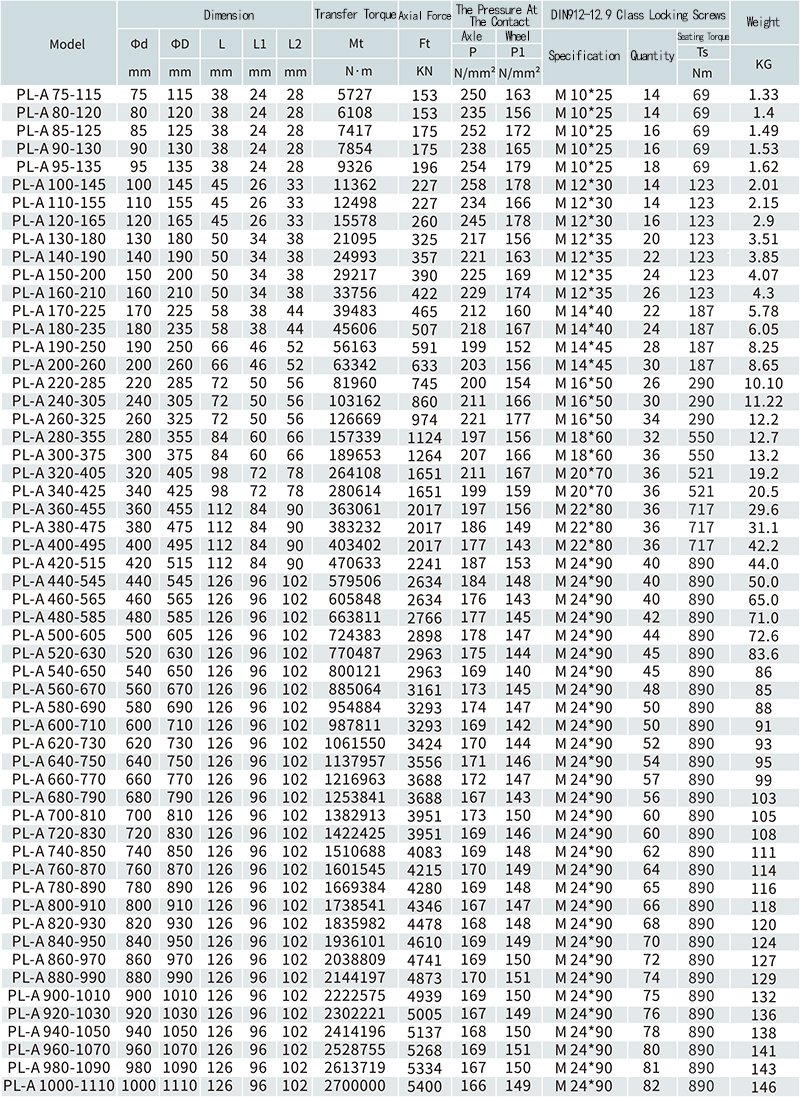

型号1型号2

Features

详情页1详情页2详情页3主图2主图3主图4


Packaging & Shipping

说明板块_02
