XB7-E1L
Winston
led push button switch Convex head button
red green yellow 1 Contact 22mm
XB series button switch
1. The contacts are made of AgCdO15 material, which has strong on and break power and long life.
2. The led button uses LED light for low power consumption and long life.
3. Both the knob switch and the key knob switch have a function to prevent follow-up and prevent the body from following the handle.
4. Two wiring methods are available:
(1) screw wiring, (2) plug-in wiring.
 |  |
l Screw wiring: simple and convenient.
l Plug-in wiring: high connection reliability, especially suitable for use in vibration more powerful places, such as: cars, lawn mowers, engineering machinery and so on.
5. Can be installed on the thickness of 10mm mounting panel, is the best of its kind.
6. Integrated structural design, installation is very convenient, while avoiding the installation of the quality problems caused by the lack of installation.
7. The product's performance meets the requirements of the national standard GB14048.5 (IEC60947-5-1) and is CCC product certified.

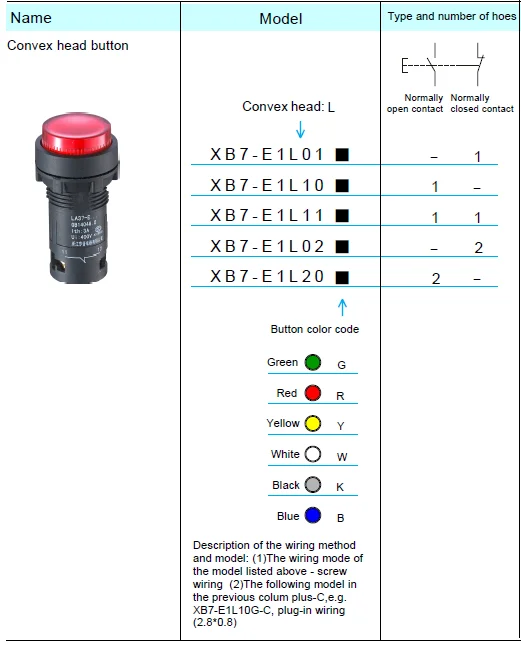

Description of the wiring method and model:
(1)The wiring mode of the model listed above - screw wiring
(2)The following model in the previous colum plus-C,e.g. XB7-E1A610G-C, plug-in wiring(2.8*0.8)
 |  |
Note: The button can also be installed in the aperture of 25 mounting hole, after the addition of variable diameter ring can be installed in the aperture of the installation hole of 30.
XB series button switch technical parameters
Environment: | |
Meet the standards | GB 14048.5 , IEC 60947-5-1 |
Protective treatment | “TH” |
Ambient temperature
| Operating temperature: - 25 ~ +70 ℃ Storage temperature: - 40 ~ +70 ℃ |
Vibration resistance | 5 gn (2-500Hz) Conforms to IEC 60068-2-6 |
Protection level | Terminals: IP20 |
Mechanical life | Spring-loadd button: 5 million times Knob switch: 1 million times Emergency stop button: 300,000 times |
Rated operating voltage | Operating current | |
12V AC/DC | 11.5 mA (Red, green, yellow, blue indicator) 11 mA (White light) | |
24V AC/DC | 13.8 mA (Red, green, yellow, blue indicator) 10.2 mA(White light) | |
110V AC | 5.5 mA (Red, green, yellow, blue, white indicator) | |
220V AC | 11 mA (Red, green, yellow, blue, white indicator) | |
Lifetime | More than 50,000 hours at nominal voltage | |
Voltage limit | 0.5Un ≤ U ≤ 1.1Un | |
Terminal symbol | ||
Wiring capabilities
| Screw wiring
| Min 1 x 0.5 mm2 without wire connector Tightening moment: 0.5 N.m (recommended value) Up to 2 x 1.5 mm2 with wire connector head Tightening moment: 0.5 N.m (recommended value)
|
Plug-in wiring Connector
| 0.8*2.8 mm Faston Connector | |
