WST-PR1
Winston
■ Compact Design
■ Testing three phase power supply, protecting motors and other loads
■ testing phase stagger and phase loss
■ No additional auxiliary power supply is required
■ Trip Indication LED
■ High accuracy , low power consumption
■ Ambient Insensitive
■ Automatic Reset and Adjustable Reset Timer
1. Phase sequence monitoring
2. Phase loss detection
| Model | WST-PR1 |
| Monitoring circuit | L1,L2,L3 |
| Control Voltage | 220-440VAC 50/60Hz |
| Function | Phase sequence monitoring and phase loss detection |
| Operating Indication | 1-LED |
| Output Relay Mode | 2-SPDT(2NC+2NO) |
| Output Relay Rating | 6A / 250VAC Resistive |

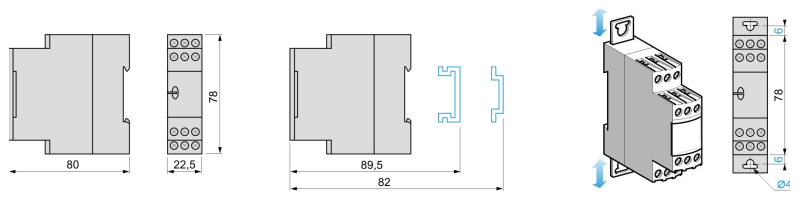

| Mounting | 35mm DIN-Rail/Panel |
■ Compact Design
■ Testing three phase power supply, protecting motors and other loads
■ testing phase stagger and phase loss
■ No additional auxiliary power supply is required
■ Trip Indication LED
■ High accuracy , low power consumption
■ Ambient Insensitive
■ Automatic Reset and Adjustable Reset Timer
1. Phase sequence monitoring
2. Phase loss detection
| Model | WST-PR1 |
| Monitoring circuit | L1,L2,L3 |
| Control Voltage | 220-440VAC 50/60Hz |
| Function | Phase sequence monitoring and phase loss detection |
| Operating Indication | 1-LED |
| Output Relay Mode | 2-SPDT(2NC+2NO) |
| Output Relay Rating | 6A / 250VAC Resistive |
| Mounting | 35mm DIN-Rail/Panel |
