SD-25W
Winston
| Model | SD-25A-5 | SD-25B-5 | SD-25C-5 | SD-25A-12 | SD-25B-12 | SD-15C-12 | SD-25A-24 | SD-25B-24 | SD-25C-24 |
| DC Voltage | 5V | 12V | 24V | ||||||
| Rated Current | 5A | 2.1A | 1.1A | ||||||
| Current Range | 0 - 5A | 0 - 2.1A | 0 - 1.1A | ||||||
| Rated Power | 25W | 25W | 25W | ||||||
| Wave & Noise | 100mVp-p | 120mVp-p | 150mVp-p | ||||||
| Voltage ADJ. Range | 4.5 - 5.5VDC | 11 - 16VDC | 23 - 30VDC | ||||||
| Voltage Tolerance | ± 2.0% | ± 1.0% | ± 1.0% | ||||||
| Line Regulation | ± 0.5% | ± 0.3% | ± 0.2% | ||||||
| Load Regulation | ± 0.5% | ± 0.3% | ± 0.2% | ||||||
| DC Current | 3.2A/12VDC | 1.6A/24VDC | 0.8A/48VDC | ||||||
| Efficiency | 71% | 72% | 74% | 72% | 75% | 78% | 75% | 78% | 81% |
| Voltage Range | A: 9.2 - 18VDC B: 18 - 36VDC C: 36-72VDC | ||||||||
| Setup,Rise,Hold Time | 2.5s, 50ms, at full load | ||||||||
| Overload | 105 ~ 150% rated output power | ||||||||
| Protection type: Fold back current limiting, recovers automatically after fault condition is removed | |||||||||
| Over Voltage | 5.75 ~ 6.75V/10% load | 16.8 ~ 20V/10% load | 31.5 ~ 37.5V/10% load | ||||||
| Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| Working Temp. | -10 ~ +60ºC (Refer to output load derating curve) | ||||||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||||||
| Storage Temp.,Humidity | -20 ~ +85º C, 10 ~ 95% RH | ||||||||
| Temp. Coefficient | ± 0.03%/ºC (0 ~ 50º C) | ||||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| Safety Standards | Design refer to LVD | ||||||||
| Withstand Voltage | I/P-O/P:2KVAC I/P-FG:1KVAC O/P-FG:0.5KVAC | ||||||||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||||||||
| EMI Conduction& Radiation | Design refer to EN55022(CISPR22) CLASS B | ||||||||
| EMS Immunity | Design refer to EN61000-4-2, 3, 4, 6, 8; ENV50204, EN55024, light industry level, criteria A | ||||||||
| Dimension | 99*97*36mm (L*W*H) | ||||||||
| Packing | 0.38Kg; 45pcs/17.8Kg/0.9CUFT | ||||||||

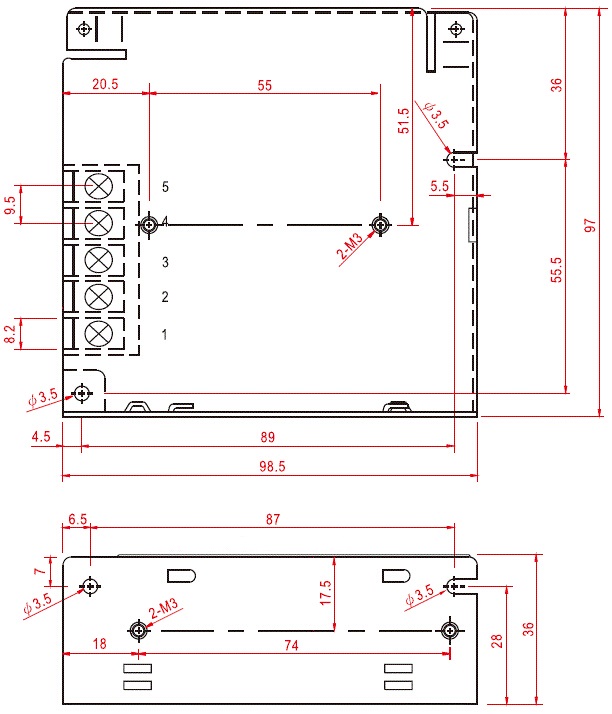

Dimension:
