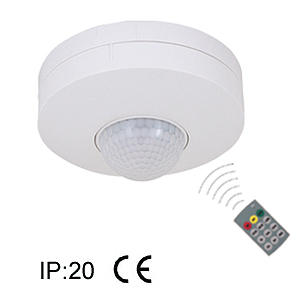

WST-PR-29B-D PIR Ceiling mount sensor Power source: 220V/AC-240V/AC
100V/AC-130V/AC
Power frequency: 50HZ/60HZ
Ambient light: <20lux~>2000lux
Detecting distance：3~10mmax(<22℃)
Rated load：1200W（220V/AC）
600W（110V/AC）
Timesetting：min: 10sec±2sec
max: 12min±1min
Detection angle: 360° (ceiling installation)
Working temperature: -10~+40℃
Workinghumidity：<95%RH
Installation height: 2.5~3.5m
power consumption：working 0.45W (static 0.1W)
sense motion speed：0.6~1.5m/s
IP20
