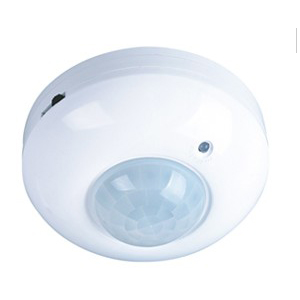

WST-PR-20B PIR Ceiling mount sensor Power source:100V/AC-130V/AC 220V/AC-240V/AC
110V/AC-240V/AC
Power frequency:50/60HZ
Light control:<10LUX
Time delay:min:5sec max:6min±1min
Rated load:800W (110V/AC) 1200W(220V/AC)
Detection distance:6m max (24°C)
Detection range:120°(side view) 360°(top view)
Working temperature:-10℃~+40°C
Working humidity:<95%RH
Installation height:2m~4m
Power consumption:0.5W (static 0.1W)
Detection speed:0.6 ~1.5m/s
