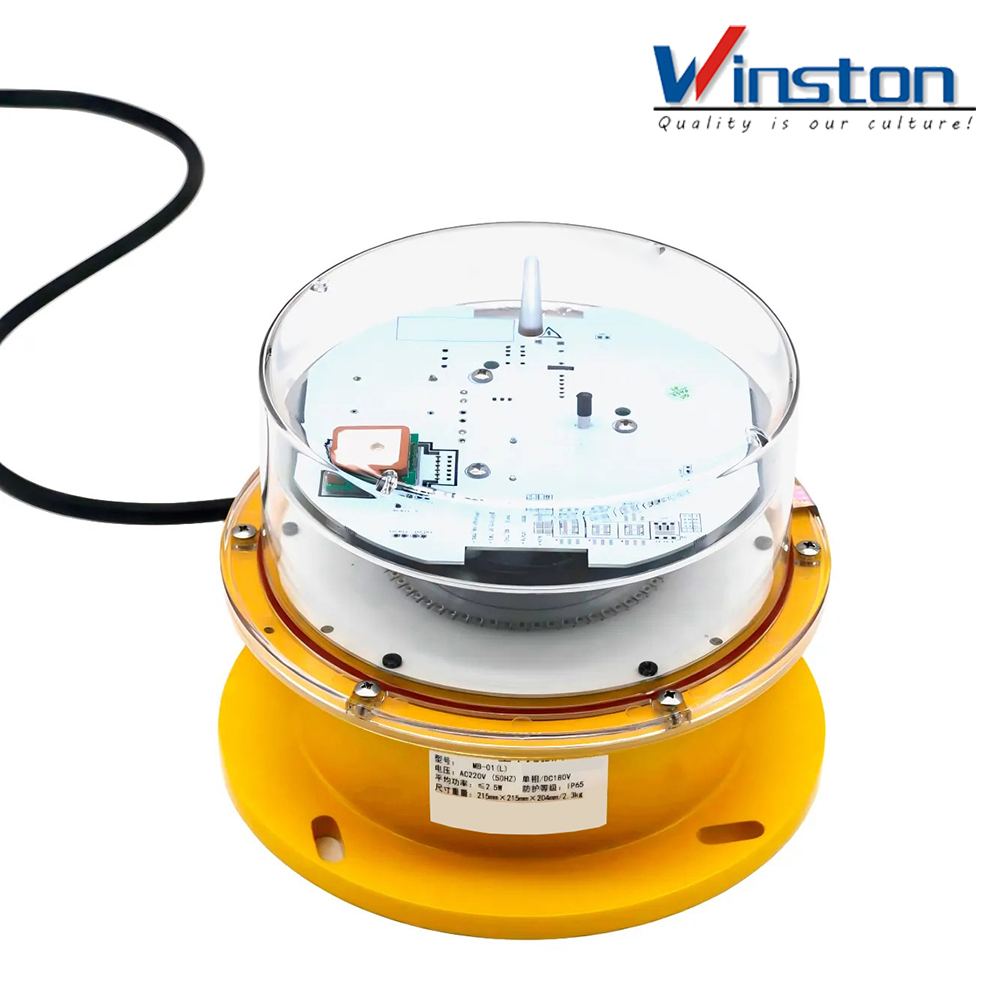

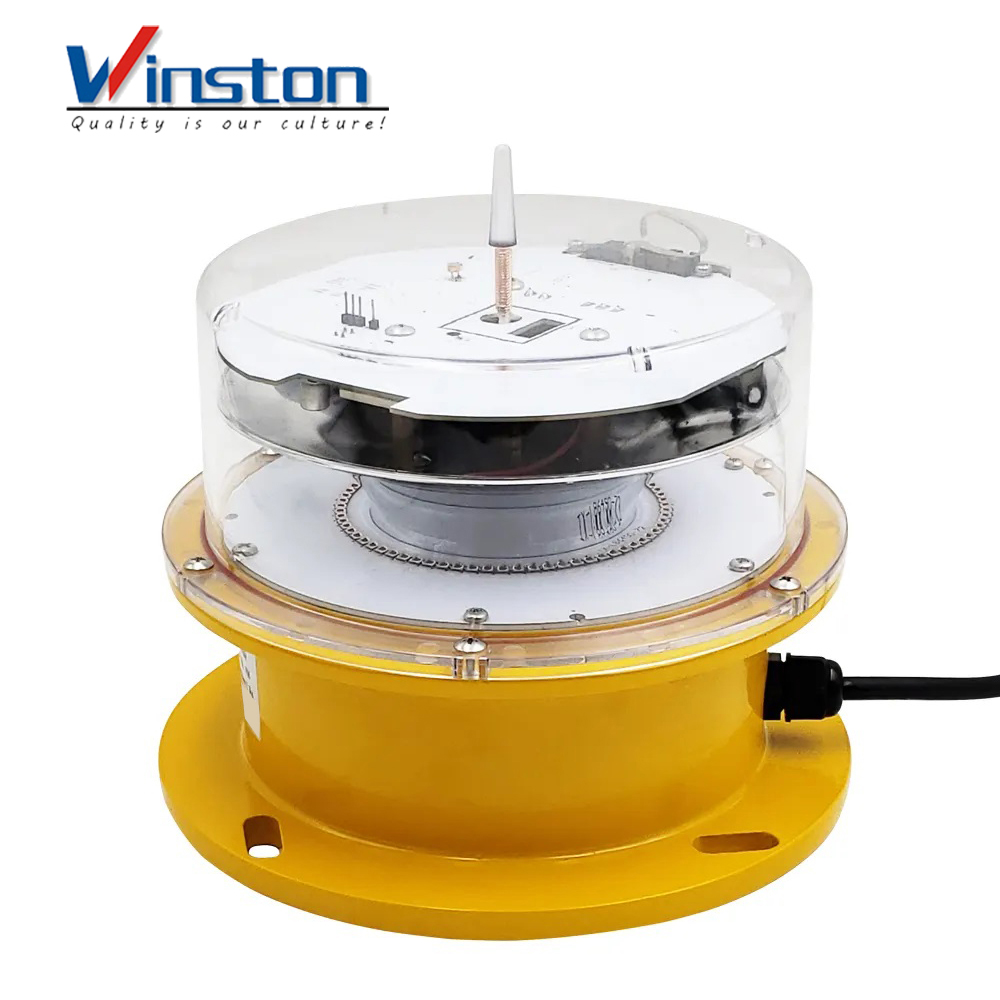

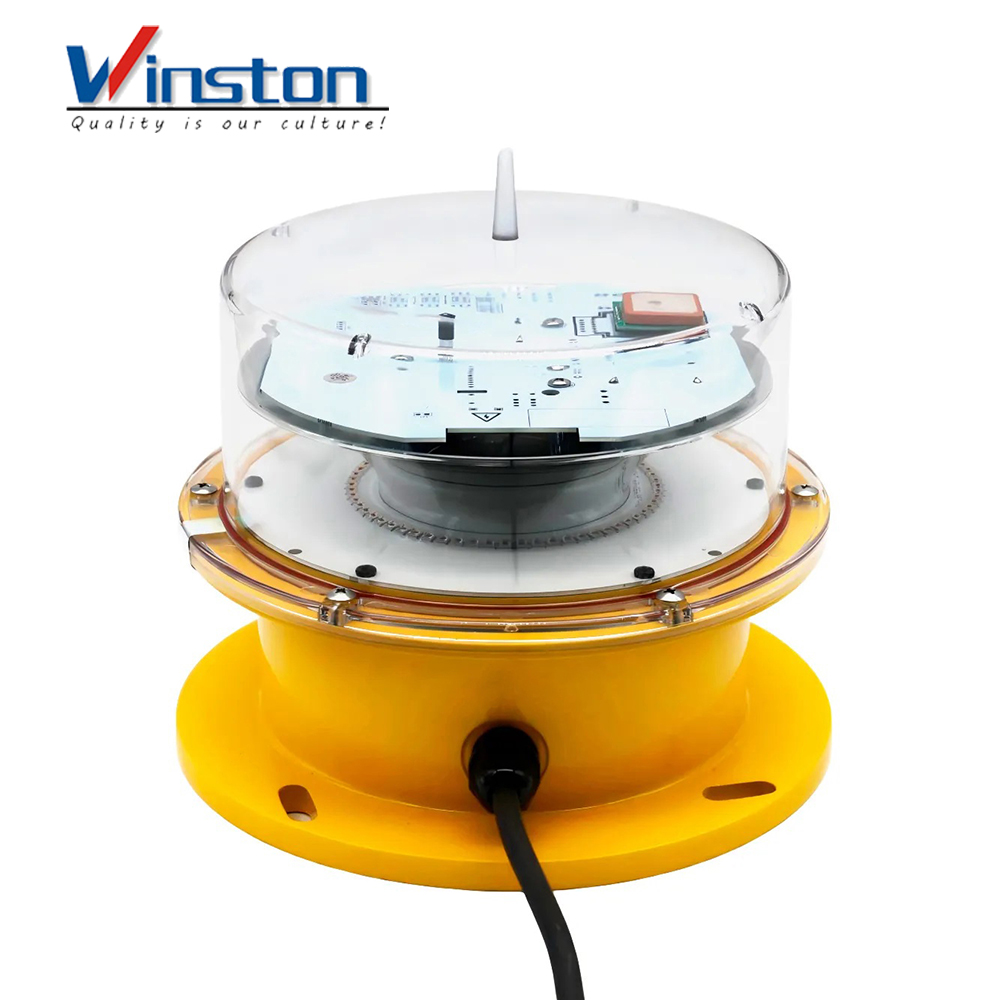

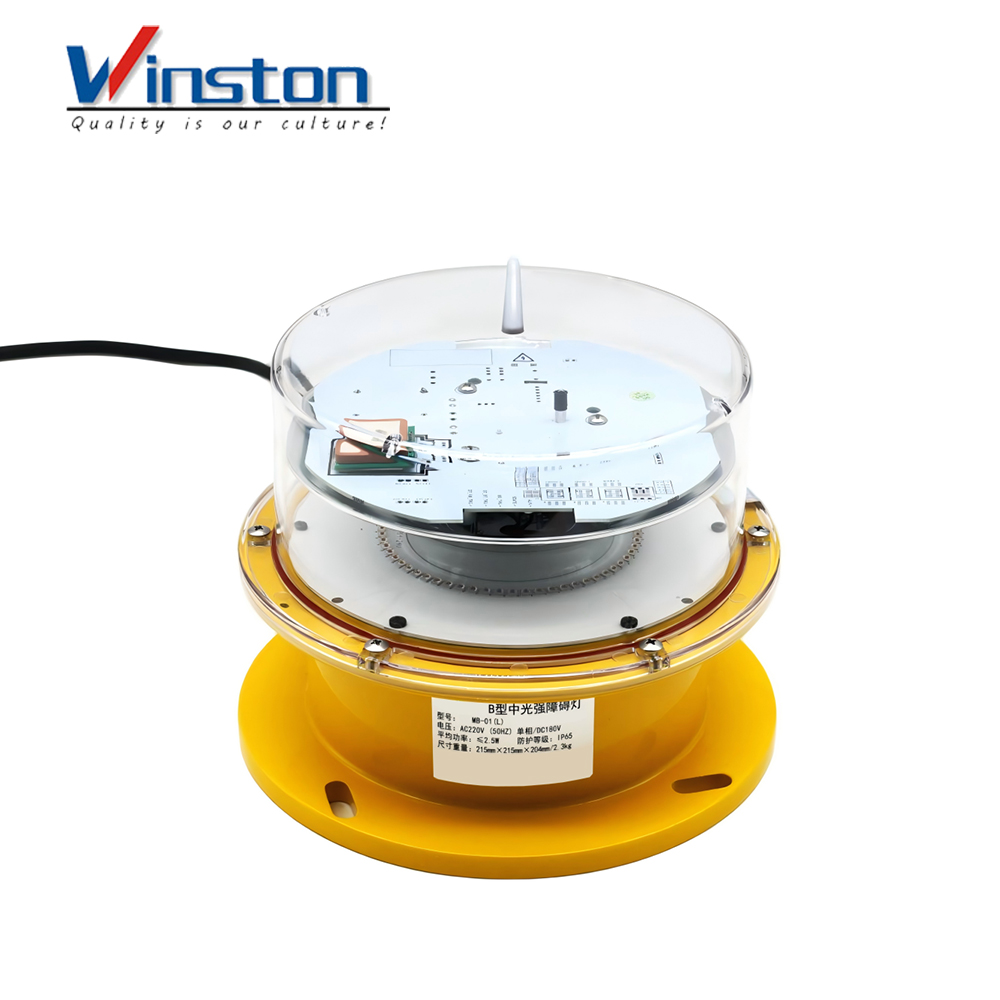

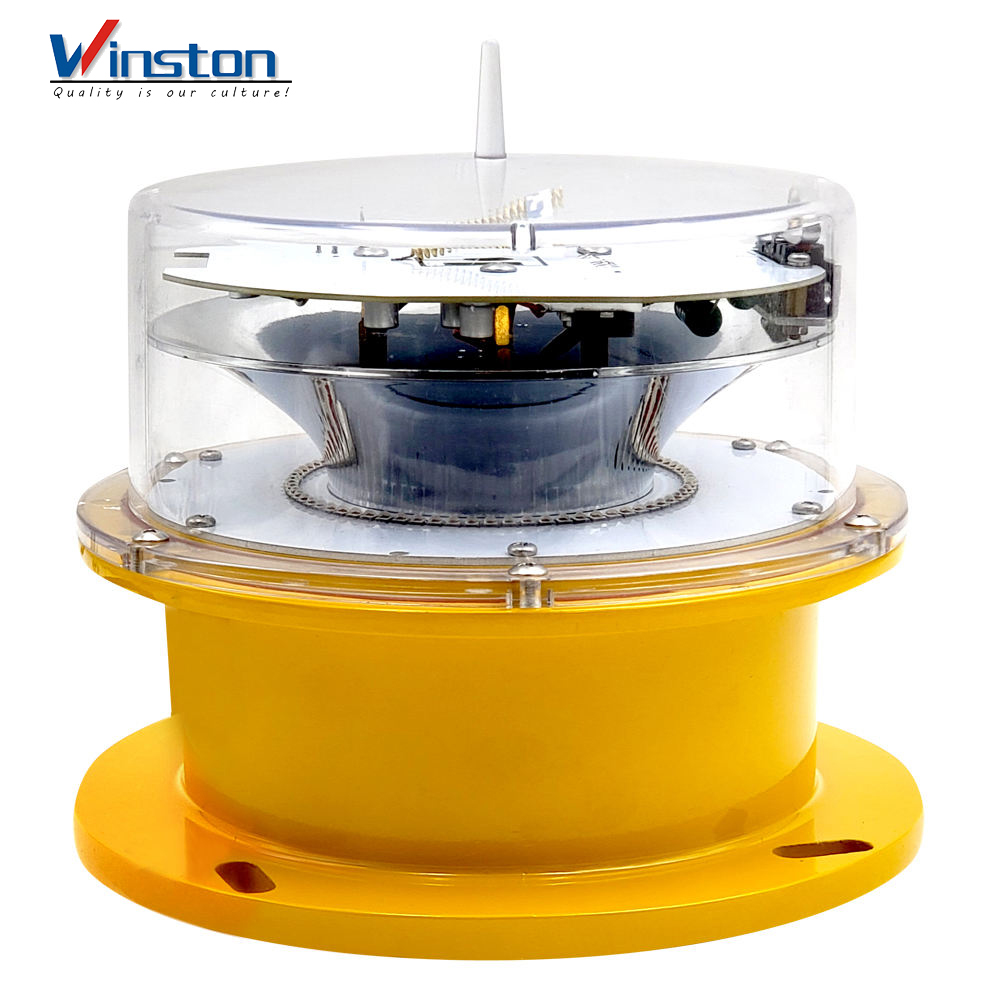

The WST-MB-01(L) is a Medium Intensity Type B obstruction light fully compliant with ICAO standards. Engineered for reliability and longevity, it integrates high-performance LED technology, a rugged aviation-grade housing, and intelligent management circuitry. Designed to withstand extreme environmental conditions, it provides a persistent and highly visible warning signal for structures like towers, bridges, and high-rise buildings, ensuring critical aviation safety.
Key Features
*
Global Compliance: Certified to ICAO standards, ensuring internationally recognized flash characteristics and light intensity for enhanced aviation safety.
* Advanced Optics: Utilizes high-brightness SMT LEDs combined with a reflective optical structure to deliver a precise 2,000 cd light output with a 3° vertical beam divergence and 360° horizontal coverage.
* Rugged & Durable: Features a fully sealed, cast aviation aluminum shell with an IP68 protection rating, capable of resisting typhoons (up to 240 km/h), hail, salt spray, and intense solar radiation.
* Energy Efficient & Long-Lasting: With an average power consumption of ≤2.5W and an LED lifespan exceeding 200,000 hours, it significantly reduces operational costs and maintenance needs.
* Superior Environmental Resilience: Built-in strong lightning and 5KA surge protection, along with over-current protection.Operates reliably in extreme temperatures from -56℃ to +66℃ and offers excellent seismic resistance.
* Smart & Customizable: Optional GPS/Beidou or LORA wireless synchronization (10km range) for synchronized flashing across multiple units. Remote control and monitoring functions are available for centralized management.
Application
Block, Airport, high-pole lamp, Chimney, Bridge, Towers, Communication tower, super high building.
