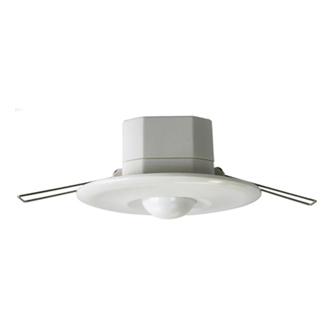

WST-M360S-V2 Microwave Sensor
Power supply: 220-240VAC; 100-130VAC
Power frequency: 50/60Hz
HF system: 5.8GHz CW radar, ISM band
Transmission power: <10mW
Rated load: 3000W (220-240VAC); 1200W(100-130VAC)
Detection angle: 360°
Reach: 2-10m (dia.), adjustable
Time setting: 10sec to 12min
Light control: 10~2000LUX
Power consumption: approx 0.9W
Work temperature: -10°C--+70°C
Connection: N, L, N, L', 1.5mm2 wires
