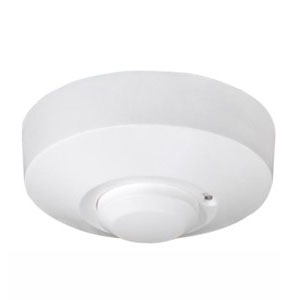

WST-M360S-V1 Microwave Sensor Power source: 220-240V/AC or 100-130V/AC
Power frequency: 50/60Hz
Transmission power: <0.2mW
Rated load:
1200W Max.tungsten(220-240V/AC)
300W Max.fluorescent(220-240V/AC)
600W Max.tungsten(100-130V/AC)
150W Max.fluorescent(100-130V/AC)
Installation sit: indoors, ceiling mounting
Detection angle: 360°
Detection range: 1-8m(radii.) (adjustable)
Time setting: 8sec to 12min (adjustable)
Light-control: 2~2000LUX (adjustable)
Working temperature: -15°C~+70°C
HF system: 5.8GHz CW Electric wave,ISM band
Power consumption: approx.0.5W
