WST-M15-11 AC 220V 16A IP68 Float Switch

Availability:
Quantity:
  • WST-M15-11

TECHNLCAL DATA

Rated voltage  AC 110/220V
Max. Current AC16(4)A
Frequency 50/60Hz
Max. Using Temperature 60℃
Protection Degree IP68

DESCRIPTIONS

Connect the control's blue line to electric pump, black line is connected to zero-line, brown line can not be connected and should be insulated.

11

Auto-drainage and lack-water protection modes

11.

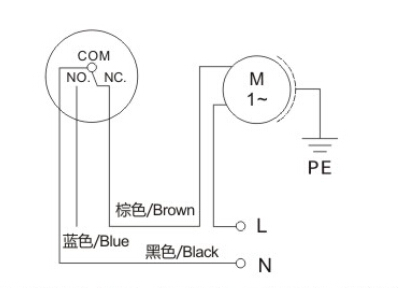

Connect the control's brown line to electric pump,black line is connected to zero-line,blue line can not be connected and should be insulated.


Outline dimension

11...
