SP600 hybrid mppt solar frequency inverter solar invert 380V 220V for solar pump

Availability:
Quantity:
  • SP600
  • Winston

SP600 hybrid mppt solar frequency inverter solar invert 380V 220V for solar pump


Products Description

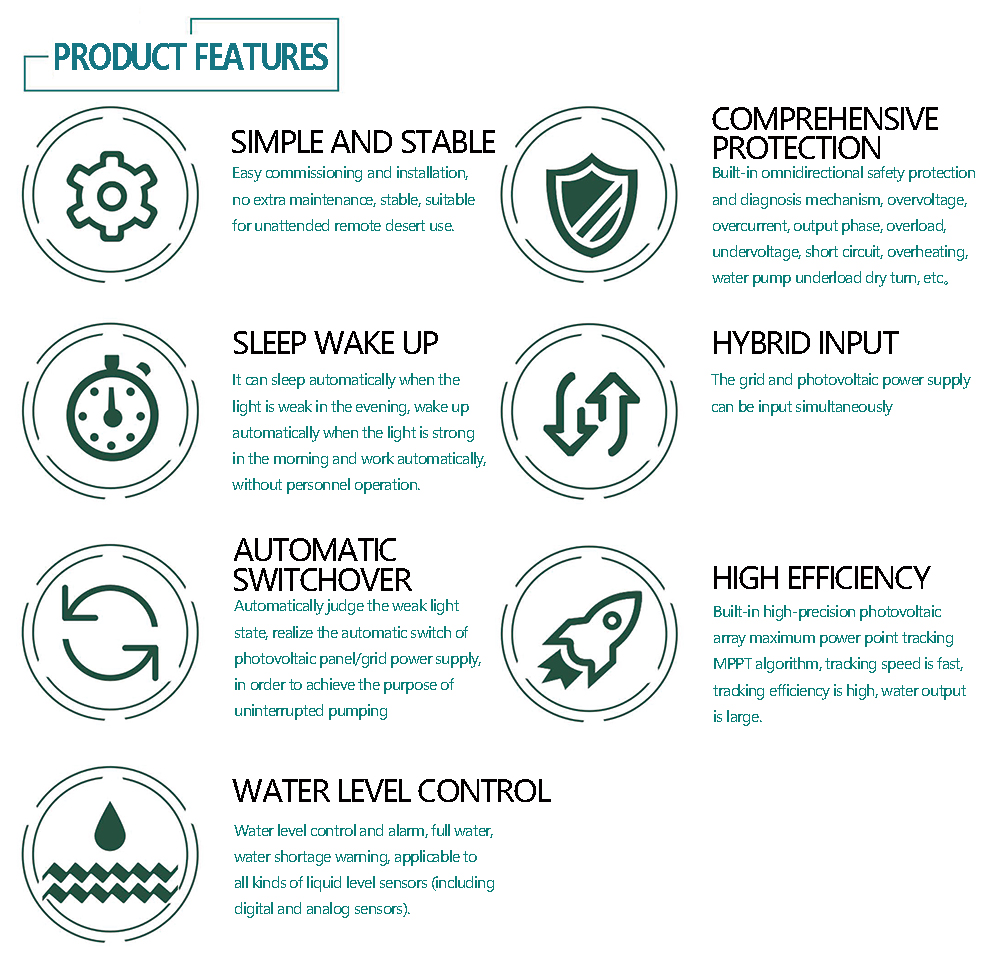

    SP600 recently developed a photovoltaic water supply inverter, mainly used for water supply in remote areas without power supply or unstable power supply. The solar water pump controller can convert the direct current generated by the solar module into alternating current, which is used to drive various water pumps. The system can continuously pump water in good weather. The system does not carry storage devices such as batteries. Therefore, it is recommended to pump water to the reservoir for future use. SP600 inverter adds MPPT MPPT tracking algorithm, which can ensure that the system runs at the MPPT in real time.特点

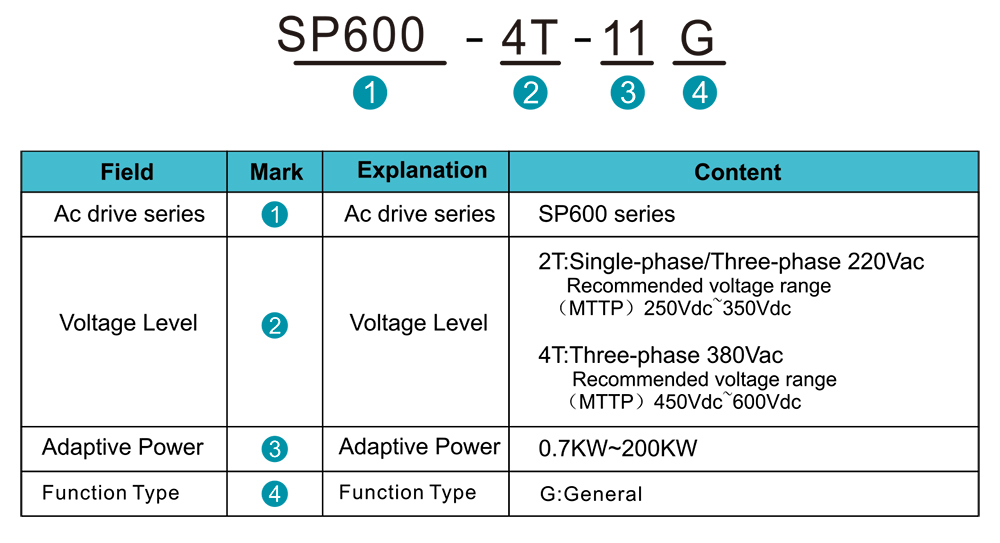

Model Explanation


型号


Specifications


AC220V Input SpecificationsAC220输出

AC380V Input SpecificationsAC380输出

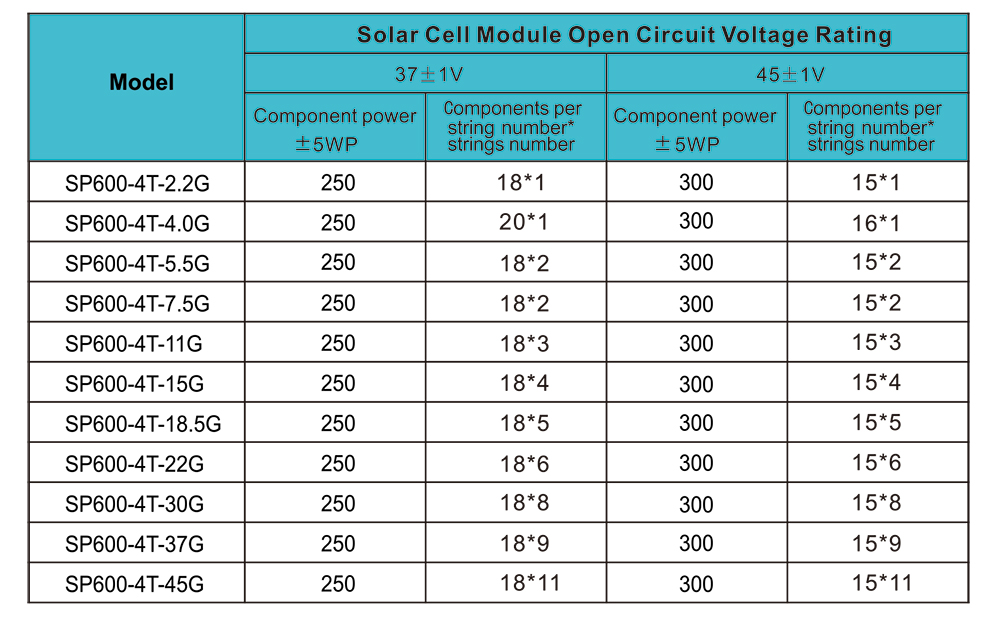

Recommended Battery Module Configuration for Solar Pump Inverter

(only some power sections are listed for reference)参数

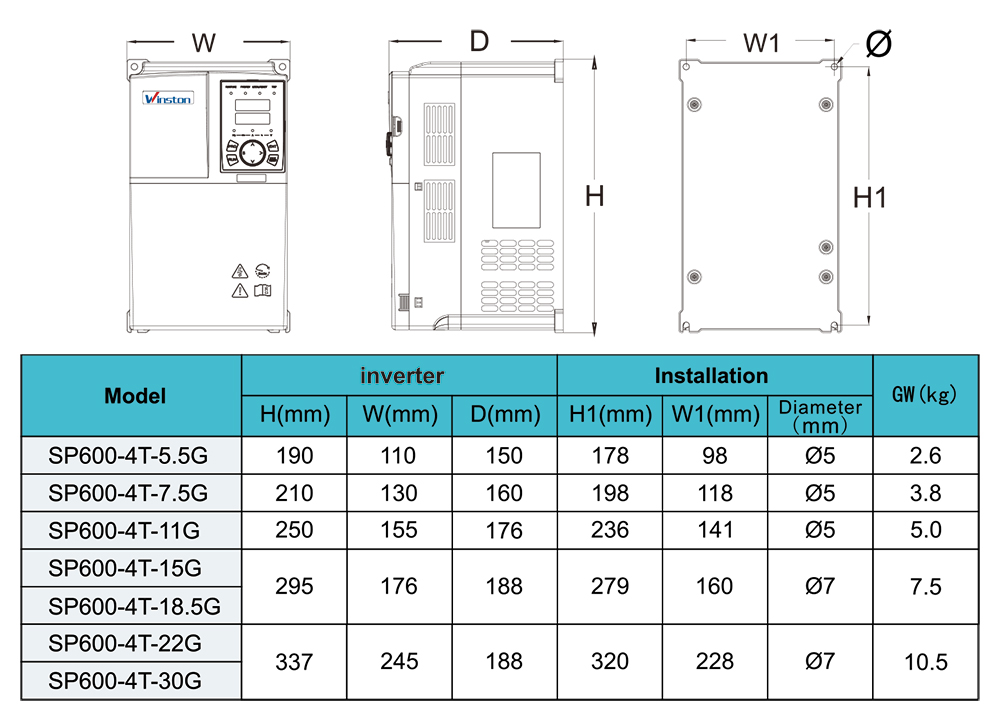

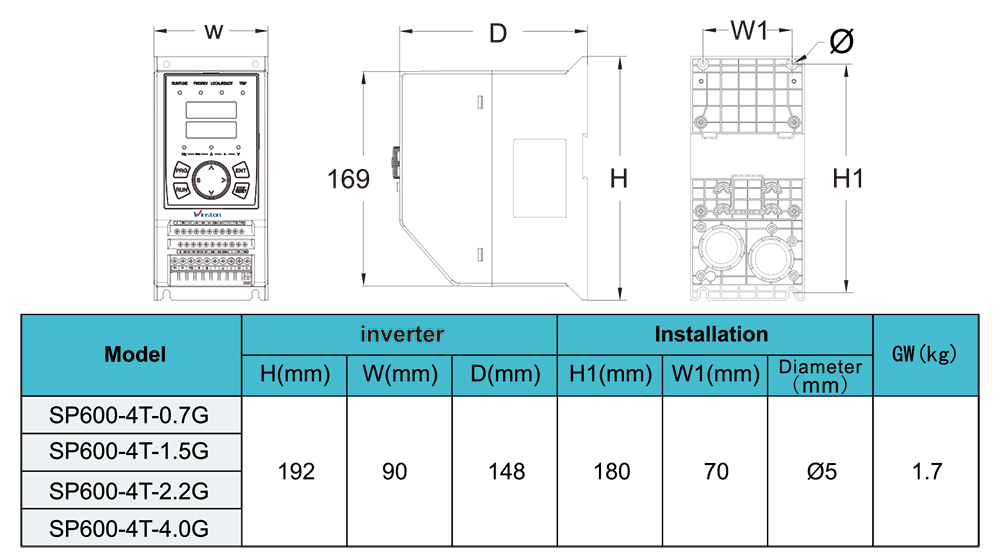

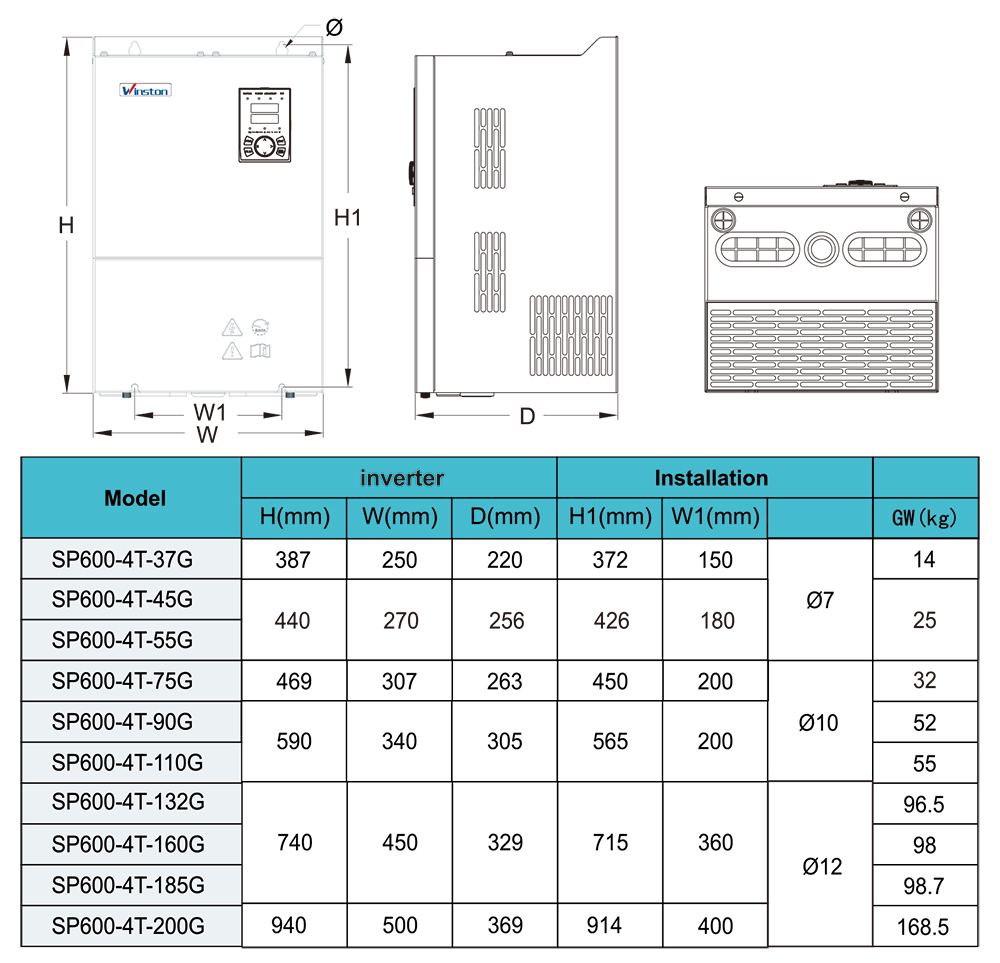

Dimension


尺寸1尺寸2尺寸3

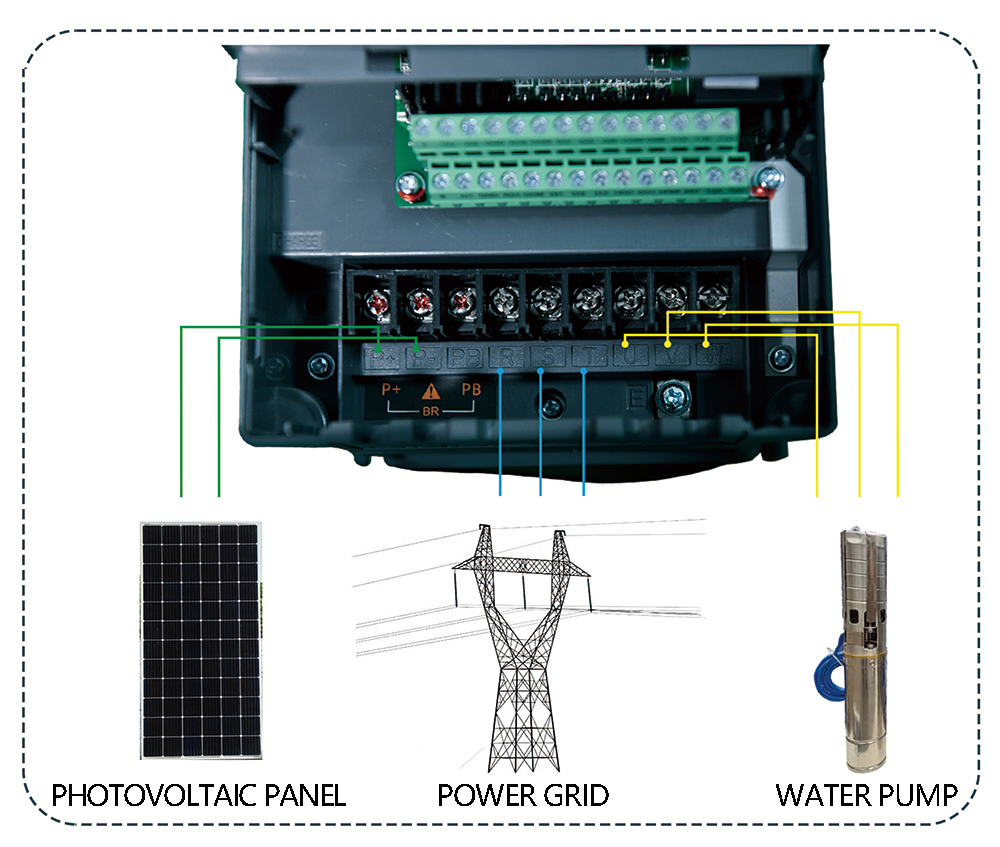

Wiring diagram


接线图接线2


Application


应用


Packaging & Shipping


说明板块_02
