Rock Drill Parts Depth Sensor AB Pulse 12-24VDC IP67 Waterproof Cable for Underground Mining Rig

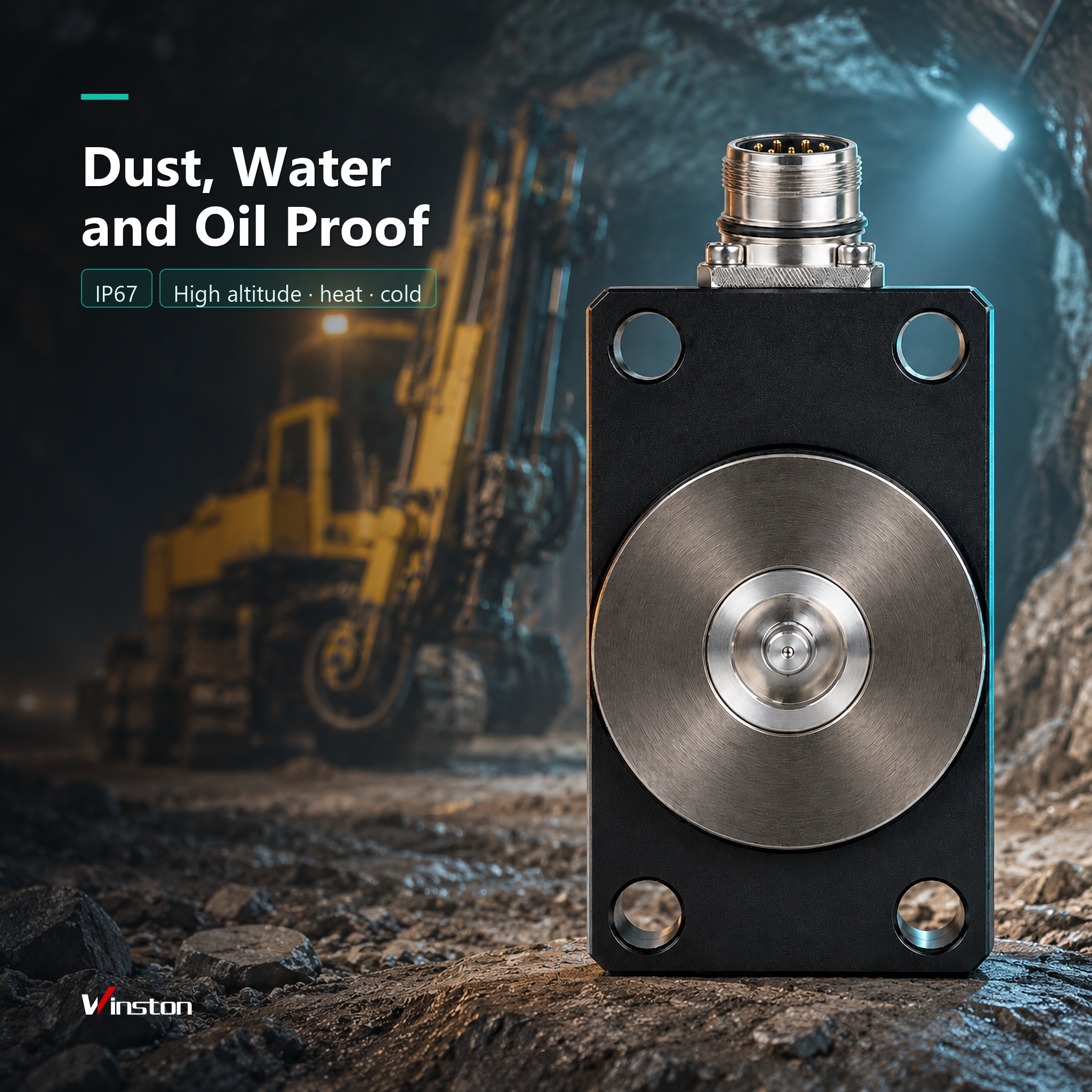

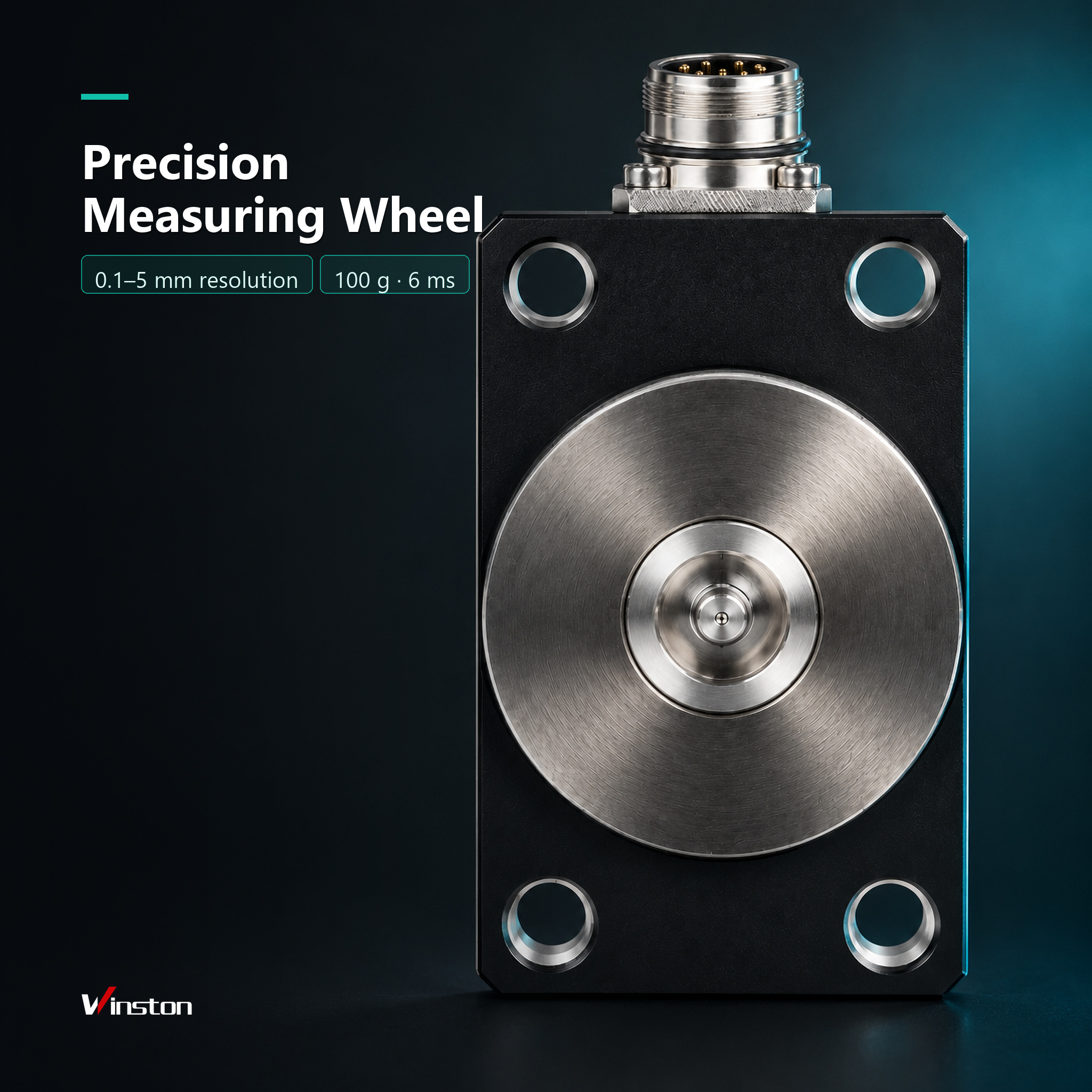

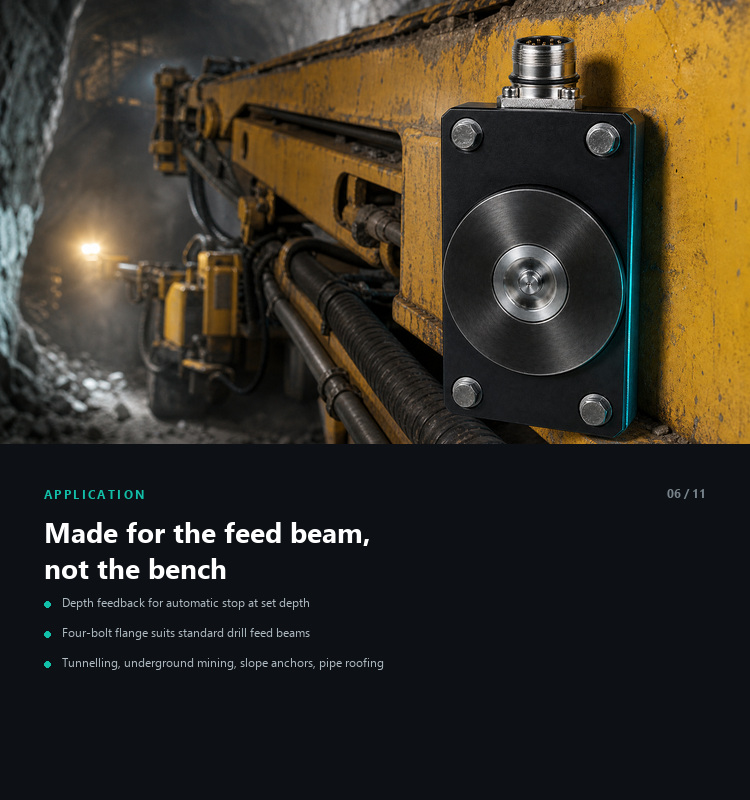

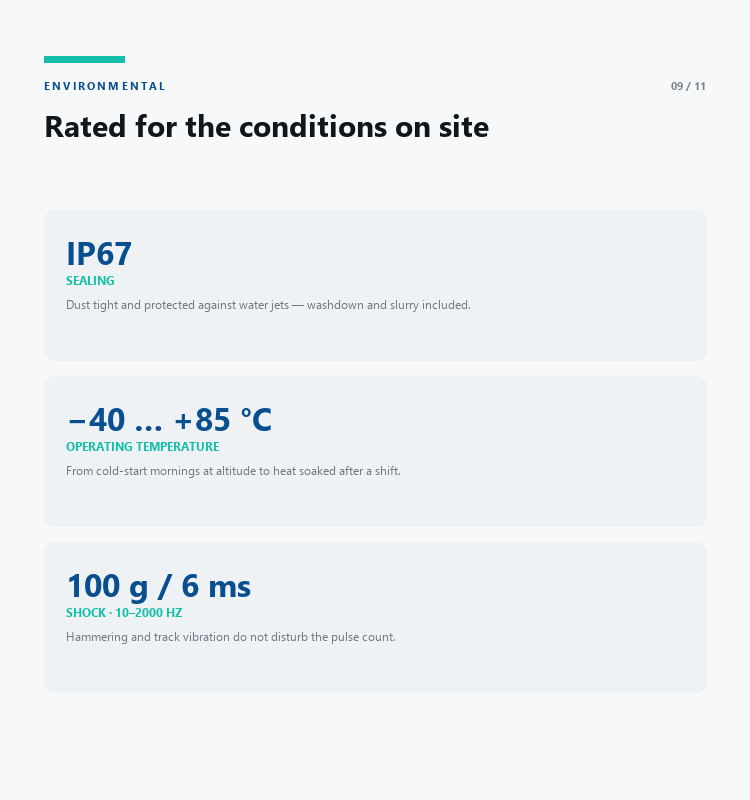

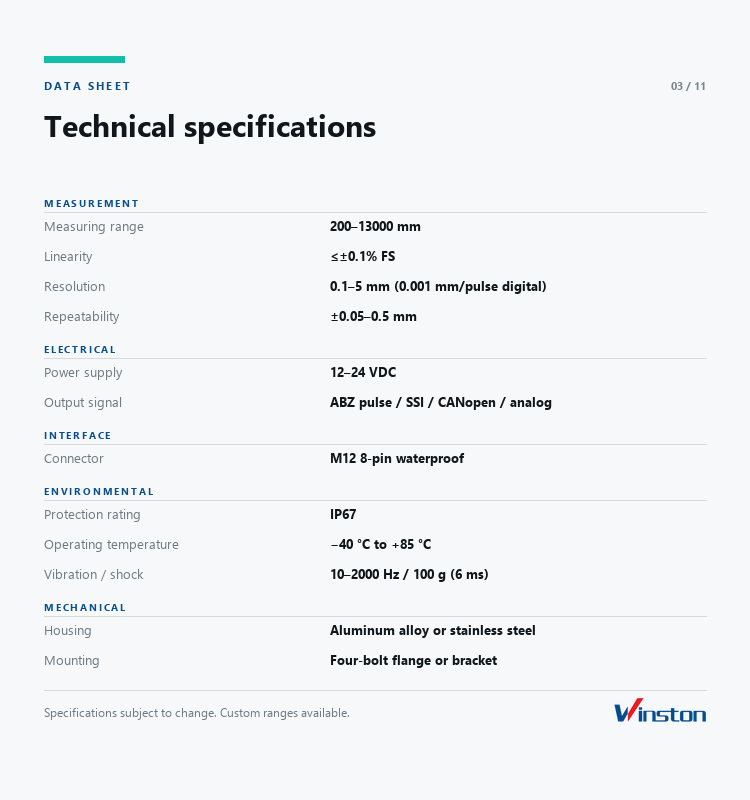

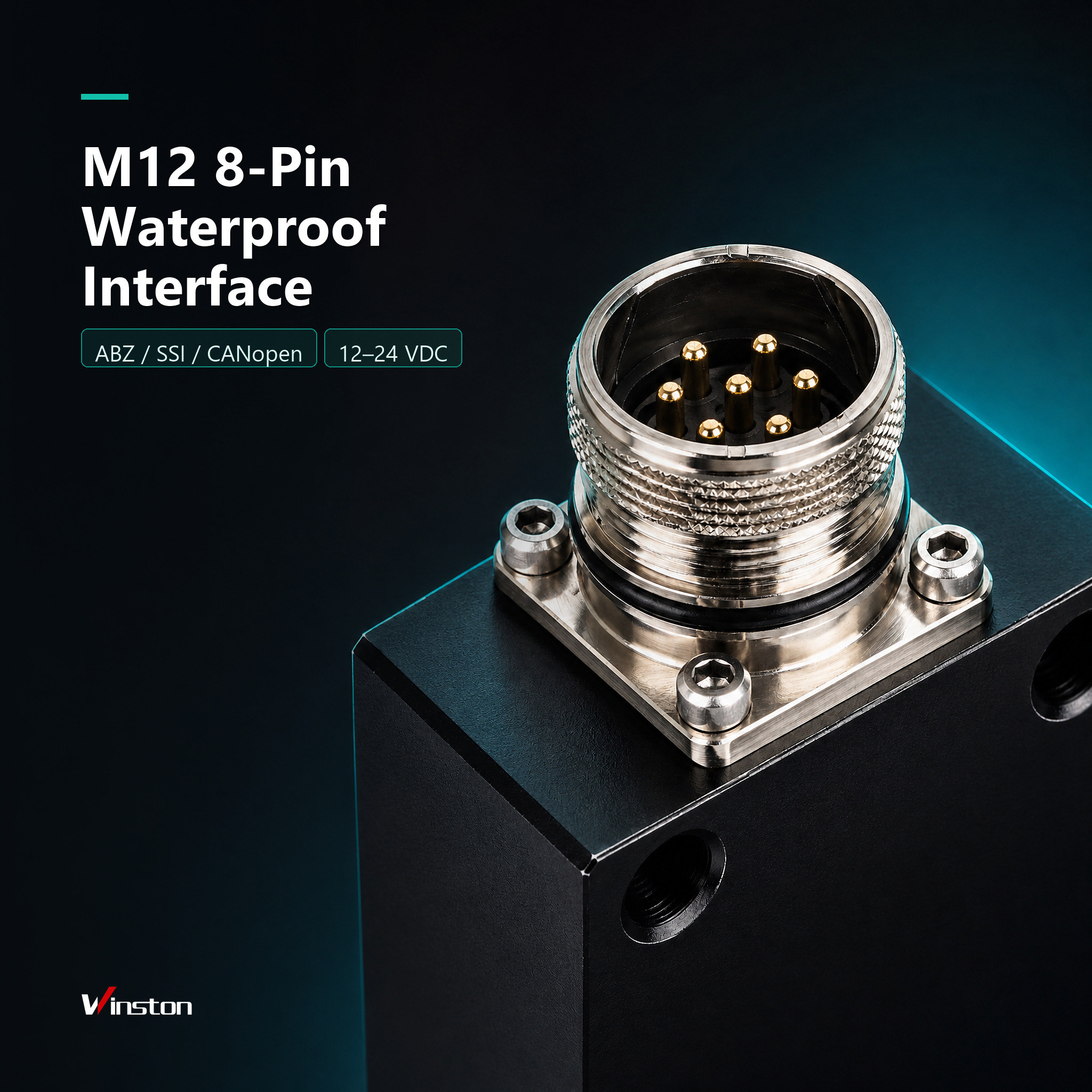

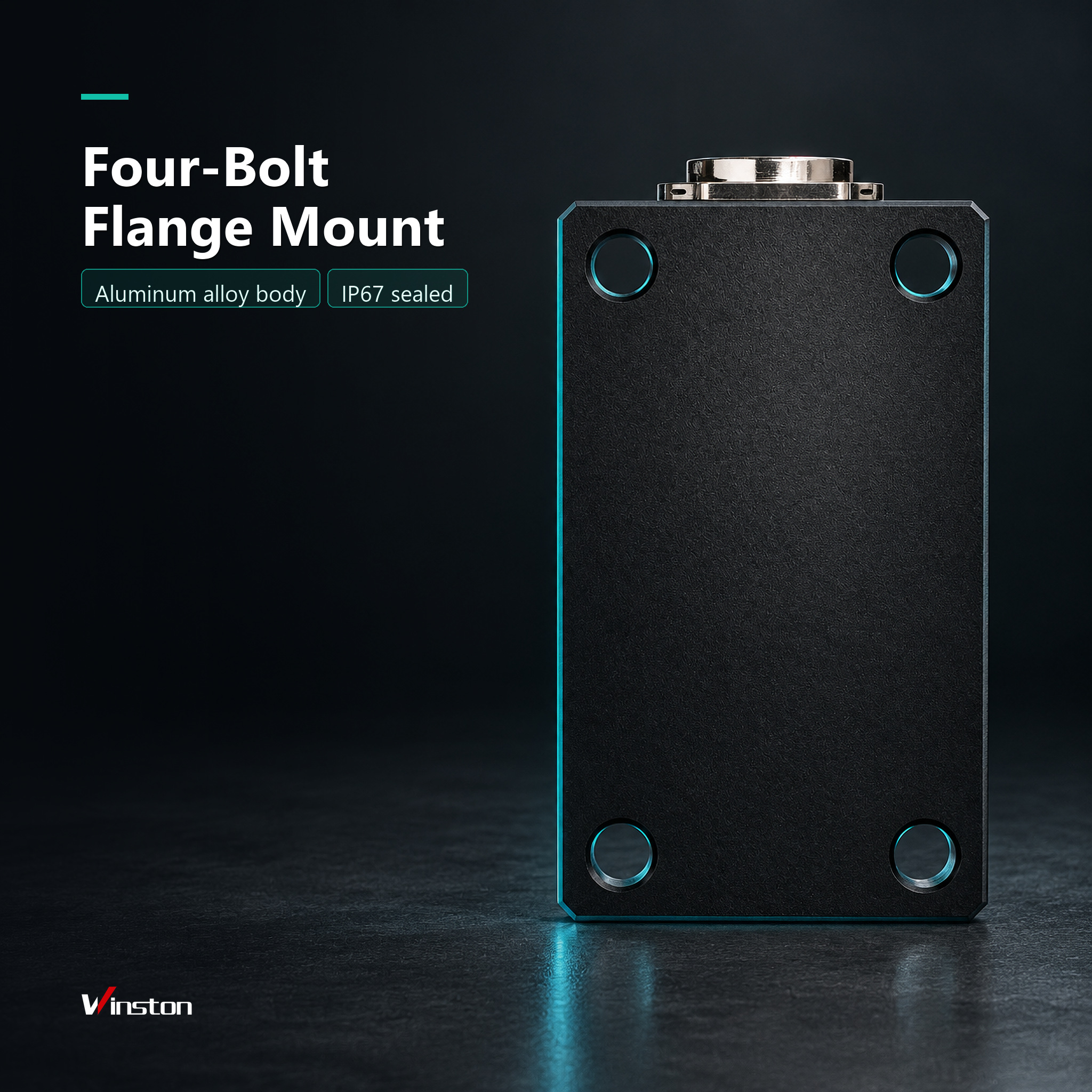

The Winston depth sensor is engineered specifically for underground rock drilling rigs and mining jumbo propulsion beams, delivering high-precision stroke and drilling depth measurement under the harshest working conditions. Utilizing advanced incremental AB square wave pulse technology with a minimal ±30° pulse angle deviation, this sensor guarantees accurate and uninterrupted real-time position feedback for automated drilling and bolting systems. Powered by a standard 12-24 VDC onboard supply, it is housed in a heavy-duty, corrosion-resistant stainless steel and aluminum alloy enclosure equipped with an IP67 waterproof M23 6-pin connector. Built to withstand extreme mechanical vibration (10-2000 Hz) and high-impact shocks up to 100g (6ms), this rugged depth sensor operates seamlessly across an extreme -40°C to +85°C temperature range. Designed as a reliable, direct replacement for imported OEM mining equipment sensors, it features a wear-resistant stainless steel pull cord and versatile flange/bracket mounting, preventing drill rod jamming, optimizing drilling accuracy, and significantly reducing equipment downtime in tunneling and surface mining operations.
