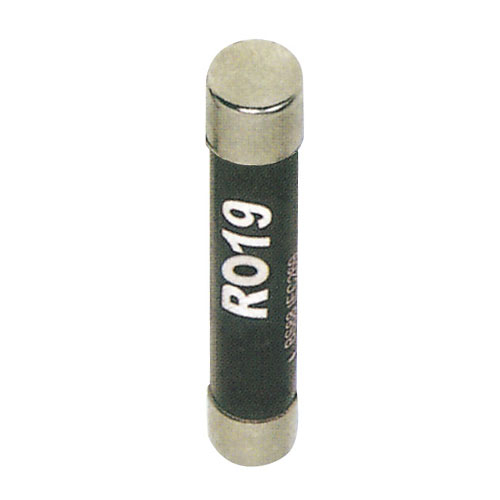

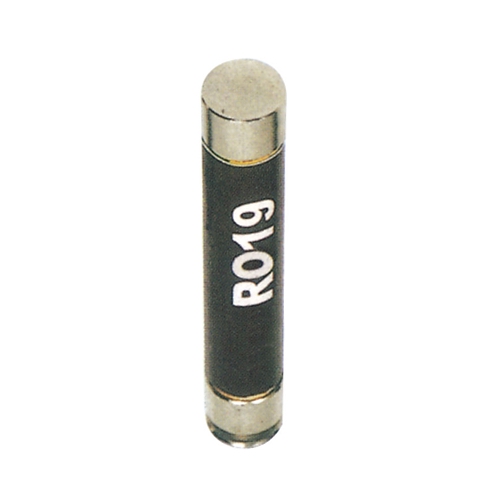

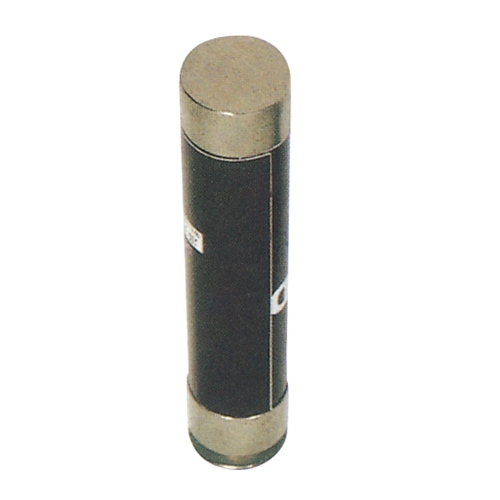

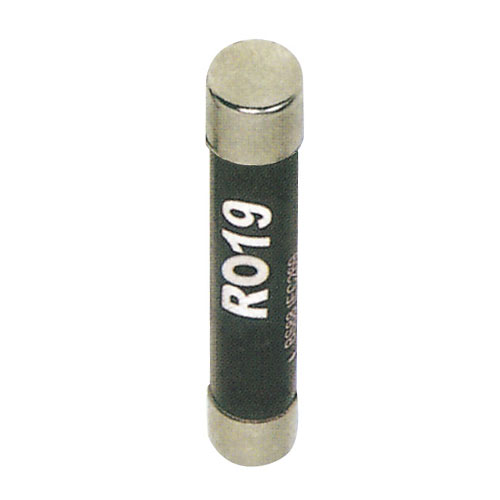

RO19/RO20 Series fuse link

Quantity:
  • RO19/RO20 Series

  • Winston/OEM

  • Made-in-China

  • Export standard carton box

  • PCS

  • 100

  • 3-7days

  • 1

  • T/T


       Type        Rated voltage(V)        Rated cuttent
       RO19A        250/600        0.5,1,2,4,6,10,16,20,25,32
       RO19B        250/600        0.5,1,2,4,6,10,16,20,25,32
       RO19        250/600        0.5,1,2,4,6,10,16,20,25,32
       RO19C        250/600        0.5,1,2,4,6,10,16,
       20,25,30,40,50,63
       RO19D        250/600        0.5,1,2,4,6,10,16,
       20,25,30,40,50,63
       RO20A        250/600        60,70,75,80,100
       RO20        250/600        30,40,50,60,80,100
       RO20B        250/600        100,125,160,200
       RO20C        250/600        60,80,100,125,160,200
       RO20D        250/600        200,250,300,350,400
       RO20E        250/600        100,160,200,250,300,400
       RO20F        250/600        400,450,500,600
       RO20G        250/600        200,250,300,400,500,6000

Outline and installation


       Type        A        B        C        D
       RO19A        76        20.5        -        -
       RO19B        114        20.5        -        -
       RO19        127        20.5        -        -
       RO19C        139        27        -        -
       RO19D        147        27        -        -
       RO20A        149        27        3        19
       RO20        200        34        3        19
       RO20B        181        40        5        28
       RO20C        244        46        5        28
       RO20D        219        53        6        41
       RO20E        295        66        6        41
       RO20F        264        66        6        51
       RO20G        340        80        6        51

ro19-20-1
