RL8（DO）Series screw-type fuse

Quantity:
Inquire Add to Basket

  • RL8（DO）Series

  • Winston/OEM

  • Made-in-China

  • Export standard carton box

  • PCS

  • 100

  • 3-7days

  • 1

  • T/T

Scope of application
It is applicable cricuit of AC50Hz(60Hz), rated voltage up to AC500V, rated current up to 63A used for funtion of the protection against short citucit or overload for electrical installation.
Type and meaning
rl8do-1

rl8do-2
rl8do-3


       Size        Rated current        Dimensions
       d        h

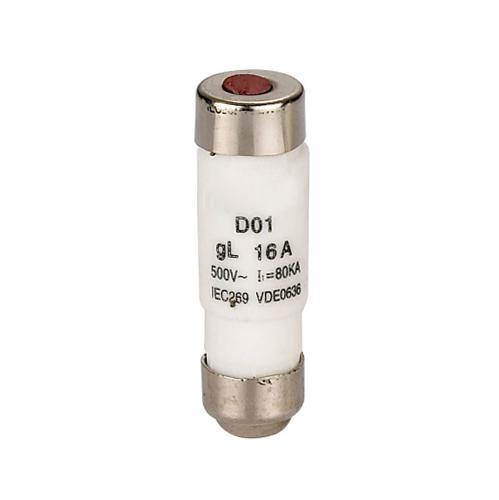

       RL8-16(DO1)        2-16A        11        36

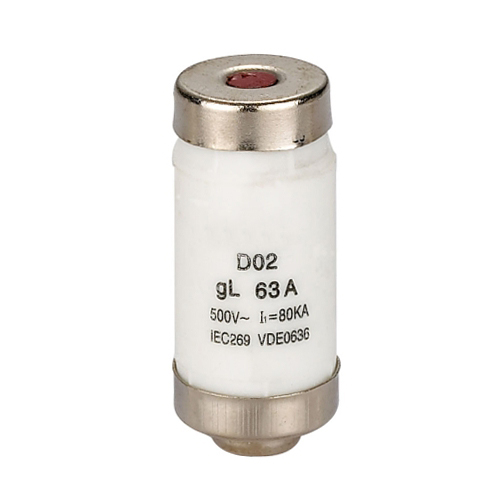

       RL8-32(DO2)        20-63A        15        36

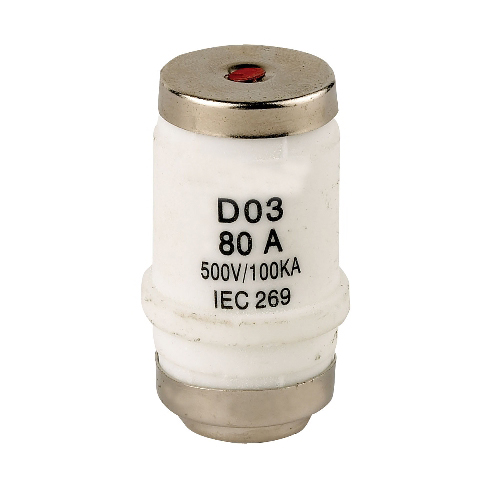

       RL8-63(DO3)        80-100A        22        43


       b681        b682        b683        b684

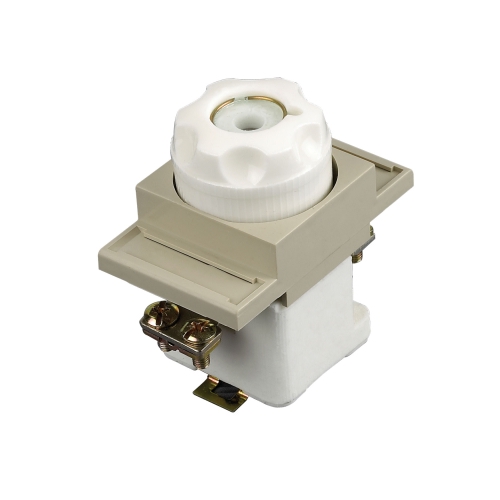

       RL8-16        RL8-32        RL8-63        RL8-32/3P
