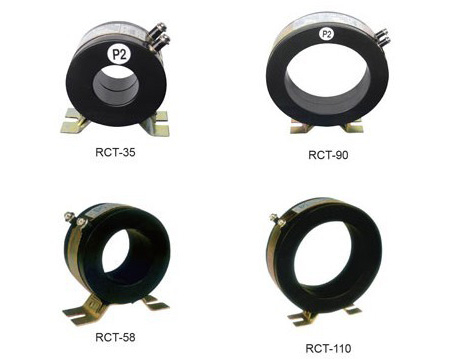

RCT Series
Winston
Made in China
Export standard carton box
PCS
10
7days
1
T/T
Outline Drawing:
Dimension of case:
| Model | A | B | C | D | E | F |
| RCT-35 | 36 | 93 | 78 | 74 | 90 | 53 |
| RCT-58 | 58 | 109 | 99 | 80 | 113 | 57 |
| RCT-90 | 92 | 93 | 138 | 80 | 153 | 45 |
| RCT-110 | 112 | 110 | 165 | 95 | 180 | 45 |
| RCT-130 | 131 | 110 | 181 | 95 | 200 | 45 |
Technical parameter:
| Model | Rated Current(A) | Rated Burden(VA) | Accuracy Class | Rated Voltage(V) | Rated Frequency(Hz) |
| RCT-35 | 20/5A-300/5A | 1.5~5 | 0.5/1.0 | 660 | 50/60 |
| RCT-58 | 300/5A-1000/5A | 5~10 | 0.5/1.0 | 660 | 50/60 |
| RCT-90 | 600/5A-2000/5A | 5~20 | 0.5/1.0 | 660 | 50/60 |
| RCT-110 | 1200/5A-5000/5A | 10~30 | 0.5/1.0 | 660 | 50/60 |
| RCT-130 | 2000/5A-6000/5A | 20~30 | 0.5/1.0 | 660 | 50/60 |
