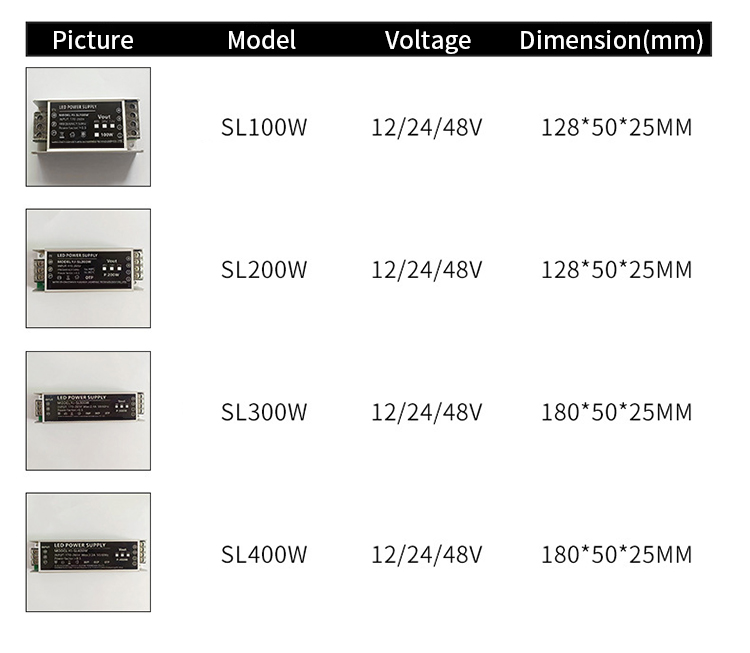

SL Series
Winston
● Ac input voltage range: 170-265VAC
● Dc input voltage range: 240-370VDC
● Overpower does not flash
● Operating temperature range: -20℃ to +50℃
● Power start LED indicator
● Output short circuit, overcurrent, overvoltage
| Input characteristic | ||||||
| project | Working condition | Min. | Typ. | Max. | Unit | |
| Input voltage range | Ac input | 175 | -- | 264 | VAC | |
| Dc input | 240 | -- | 370 | VDC | ||
| Input voltage frequency | 47 | -- | 53 | Hz | ||
| Input current | 230VAC | -- | 0.45 | 0.7 | A | |
| Output characteristic | ||||||
| Output voltage accuracy | Full load range | 12V | -- | ±2.0 | -- | % |
| 24V | -- | ±1.0 | -- | |||
| 48V | -- | ±1.0 | -- | |||
| Linear regulation rate | Rated load | -- | ±0.5 | -- | ||
| Load regulation rate | 0%-100%load | 12V | -- | ±2.0 | -- | |
| 24V | -- | ±1.0 | -- | |||
| 48V | -- | ±0.5 | - | |||
| Minimum load | 0 | -- | -- | % | ||
| Short circuit protection | Short-circuit state, belch type, long - term short-circuit protection, automatic recovery | |||||
| Overcurrent protection | ≥110%-Automatic recovery | |||||
| Overvoltage protection | 12V | ≤18V | The output voltage is off, and the input is restarted and restored | |||
| 24V | ≤33.6≤ | |||||
| 48V | ≤60≤ | |||||
| Structural characteristic | ||||||
| Shell material | Aluminum | |||||

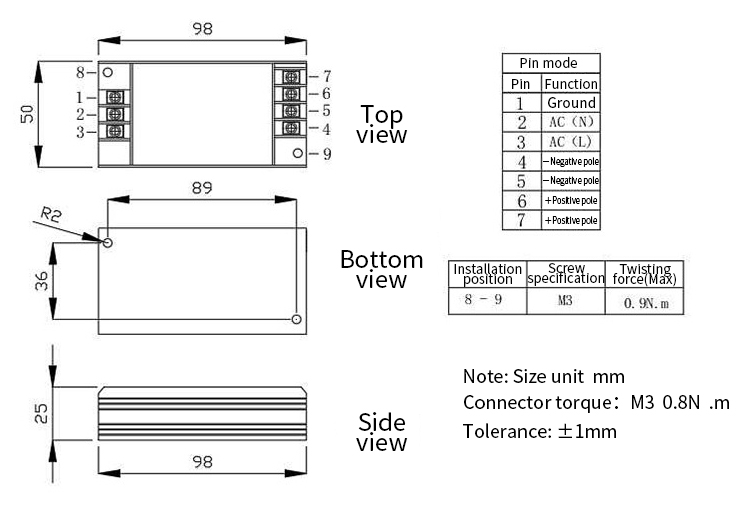

| Overall dimension | 98x50x25mm L x W x H | |||||
| Cooling mode | Natural air cooling | |||||
