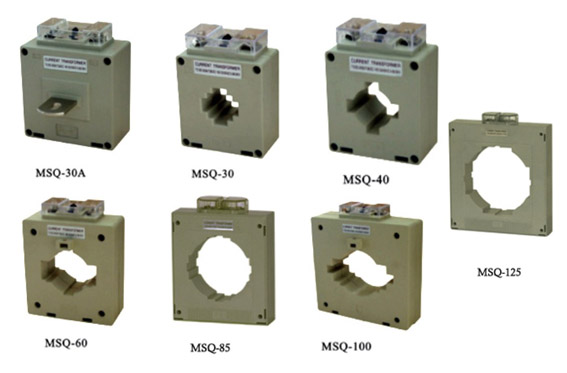

MSQ
Winston
Made in China
Export standard carton box
PCS
10
7days
1
T/T
Outline Drawing
Dimension of case:
| Model | A | B | C | D | E | F | G | H |
| MSQ-30(small) | 60 | 36 | 67 | 17 | 60 | 31 | 10 | 59 |
| MSQ-30 | 75 | 43 | 82 | 17 | 60 | 31 | 10 | 71 |
| MSQ-40 | 75 | 43 | 82 | 17 | 60 | 31 | 10 | 71 |
| MSQ-60 | 101 | 44 | 111 | 17 | 60 | 31 | 10 | 71 |
| MSQ-100 | 145 | 45 | 139 | 17 | 60 | 31 | 10 | 72 |
| MSQ-130 | 196 | 46 | 210 | 17 | 60 | 31 | 11 | 72 |
Technical parameter:
| Model | Rated Current(VA) Primary/Secondary | Busbar Hole Dimension | Rated Burden(VA) | Accruacy Class | Rated Voltage(V) | Rated Frequency(Hz) |
| MSQ-30 | 30/5A-300/5A | 30x10mm | 1.5~2.5 | 3.0~0.5 | 600 | 50/60 |
| MSQ-40 | 150/5A-800/5A | 40x10mm | 5~10 | 1.0~0.5 | 600 | 50/60 |
| MSQ-60 | 400/5A-1200/5A | 60x20mm | 5~10 | 1.0~0.5 | 600 | 50/60 |
| MSQ-100 | 800/5A-3000/5A | 100x10mm | 15 | 1.0~0.5 | 600 | 50/60 |
| MSQ-130 | 1500/5A-5500/5A | 130x10mm | 15 | 1.0~0.5 | 600 | 50/60 |
Outline Drawing
Dimension of case:
| Model | A | B | C | D | E | F | G | H |
| MSQ-30(small) | 60 | 36 | 67 | 17 | 60 | 31 | 10 | 59 |
| MSQ-30 | 75 | 43 | 82 | 17 | 60 | 31 | 10 | 71 |
| MSQ-40 | 75 | 43 | 82 | 17 | 60 | 31 | 10 | 71 |
| MSQ-60 | 101 | 44 | 111 | 17 | 60 | 31 | 10 | 71 |
| MSQ-100 | 145 | 45 | 139 | 17 | 60 | 31 | 10 | 72 |
| MSQ-130 | 196 | 46 | 210 | 17 | 60 | 31 | 11 | 72 |
Technical parameter:
| Model | Rated Current(VA) Primary/Secondary | Busbar Hole Dimension | Rated Burden(VA) | Accruacy Class | Rated Voltage(V) | Rated Frequency(Hz) |
| MSQ-30 | 30/5A-300/5A | 30x10mm | 1.5~2.5 | 3.0~0.5 | 600 | 50/60 |
| MSQ-40 | 150/5A-800/5A | 40x10mm | 5~10 | 1.0~0.5 | 600 | 50/60 |
| MSQ-60 | 400/5A-1200/5A | 60x20mm | 5~10 | 1.0~0.5 | 600 | 50/60 |
| MSQ-100 | 800/5A-3000/5A | 100x10mm | 15 | 1.0~0.5 | 600 | 50/60 |
| MSQ-130 | 1500/5A-5500/5A | 130x10mm | 15 | 1.0~0.5 | 600 | 50/60 |
