MS-190
Winston
8531100000
MS-190DC12V DC24V AC110V AC220V Electric Motor Siren
1.Features:
Electric Moter Alarm Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.
Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
Body standard color : RED
Material : STEEL & ABS
Insulation resistance : 100MΩ(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44
2.Datasheet:
| Model | Voltage | Current(A) | Frequency(Hz) | decibel | Packing Size | QTY | Weight |
| MS-190 | DC12V | 6.00 | 50/60 | 114dB | 57.5*36.5*18.5 cm | 40pcs | 18KGS |
| DC24V | 2.50 | 50/60 | 114dB | 18KGS | |||
| AC110V | 0.9 | 50/60 | 114dB | 20.50KGS | |||
| AC220V | 0.43 | 50/60 | 114dB | 20.50KGS |

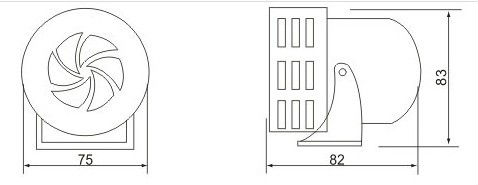

3.Size(mm):
4.More models:
