MCL-380
Winston
8531809000
MCL-380 Motor Alarm Siren
Description
Apply in small elevator, conveyor, the place such as small vessels mechanical warehouse to send signals.
Color:Red&Grey
Material:ABS
Insulation resistance:100MΩ at 500Vdc
Withstand voltage:500VAC,50/60HZ in 1 minute
Power:60W
IP grade:IP44
Technical parameters
| Model | Voltage | Current(A) | HZ | dB(A)1m | Packing size | PCS/CTN | G.W. |
| MCL-380 | DC12V | 17.4 | 900 | 114dB | 48*28*33cm | 20PCS | 16KG |
| DC24V | 8.8 | 900 | 115dB | 16KG | |||
| AC110V | 1.9 | 1000 | 116dB | 22KG | |||
| AC230V | 1.0 | 1050 | 117dB | 22KG |

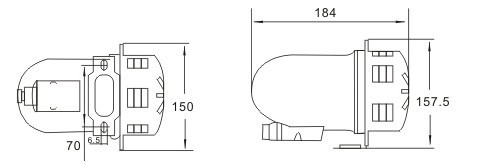

Overall dimensions
MCL-380 Motor Alarm Siren
Description
Apply in small elevator, conveyor, the place such as small vessels mechanical warehouse to send signals.
Color:Red&Grey
Material:ABS
Insulation resistance:100MΩ at 500Vdc
Withstand voltage:500VAC,50/60HZ in 1 minute
Power:60W
IP grade:IP44
Technical parameters
| Model | Voltage | Current(A) | HZ | dB(A)1m | Packing size | PCS/CTN | G.W. |
| MCL-380 | DC12V | 17.4 | 900 | 114dB | 48*28*33cm | 20PCS | 16KG |
| DC24V | 8.8 | 900 | 115dB | 16KG | |||
| AC110V | 1.9 | 1000 | 116dB | 22KG | |||
| AC230V | 1.0 | 1050 | 117dB | 22KG |
Overall dimensions
