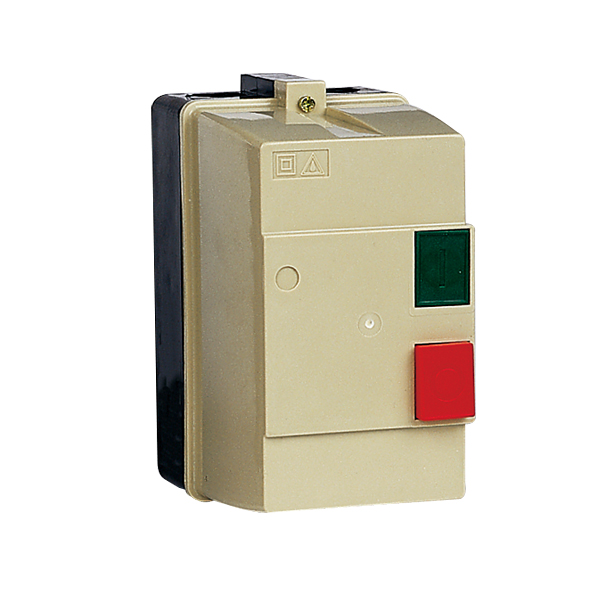

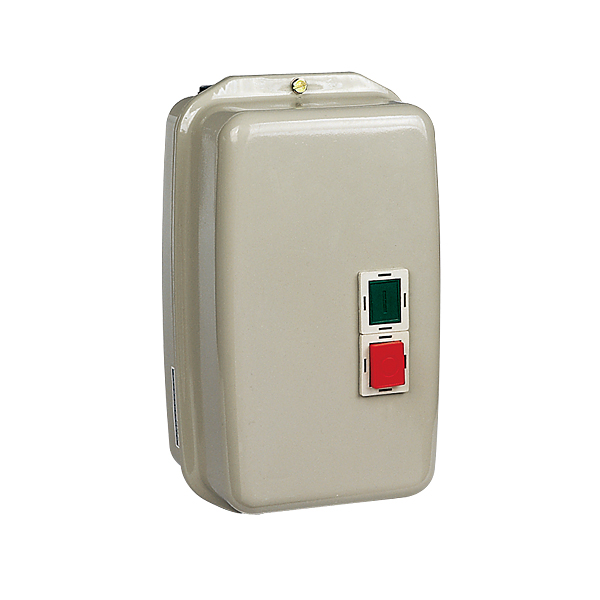

LE1-D (QCX2)
Winston/OEM
Made-in-China
Export standard carton box
PCS
10
3-7days
1
T/T
| Type | Rated Current(A) | Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | |||
| LE1-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | LR2 D1312 LR2 D1314 |
| LE1-D12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 |
| LE1-D18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 |
| LE1-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | LR2 D1322 LR2 D2353 |
| LE1-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | LR2 D2355 |
| LE1-D40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | LR2 D3353 LR2 D3355 |
| LE1-D50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | LR2 D3357 LR2 D3359 |
| LE1-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 |
| LE1-D80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | LR2 D3363 LR2 D3365 |
| LE1-D95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |
| Type | Rated Current(A) | Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | |||
| LE1-D09 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | LR2 D1312 LR2 D1314 |
| LE1-D12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 |
| LE1-D18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 |
| LE1-D25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | LR2 D1322 LR2 D2353 |
| LE1-D32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | LR2 D2355 |
| LE1-D40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | LR2 D3353 LR2 D3355 |
| LE1-D50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | LR2 D3357 LR2 D3359 |
| LE1-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 |
| LE1-D80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | LR2 D3363 LR2 D3365 |
| LE1-D95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |
