KG316T
Winston/OEM
This product is based on user set time, electrical equipment automatic open and close a variety. Control object can be a street lamp, lamp box, neon lamp, production equipment, farming, warehouse ventilation dehumidification. automatic preheating control products, radio and television equipment and so on, high precision, strong anti-nterference industrial chip.
Working voltage | 187-242VAC 50~60Hz |
Power consumption | <1W |
Control power | 6KW |
Rated voltage | 220V |
Timer range | 1 minutes~168 hours |
Time error | ≤ 2S / Day 25℃ |
External battery | 1.5V (Available for 10 years) |
Regular times | 16 times ON/OFF (Day/Week) |

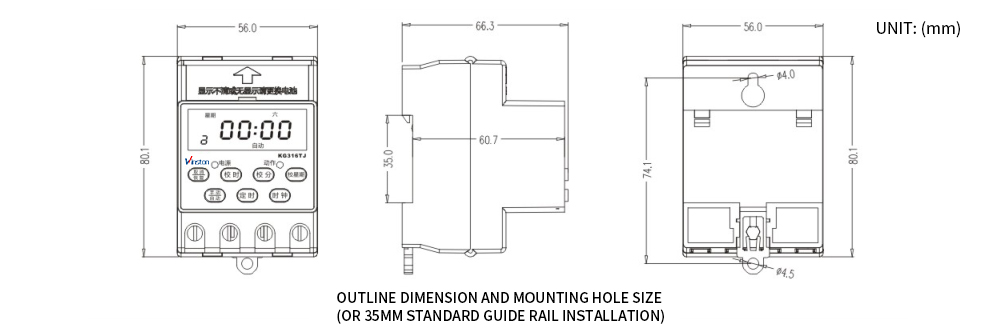

Dimension | 80.1×50×66.3 mm |
Installation | Screwed with M3、 2pcs |
This product is based on user set time, electrical equipment automatic open and close a variety. Control object can be a street lamp, lamp box, neon lamp, production equipment, farming, warehouse ventilation dehumidification. automatic preheating control products, radio and television equipment and so on, high precision, strong anti-nterference industrial chip.
Working voltage | 187-242VAC 50~60Hz |
Power consumption | <1W |
Control power | 6KW |
Rated voltage | 220V |
Timer range | 1 minutes~168 hours |
Time error | ≤ 2S / Day 25℃ |
External battery | 1.5V (Available for 10 years) |
Regular times | 16 times ON/OFF (Day/Week) |
Dimension | 80.1×50×66.3 mm |
Installation | Screwed with M3、 2pcs |
