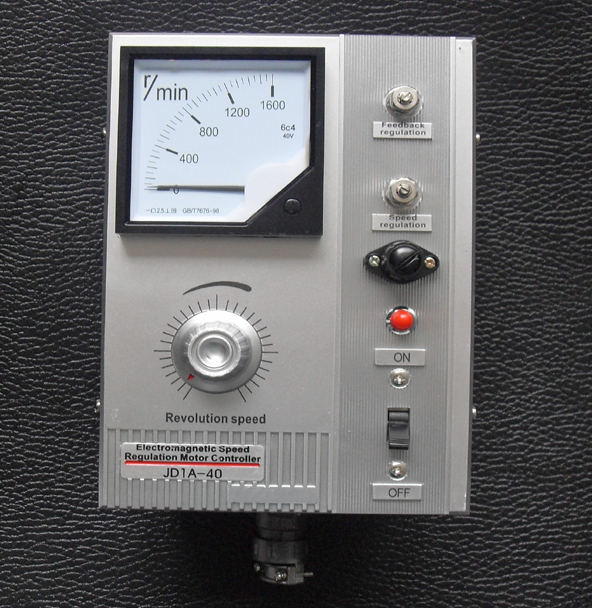

JD1A series control motor controller is original machinery industry national unity (uniform) design products, to electromagnetic adjustable-speed motor (sliding motor speed control, realize) constant torque stepless speed regulation. Working conditions: Altitude not exceeding 1000m Ambient temperature:-5~40 degree C Relative humidity not more than 90% (below 20 degree C) Frequency range:10HZ~150HZ,the maxi vibration not more than 0.5g Voltage fluctuation<10% rating,operating is guaranteed The working place shall have no conductive gas
JD1A series control motor controller is original machinery industry national unity (uniform) design products, to electromagnetic adjustable-speed motor (sliding motor speed control, realize) constant torque stepless speed regulation. Working conditions: Altitude not exceeding 1000m Ambient temperature:-5~40 degree C Relative humidity not more than 90% (below 20 degree C) Frequency range:10HZ~150HZ,the maxi vibration not more than 0.5g Voltage fluctuation<10% rating,operating is guaranteed The working place shall have no conductive gas
Model
JD1A-11
JD1A-40
JD1A-90
Voltage
AC220V+-10%, 50Hz
Rated output
DC90V 3.15A
DV90V 5A
DC90V 6.5A
Controlable Motor power
0.55-11kW
15-40KW
45-90KW
Test power generator
single or 3 phase, Speed ration >2V/100min
Speed variation
≥3%
Accuracy of stable speed
≥1%
Speed Range
1420-100turn/min
1420-100turn/min
1420-130turn/min
Standard
GB14048.6-2008
Certificate
CCC
Model
JD1A-11
JD1A-40
JD1A-90
Voltage
AC220V+-10%, 50Hz
Rated output
DC90V 3.15A
DV90V 5A
DC90V 6.5A
Controlable Motor power
0.55-11kW
15-40KW
45-90KW
Test power generator
single or 3 phase, Speed ration >2V/100min
Speed variation
≥3%
Accuracy of stable speed
≥1%
Speed Range
1420-100turn/min
1420-100turn/min
1420-130turn/min
Standard
GB14048.6-2008
Certificate
CCC
