WST7 series
Winston
Products Description
■ It is applicable for special waterproof, dustproof andcorrosion-proof locations
■ Executive standard: IEC60529,EN 60309. IP67
■ Holes can be opened at will according to user needs, complete specifications, easy to install

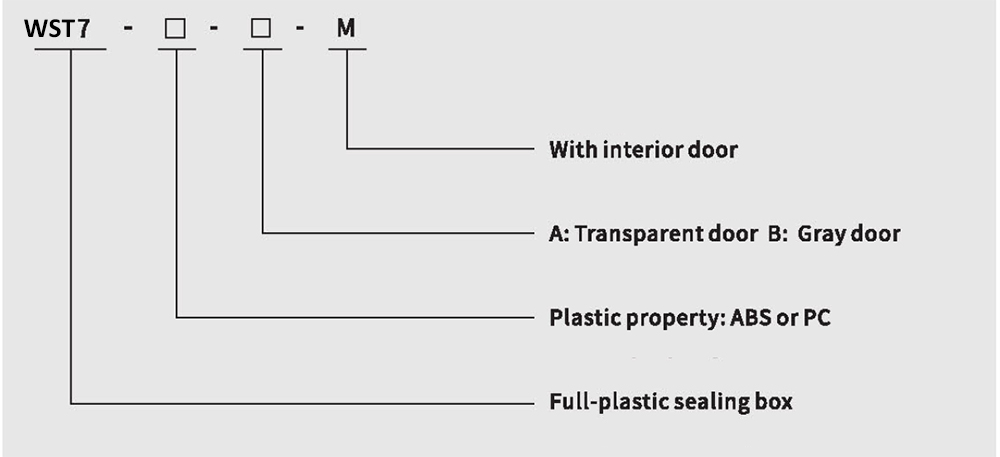

Model Explanation

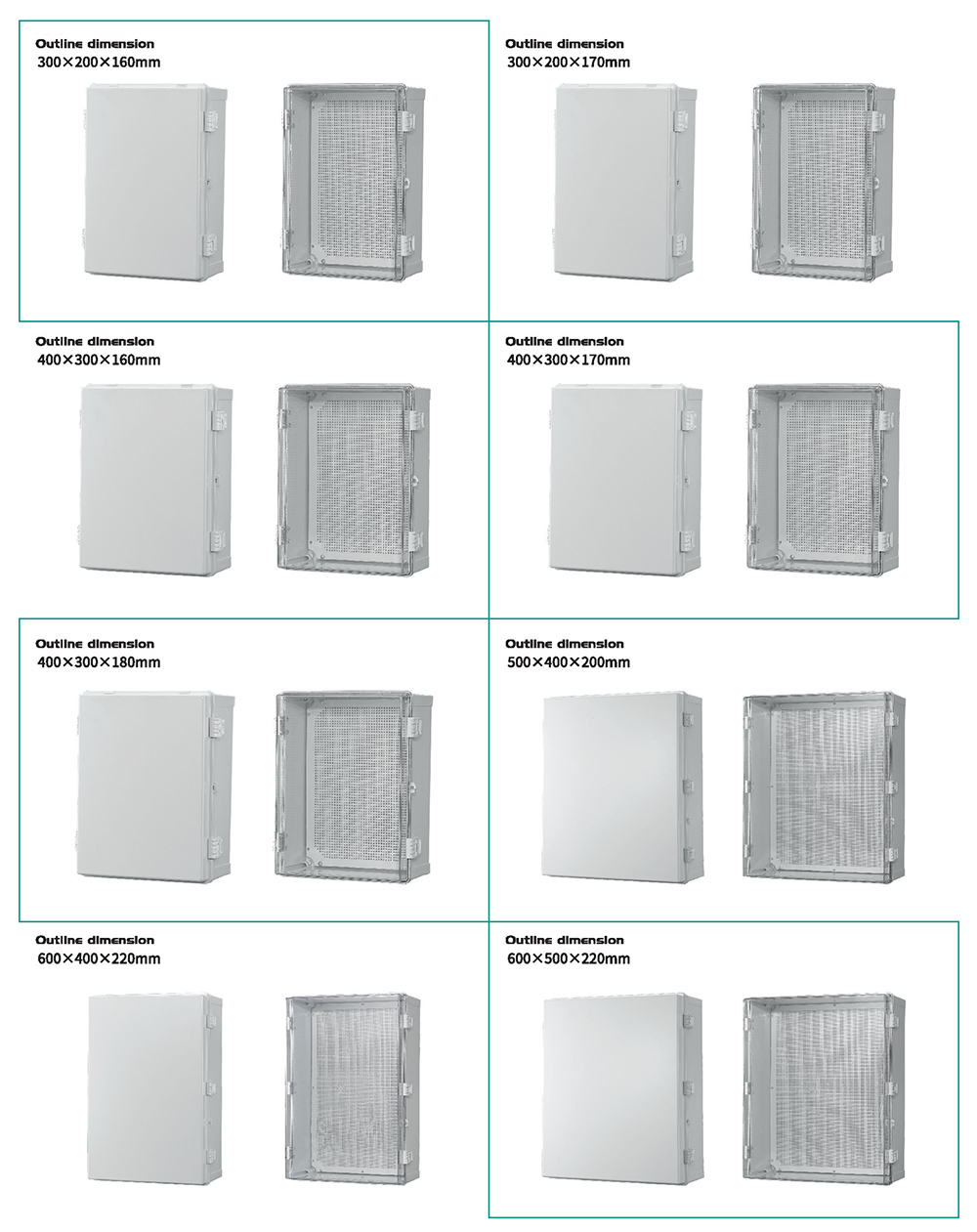

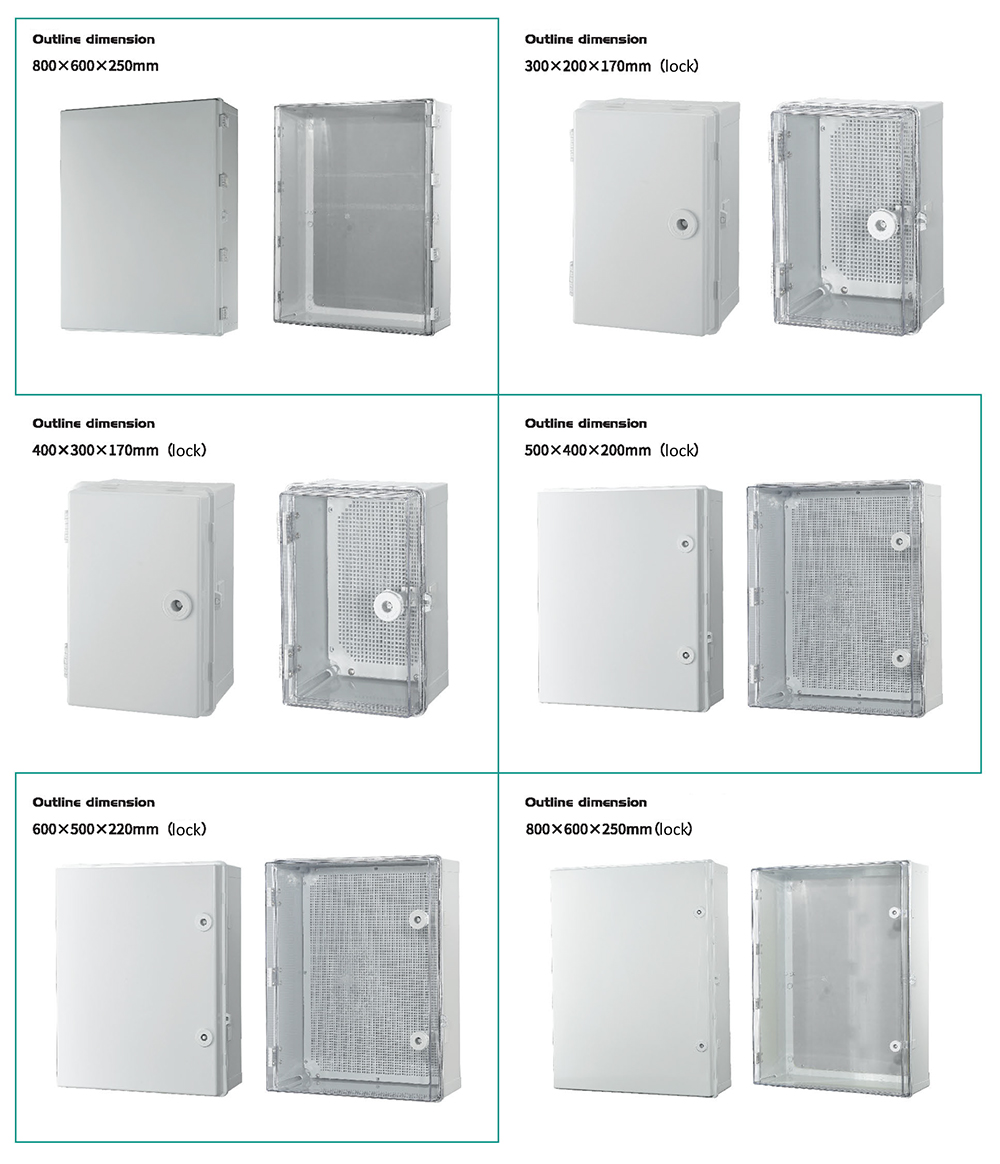

Dimension
Model of product | Outline dimension (mm) | ||
A | B | C | |
WST7-ABS-A | 200 | 300 | 160 |
200 | 300 | 170 | |
300 | 400 | 160 | |
300 | 400 | 170 | |
300 | 400 | 180 | |
400 | 500 | 200 | |
500 | 600 | 220 | |
600 | 800 | 250 | |
WST7-ABS-B | 200 | 300 | 170 |
300 | 400 | 170 | |
400 | 500 | 200 | |
400 | 600 | 220 | |
500 | 600 | 220 | |
600 | 800 | 250 | |
WST7-PC-A | 200 | 300 | 170 |
300 | 400 | 170 | |
400 | 500 | 200 | |
500 | 600 | 220 | |
600 | 800 | 250 | |
WST7-PC-B | 200 | 300 | 170 |
300 | 400 | 170 | |
400 | 500 | 200 | |
500 | 600 | 220 | |
600 | 800 | 250 | |
WST7-ABS-A-M | 200 | 300 | 170 |
300 | 400 | 170 | |
400 | 500 | 200 | |
500 | 600 | 220 | |
600 | 800 | 250 | |
WST7-PCA-M | 200 | 300 | 170 |
300 | 400 | 170 | |
400 | 500 | 200 | |
500 | 600 | 220 | |
600 | 800 | 250 |
