High Quality NES-150W AC LED Power Supplies Device With 2 Years Warranty

Availability:
Quantity:
  • NES-150W

  • Winston

Technic data



1.Product Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.



2.Specification:




MODEL

NES-150-5

NES-150-12

NES-150-15

NES-150-24

NES-150-48

DC VOLTAGE

5V

12V

15V

24V

48V

CURRENT RANGE

0 ~ 30A

0 ~ 12.5A

0 ~ 10A

0 ~ 6.5A

0 ~ 3.3A

EFFICIENCY

78%

83%

84%

86%

86%

WAVE & NOISE

80mVp-p

120mVp-p

120mVp-p

120mVp-p

150mVp-p
ADJUSTABLE RANGE FOR DC VO;LTAGE
±10%

±10%

±10%

±10%

±10%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE HOLD UP TIME

800ms, 60ms,50ms/230VAC at full load

VOLTAGE RANGE

90~132VAC/180~264VAC by switch 254~370VDC

FREQUENCY RANGE

47 ~ 63Hz

IMPACT CURRENT

Cold start current 45A/230VAC

WORKING TEMP.

-10 ~ +50ºC

OVERLOAD PROTECTION

105%-160% cut off the output , automatic recovery

OVER VOLTAGE PROTECTION

115%-135%shunt down O/P voltage,re-power on to recover

WITHSTAND VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100M Ohms

DIMENSION

199*98*38mm (L*W*H)

WERIGHT

0.75kg

PACKING

43*32.5*24cm/30pcs/21kg

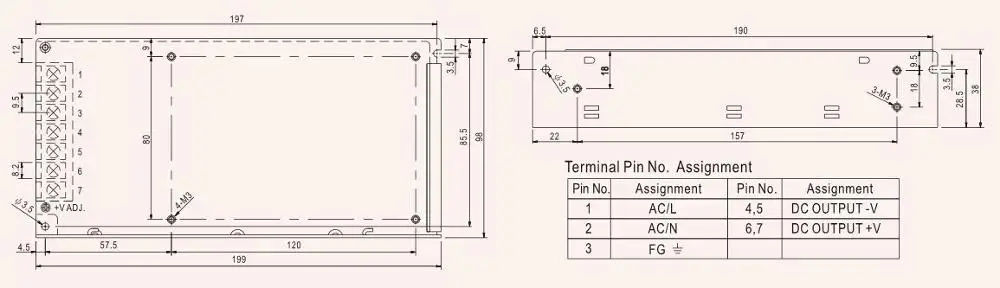

Dimension
