Flexible Shaft Coupling Jaw Type Coupling

Availability:
Quantity:
  • LF
  • Winston

Flexible Shaft Coupling Jaw Type Coupling


Products Description


When it is firm, zero backlash torque transmission can be realized under the condition of low button torque.
For simple disassembly and assembly type, the shaft sleeve can be installed and disassembled simply.
Excellent elastic effect, can absorb vibration, eccentricity and deflection angle.
It has electrical insulation.
There are three kinds of hardness of the elastic spacer.
The torque and error adjustment amount can be selected according to the service conditions.
Product uses: shaft slide, indexing table, machine tool, injection molding machine, handling equipment, dispensing machine


Model Explanation

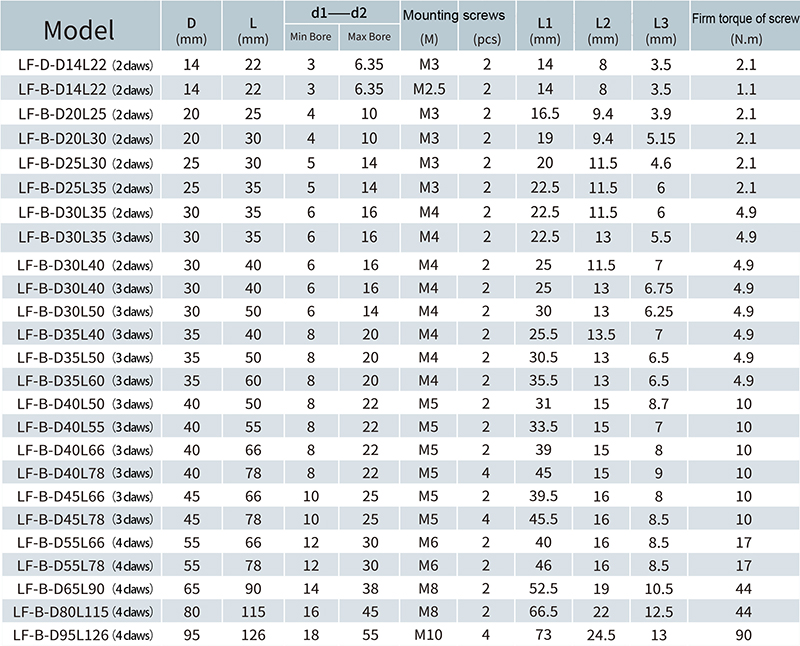

MODEL


型号

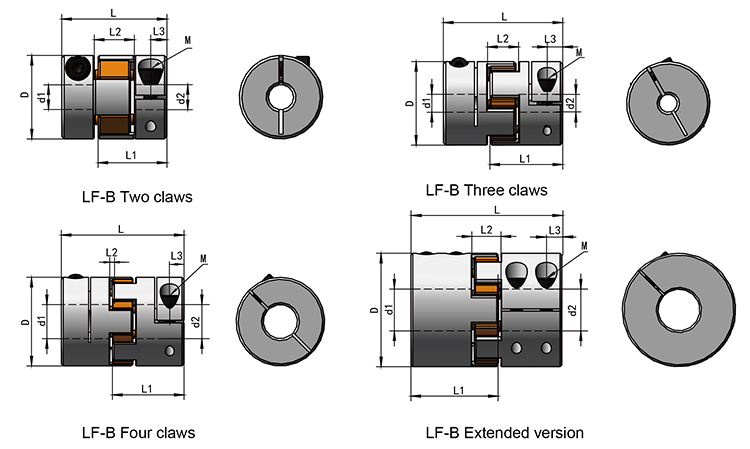

Dimension


尺寸

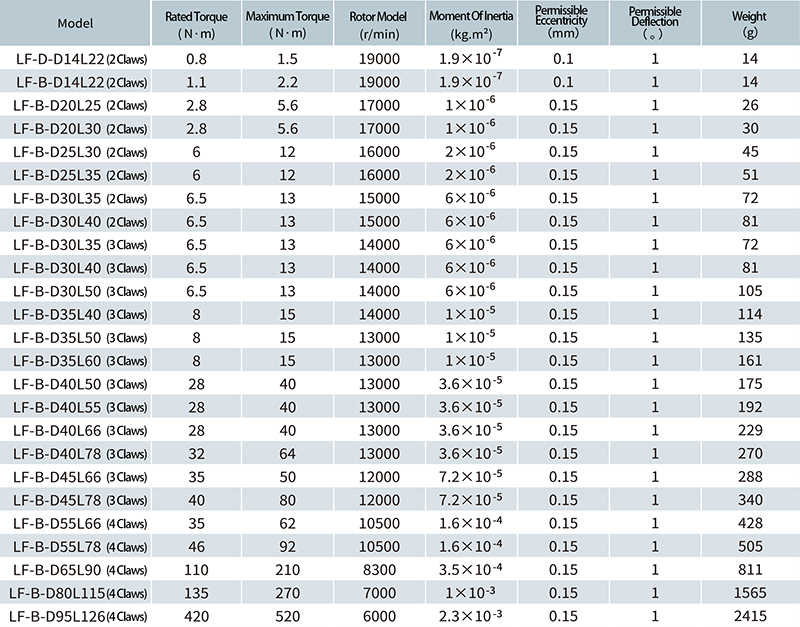

Technical Parameters


参数


Features


详情页2主图2主图3主图4详情页3


Packaging & Shipping


说明板块_02
