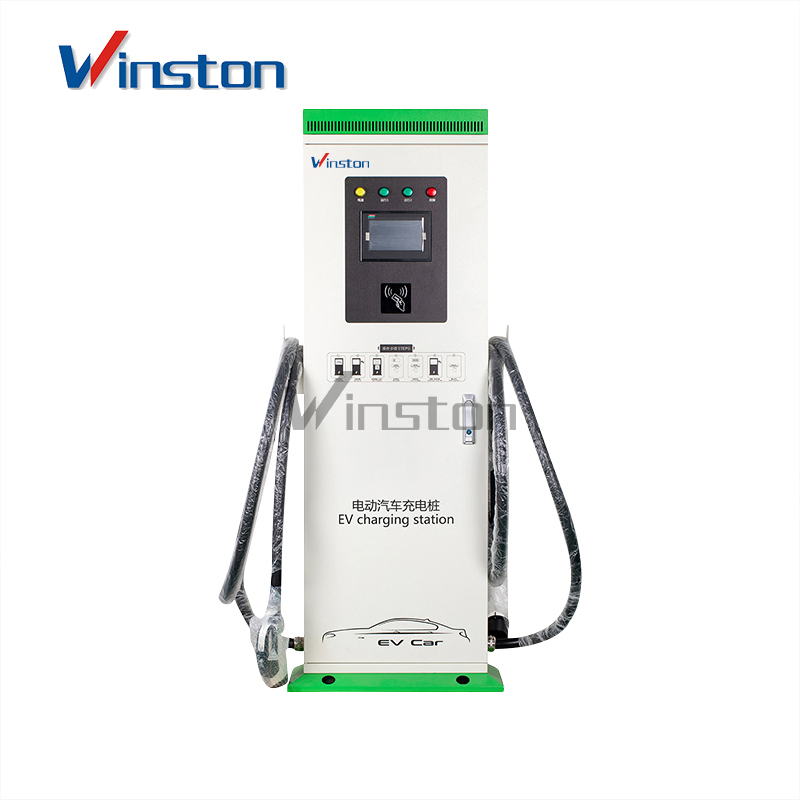

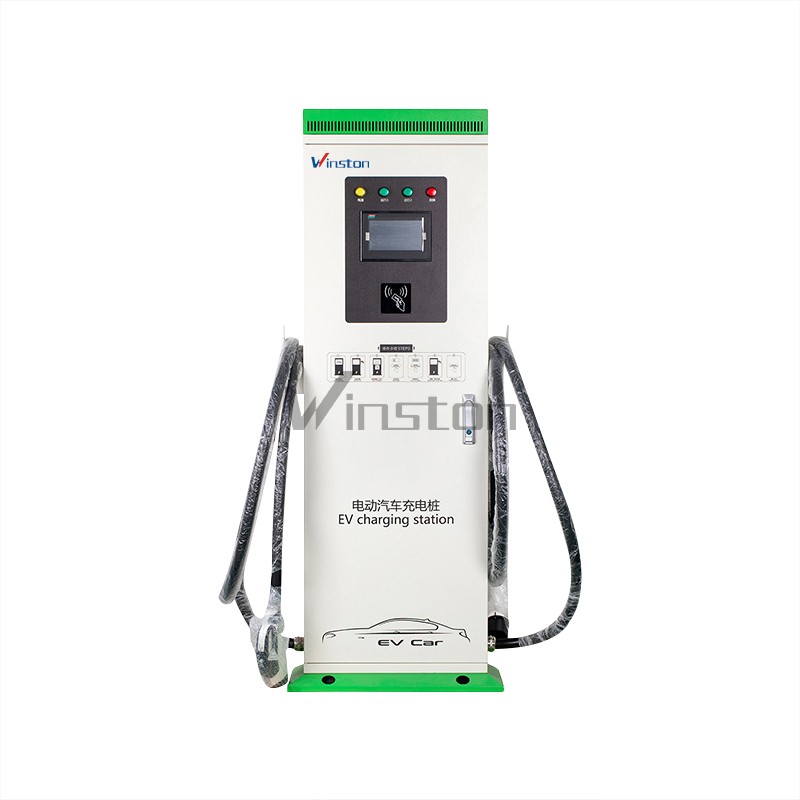

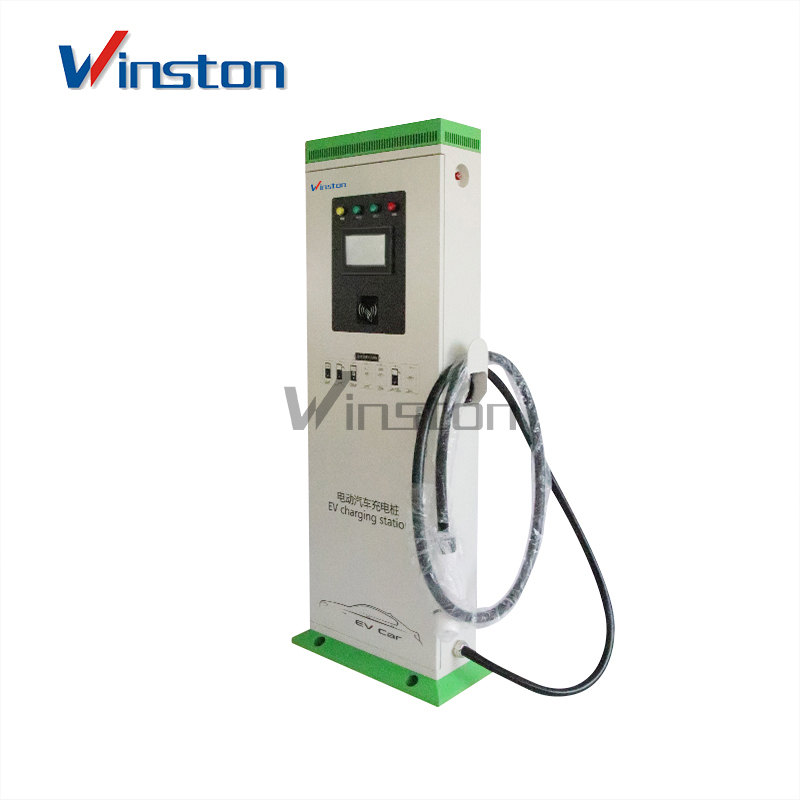

WST-DC-30KW
winston
Scope Of Application
The integrated DC charging station is suitable for urban public charging stations (buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, etc.) urban public charging stations (private cars, commuter cars, buses) Various parking lots in urban residential quarters, shopping plazas power business places, elc, inter-city expressway charging stations and other occeasions that require DC fast charging, especially suitable for limited space Rapid deployment.
Technical Parameters
| Product number | WST-DC-30KW | |||
| Detailed specifications | ated power | 30KW | ||
| Charging equipment | User Interface | 7 inch LCD color display touch screen | ||
| Installation method | Floor-standing | |||
| Wiring method | Bottom in and bottom out | |||
| Equipment size | 600*200*1600 (mm) | |||
| Input voltage | AC380V±20% | |||
| Input frequency | 45-65Hz | |||
| The output voltage | 200V-500V | 200V-750V | 200V-750V(Constant power) | |
| Single gun output current range | 60A | 0-70A | 90A | |
| Cable length | 5m | |||
| Measurement accuracy | 0.5级 | |||
| Electrical indicators | Current limit protection value | ≥110% | ||
| Stabilization accuracy | ≤±0.5% | |||
| Steady flow accuracy | ≤±1% | |||
| Ripple factor | ≤±0.5% | |||
| effectiveness | ≥94.5% | |||
| Power factor | ≥0.99（above 50% load） | |||
| HMI | ≤5%（above 50% load） | |||
| feature design | Harmonic content THD | APP payment / credit card payment /scan code payment | ||
| Charging mode | Ethernet 2/3/4G (optional) | |||
| payment method | Automatically charge/select charging power/select charging amount/select charging time | |||
| Communication Interface | 7 inch LCD color display touch screen | |||
| Safe design | Executive standard | DIN70121/ISO15118/IEC61851-23.IEC61851-24 | ||
| security function | Charge gun temperature detection overvoltae protection,undervoltage protection,ovrtload protection,short circuit protection,grounding protection,over temperature protection,low temperature protection,insulation monitoring protection,reverse polarity protection,lightning protection,emergency stop protection,leakage protection | |||
| Environmental indicators | Operating temperature | -25℃～+50℃ | ||
| Working humidity | 5%～95% non-condensing frost | |||
| Working altitude | ＜3000m | |||
| Protection level | IP54 | |||
| cooling method | Forced air cooling | |||
| Noise control | ≤60dB | |||
| МТВF | 100,000 hours | |||
