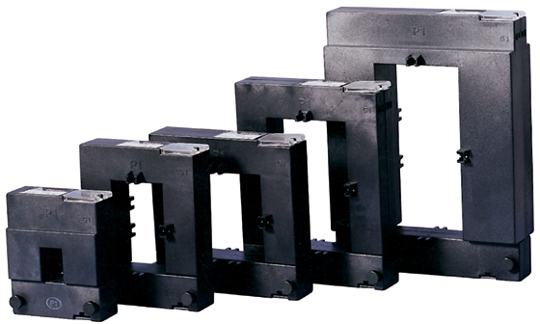

DP series
Winston
Made in China
Export standard carton box
PCS
10
3-7days
1
T/T
Outline drawing:
Dimension of case:
| Model | A | B | C | D | E | F | G | H | I | Weight(kg) |
| DP-23 | 30 | 30 | 51 | 89 | 111 | 34 | 47 | 40 | 32 | 0.75 |
| DP-58 | 50 | 80 | 78 | 114 | 145 | 32 | 32 | 32 | 33 | 0.9 |
| DP-88 | 80 | 80 | 108 | 144 | 145 | 32 | 32 | 32 | 33 | 1.05 |
| DP-812 | 80 | 120 | 108 | 144 | 185 | 32 | 32 | 33 | 33 | 1.25 |
| DP-816 | 80 | 120 | 120 | 184 | 245 | 52 | 47 | 52 | 38 | 4.3 |
Technical parameter:
| Model | Nominal current ratio | Burden VA | |
| Class:0,5 | Class:1 | ||
| VA | |||
| DP-23 | 100-400 | 0~2.5 | 0~6 |
| DP-58 | 250-1000 | 1.5~5 | 2~10 |
| DP-88 | 250-1000 | 1.5~5 | 3.75~20 |
| DP-812 | 500-1500 | 2.5~7.5 | 12~30 |
| DP-816 | 1000-5000 | 10~20 | 20~30 |
