D52-2042
Winston
Products Description
D52-2042 type digital AC voltage current dual display meter is the same meter to display the
measured AC voltage and current,built-in isolation transformer power supply (extremely strong
anti-jamming) meter randomly comes with 100A precision small transformer, really effective
value measurement, high measurement accuracy!
Features
Display the AC voltage and current simultaneously by LED digital tube.
Including one independent small precise current transformer with a rear cover.
Wide measurement voltage and current range.
No need to add power supply and AC transformer.
Widely used in audio amplifier, power distribution box, distribution cabinet, regulators,
teaching aids,household small distribution box, etc.
Technical Parameters
| Model | D52-2042 |
| Power supply | AC80-300VAC for 110V 220V, 200-450V for 380V; AC0.1-99.9A |
| Measuring speed | About 2times/s |
| CT | External 100A |
| Display | LED |
| Color | Red,Green |
| Accuracy | 1％±2 words |
| Power consumption | <0.2VA |
| Size | 79*43*48mm(L*W*H) |
| Install size | 76*39mm |

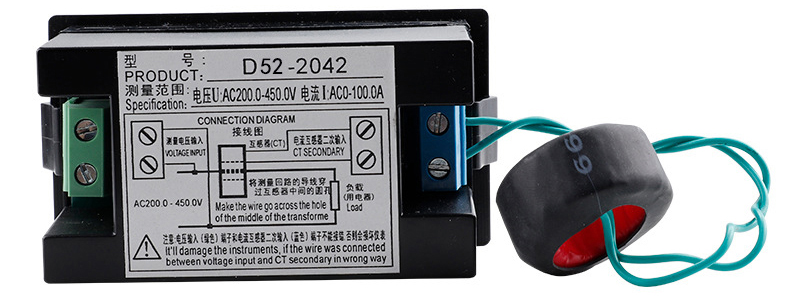

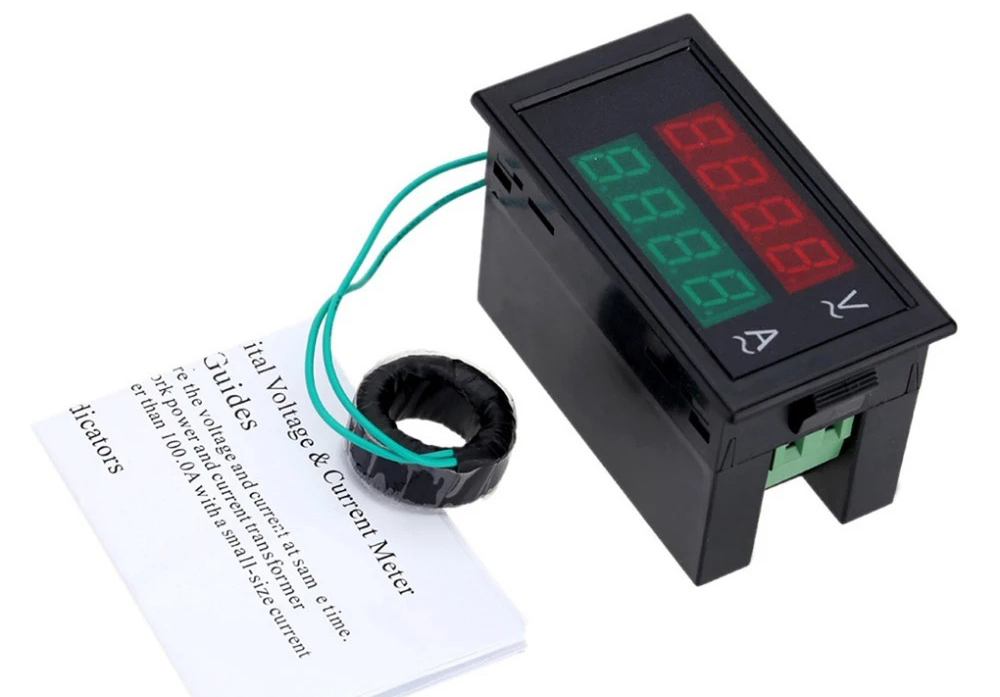

Details Images
Packaging & Shipping
