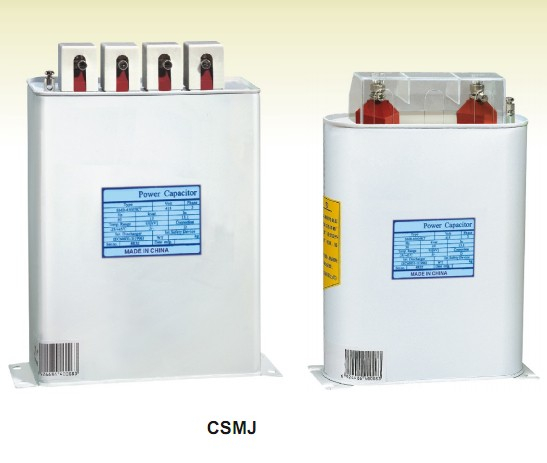

Capacitor for Ultraviolet Lamp

 General Description

 CSMJ series Ultraviolet Lamp Capacitor is a new product developed by our company in recen t years. For the capacitor,power transformer secondary and ultraviolet lamp make up of series loop while working, the requirements of the capacito r are very high in ability of withstanding harmonic wave.

 Model meanings



 Main Technical Indexes

 1 Type: CSMJ2.0-16-1
 2 Rated Voltage: 2.0kV
 3 Rated capacitance: 16 F
 4 Dimensions of the case: 180 95 230mm (L W H)
 5 The dimensions of installation holes are equal to those of the case of Btype of BSMJ Series produced by our company.

 Note: The product has four main connecting terminals and one ground terminal of the case. According to different requirement,they can be switched on with three capacitors or part of them C1=10 F, C2=3 F, C3=2 F. The following picture shows the internal connection of the product.


 Main Technical Indexes

 1 Type: CSMJ2.0-15-1
 2 Rated Voltage: 2.0kV
 3 Rated capacitance: 10 F+3 F+2 F=15 F
 4 Dimensions of the case: 180 95 230mm (L W H)
 5 The dimensions of installation holes are equal to t hose of the case of B type of BSMJ Series produced by our company.

 Overall Dimension
