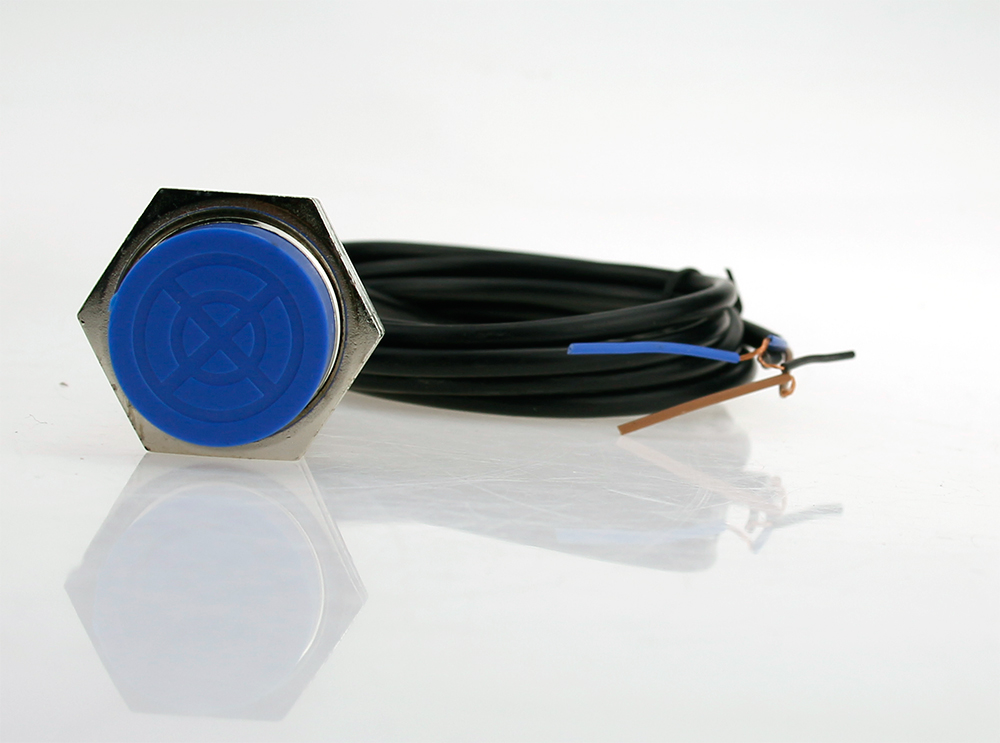

LM30
Winston
LM24 AC-DC Universal approach switch
Application
Various location detection of machinery process center
Bottle lid detection
Stopper detection of grinding machine
Arm location detection of robot
Overall dimensions
LM24 AC-DC Universal approach switch
Application
Various location detection of machinery process center
Bottle lid detection
Stopper detection of grinding machine
Arm location detection of robot
Overall dimensions
LM30 | Flush | Detection Distance | 10mm | ||
DC6-36V | NPN | NO | LM30-3010NA | ||
NC | LM30-3010NB | ||||
NO+NC | LM30-3010NC | ||||
PNP | NO | LM30-3010PA | |||
NC | LM30-3010PB | ||||
NO+NC | LM30-3010PC | ||||
Two Wire System | NO | LM30-3010LA | |||
NC | LM30-3010LB | ||||
AC90-250V | Controllable Silicon | NO | LM30-3010A | ||
NC | LM30-3010B | ||||
NO/NC | |||||
Relay output | |||||
Non-Flush | Detection Distance | 15mm | |||
DC6-36V | NPN | NO | LM30-3015NA | ||
NC | LM30-3015NB | ||||
NO+NC | LM30-3015NC | ||||
PNP | NO | LM30-3015PA | |||
NC | LM30-3015PB | ||||
NO+NC | LM30-3015PC | ||||
Two Wire System | NO | LM30-3015LA | |||
NC | LM30-3015LB | ||||
AC90-250V | Controllable Silicon | NO | LM30-2015A | ||
NC | LM30-2015B | ||||
NO/NC | |||||
Relay output | |||||
LM30 | Flush | Detection Distance | 10mm | ||
DC6-36V | NPN | NO | LM30-3010NA | ||
NC | LM30-3010NB | ||||
NO+NC | LM30-3010NC | ||||
PNP | NO | LM30-3010PA | |||
NC | LM30-3010PB | ||||
NO+NC | LM30-3010PC | ||||
Two Wire System | NO | LM30-3010LA | |||
NC | LM30-3010LB | ||||
AC90-250V | Controllable Silicon | NO | LM30-3010A | ||
NC | LM30-3010B | ||||
NO/NC | |||||
Relay output | |||||
Non-Flush | Detection Distance | 15mm | |||
DC6-36V | NPN | NO | LM30-3015NA | ||
NC | LM30-3015NB | ||||
NO+NC | LM30-3015NC | ||||
PNP | NO | LM30-3015PA | |||
NC | LM30-3015PB | ||||
NO+NC | LM30-3015PC | ||||
Two Wire System | NO | LM30-3015LA | |||
NC | LM30-3015LB | ||||
AC90-250V | Controllable Silicon | NO | LM30-2015A | ||
NC | LM30-2015B | ||||
NO/NC | |||||
Relay output | |||||
