AD16-22AM 22mm 0 - 100A Led light Digital Current Meter Ammeter Indicator

Availability:
Quantity:
  • AD16-22AM

  • winston

AD16-22AM 22mm 0 - 100A Led light Digital Current Meter Ammeter Indicator

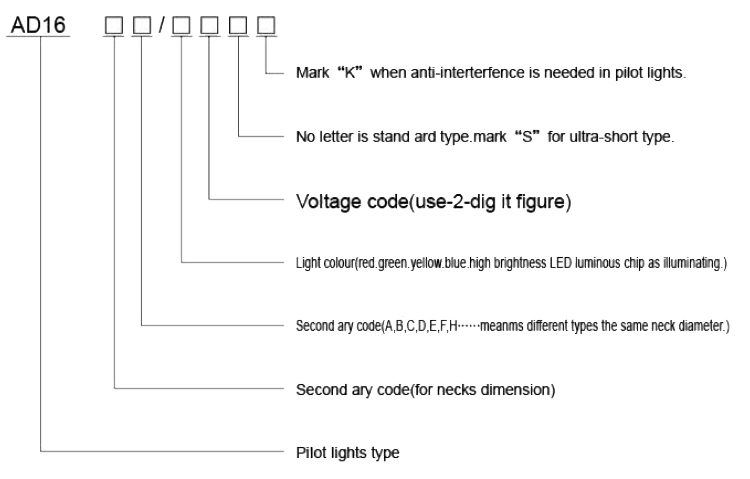

Modeland Explanatiln


MODEL

Working Condition


1. ambient temperature:-25℃-+55℃,

2. relative humidity:≤98%,

3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g

4. pollution degree is 3, installation g roup is III

5. "TH" marked can work at damp-heat environment.


Technical Data


1.Power frequency withstand voltage:2.5kv/1min(effective AC value),

2.insulation resistance:≥ 22MΩ,

3.Allowable voltage fluctuation: ± 20%,

4.Continuous operating life: ≥30000H.

5.Brigtnss: ≥100cd/m2,

6.CTI≥600,

7.Protection degree of the head IP65, IP67 is available on request,

8.Applying frequency:AC50-60Hz.


Product Description


Name Type Color Lamp voltage

Indicator

Ammeter

AD16-22AM

   Red

   White

   Green

    Yellow

   Blue

0~100A

Max AC380

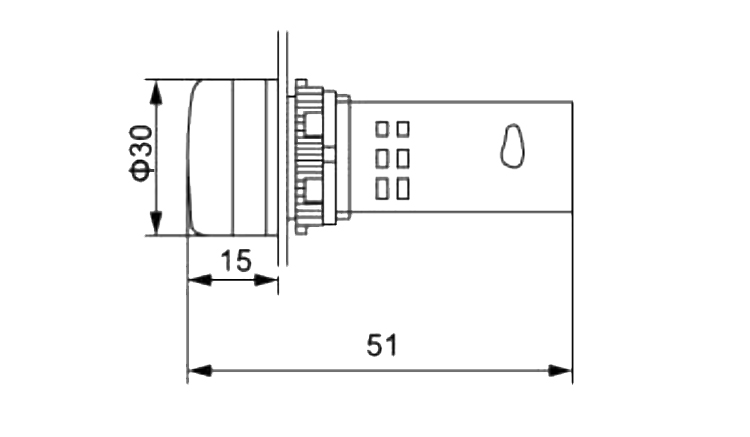

Dimension


size Y

Other products

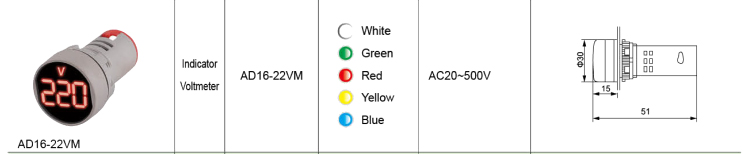

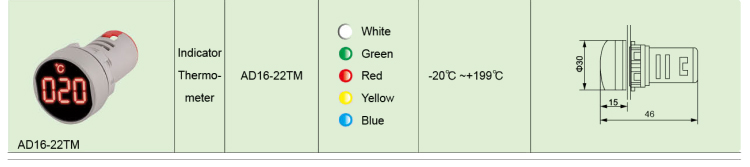

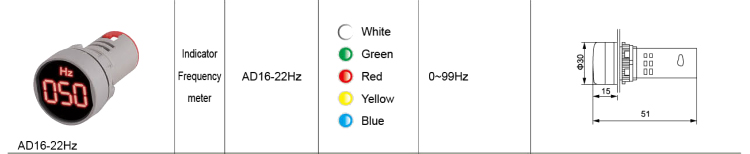

new-catalogue-5_01new-catalogue-5_02new-catalogue-5_04new-catalogue-5_05
