56PO
Winston
Made in China
Export standard carton box
PCS
10
3-7days
1
T/T

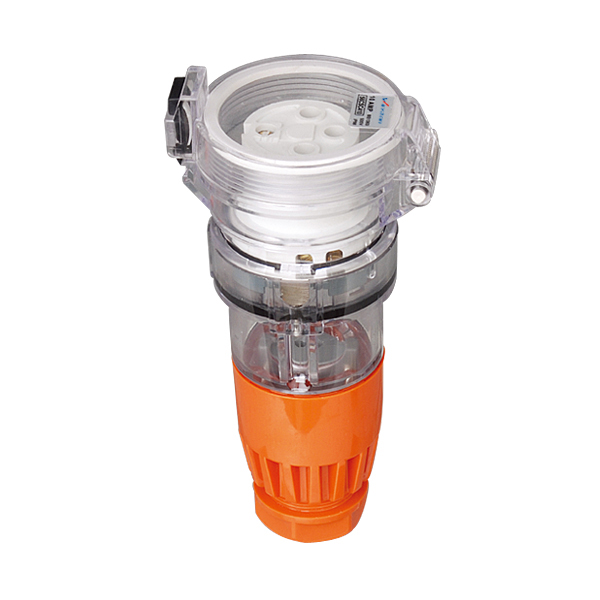

56PO three phase pendant outlets are a hanging version of our 56CSC connectors. All have impact resistant UV stabilised mouldings.
56PO three phase pendant outlets are a hanging version of our 56CSC connectors. All have impact resistant UV stabilised mouldings.
| Cata. No. | Ith (A) | Ui (V) | No. of sockets | Conductor term. size in mm2 | Cable nominal diameter in mm2 | IP rating | Matching plug straight | Matching plug angle | Gland nut thread | ||
| Min | Max | Min | Max | ||||||||
| 56PO410 | 10 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P410 | 56PA410 | 23mm |
| 56PO420 | 20 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P420 | 56PA420 | 23mm |
| 56PO432 | 32 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P432 | 56PA432 | 37mm |
| 56PO440 | 40 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P440 | 56PA440 | 37mm |
| 56PO450 | 50 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P450 | 56PA450 | 37mm |
| 56PO510 | 10 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P510 | 56PA510 | 37mm |
| 56PO520 | 20 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P520 | 56PA520 | 37mm |
| 56PO532 | 32 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P532 | 56PA532 | 37mm |
| 56PO540 | 40 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P540 | 56PA540 | 37mm |
| 56PO550 | 50 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P550 | 56PA550 | 37mm |
| Cata. No. | Ith (A) | Ui (V) | No. of sockets | Conductor term. size in mm2 | Cable nominal diameter in mm2 | IP rating | Matching plug straight | Matching plug angle | Gland nut thread | ||
| Min | Max | Min | Max | ||||||||
| 56PO410 | 10 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P410 | 56PA410 | 23mm |
| 56PO420 | 20 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P420 | 56PA420 | 23mm |
| 56PO432 | 32 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P432 | 56PA432 | 37mm |
| 56PO440 | 40 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P440 | 56PA440 | 37mm |
| 56PO450 | 50 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P450 | 56PA450 | 37mm |
| 56PO510 | 10 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P510 | 56PA510 | 37mm |
| 56PO520 | 20 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P520 | 56PA520 | 37mm |
| 56PO532 | 32 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P532 | 56PA532 | 37mm |
| 56PO540 | 40 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P540 | 56PA540 | 37mm |
| 56PO550 | 50 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P550 | 56PA550 | 37mm |
