industrial Use D-120W AC DC Open Frame LED Power Source

Availability:
Quantity:
  • D-120W

  • Winston

Technic data



1.Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370 VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.



2.Specification




                          MODEL

D-120A

D-120B

D-120C

D-120F

DC VOLTAGE

5V

12V

5V

24V

12V

-12V

12V

24V

RATED CURRENT

0~12A

0~5A

0~6A

0~4A

1~5A

0.5~5A

1~5A

0.4~2.5A

RIPPLE&NOISE

60mVp-p

120mVp-p

60mVp-p

120mVp-p

120mVp-p

120mVp-p

120mVp-p

120mVp-p

EFFICIENCY

78%

76%

80%

80%

ADJUSTABLE RANGE FOR DC VOLTAGE

±10%

±5%

±10%

±5%

±10%

±5%

±10%

±5%

LINE REGULATION

±0.5%

±1%

±0.5%

±1%

±1%

±1%

±1%

±1%

LOAD REGULATION

±0.5%

±5%

±0.5%

±6%

±0.5%

±5%

±0.5%

±8%

SETUP,RISE,HOLD UP TIME

200ms,50ms,20ms/230VAC at full load

VOLTAGE RANGE

90-132VAC/180-264VDC by switch 254-370VDC

FREQUENCY RANGE

47-63HZ

IMPACT CURRENT

Cold start current 30A/115VAC 60A/230VAC

OVERLOAD PROTECTION

105-150% cut offtheoutput, automatic recovery

OVER VOLTAGE PROTECTION
CH1:115-135% shut down O/P voltage ,re-power on to recover.

WORKING TEMP

-10~ +50°C

WITHSTAND
VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION
RESISTANCE

I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms

DIMENSION

199*110*50mm

WEIGHT

0.9kg

PACKING
42*31.5*26cm/20pcs/16kg

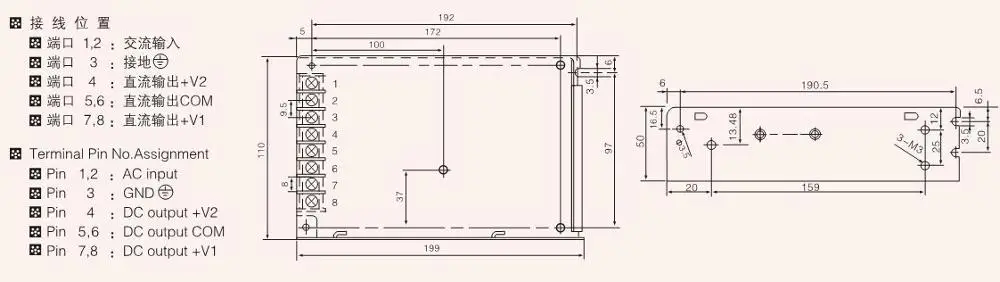

Dimension
