Winston T-30W Triple Output Switch Power Supply SMPS With CE

Quantity:
  • T-30W
  • Winston
Technic data



1.Description

1) High Efficiency, High Reliability, Low Cost
2) AC Input Range:90-132VAC/180-264VAC by switch 254-370VDC
3) 100% Full Load Burn-In Test
4) Protections: Short Circuit / Over Load/Over Voltage
5) LED Indicator For Power On
6) Cooling By Free Air Convection
7) Approvals: CE RoHS
8) 2 Year Warranty.



2.Specification




 MODEL

T-30A

T-30B

T-30C

T-30D

DC VOLTAGE

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

RATED CURRENT

0~
3A

0~
1A

0~
0.5A

0~
3A

0~1A

0~
0.5A

0.5~
3A

0~
0.5A
0.1-0.5A 0.5~
3A
0.1~
0.5A
0.1~
0.5A

RIPPLE&NOISE

50m
Vp-p

100m
Vp-p

50m
Vp-p

50m
Vp-p

100m
Vp-p

100m
Vp-p

50m
Vp-p

100m
Vp-p

100m
Vp-p

50m
Vp-p

100m
Vp-p

150m
Vp-p

EFFICIENCY

70%

72%

72%

72%
ADJUSTABLE
RANGE FOR DC VOLTAGE

±10%

±5%

±5%

±10%

±5%

±5%

±10%

±5%

±5%

±10%

±5%

±5%

LINE REGULATION

±0.5%

±1%

±1%

±0.5%

±0.5%

±1%

±0.5%

±1%

±1%

±0.5%

±1%

±1%

LOAD REGULATION

±0.5%

±5%

±5%

±0.5%

±5%

±5%

±1%

±4%

±4%

±1%

±4%

±4%

SETUP,RISE,HOLD
UP TIME

200ms,100ms,30ms/230VAC at full load

VOLTAGE
RANGE

90-132VAC/180-264VDC by switch 254-370VDC

FREQUENCY
RANGE

47-63HZ

IMPACT CURRENT

Cold start current 18A/115VAC 36A/230VAC

OVERLOAD
PROTECTION

105-150% cut offtheoutput, automatic recovery

OVER VOLTAGE PROTECTION
CH1:115-135% shut down O/P voltage ,re-power on to recover.

WORKING TEMP

-10~ +50°C

WITHSTAND
VOLTAGE

I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

ISOLATION
RESISTANCE

I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms

DIMENSION

129*98*38mm

WEIGHT

0.4kg

PACKING
43*32.5*24cm/45pcs18kg

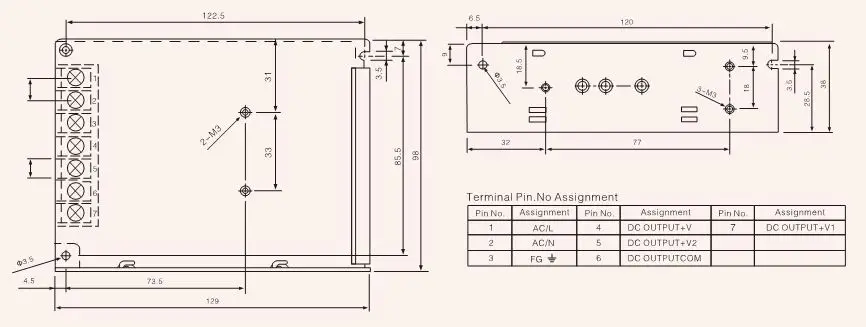

Dimension
