Winston NES - 350W 5V to 110V dc single output 350w industrial power supply

Quantity:
  • NES-350W
  • Winston






MODEL NES-350-5 NES-350-12 NES-350-15 NES-350-24 NES-350-27 NES-350-36 NES-350-48 NES-350-60 NES-350-70 NES-350-110
DC Voltage 5V 12V 15V 24V 27V 36V 48V 60V 70V 110V
Rated current 60A 29A 23.2A 14.6A 13A 9.7A 7.3A 5.83A 5A 3.18A
Ware& Noise 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p 240mVp-p 240mVp-p 240mVp-p 240mVp-p
Voltage ADJ. Range ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10% ±10%
Line Regulation ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±1% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Efficiency  78% 83% 84% 87% 87% 87% 87% 87% 87% 87%
Input wire range 90-132VAC/180-264VAC By switch 254-370VDC 47-63Hz
Impact current  Cold start  40A/115VAC 60A/230VAC
Overload protection 105%~160% cut off the output,automatic recover
Over voltage protection 115%~135% shut down O/P Voltage,re-power on to recover.
Setup,rise,hold up time 800ms,60ms,50ms/230vac at full load
Safety Standards Design refer to UL1012
Withstand voltage I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1 minute
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
Working Temp. -10 ~ +50ºC
WEIGHT 1KG
DIMENSION 215*115*50mm (L*W*H)
PACKING 48*31.5*26CM/20PCS/20KG

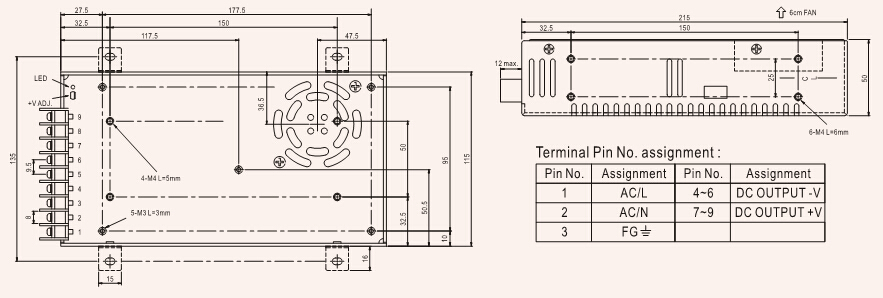

Dimension:

NES-350 接线图

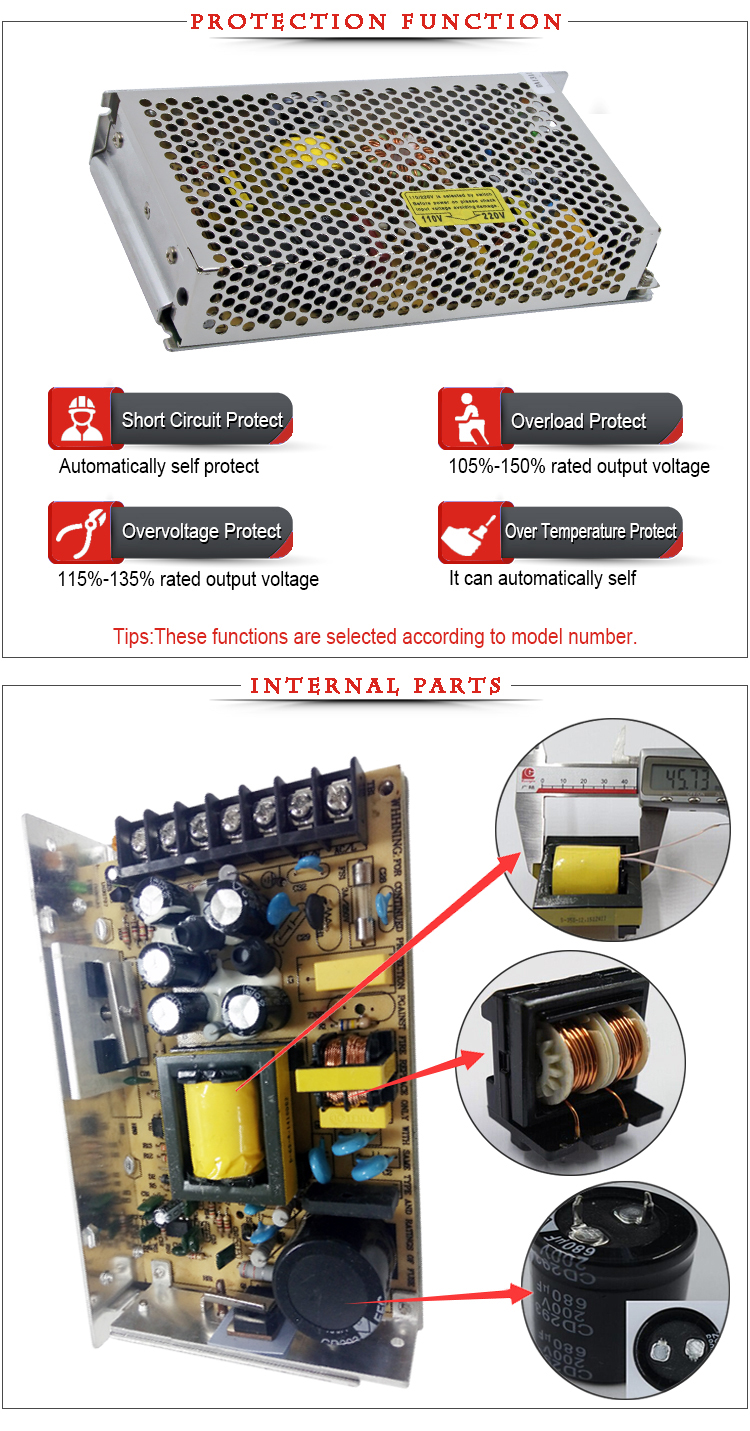

Product Description

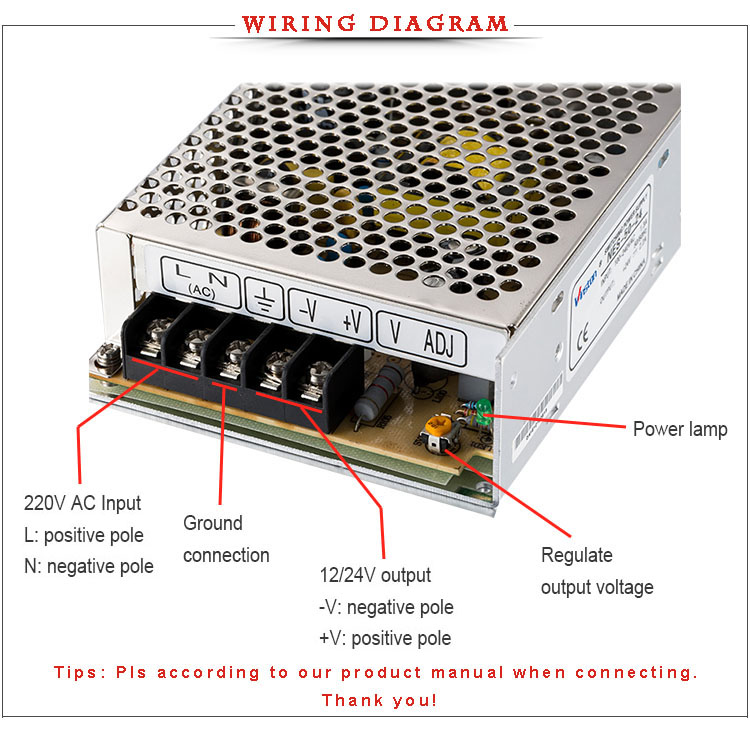

nes wiring diagram.jpg
